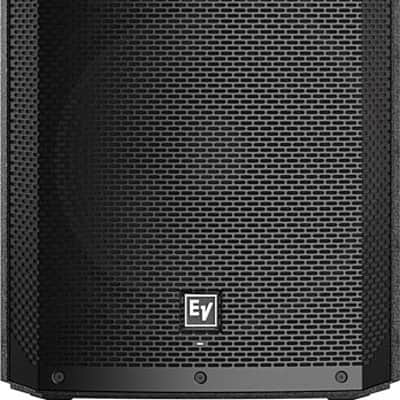

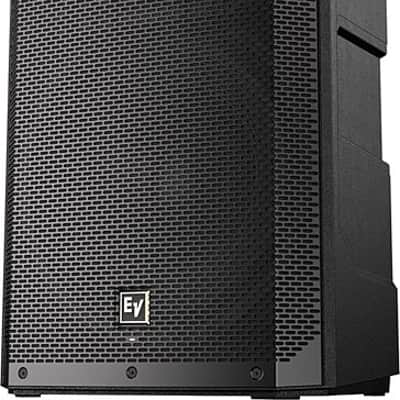

ELECTRO-VOICE ELX 200-15P

Power meets portability in this 41.7-pound, 1200-watt 15" PA speaker. Shape your sound via Bluetooth with Electro-Voice's customizable QuickSmartDSP presets.

Part of the ELX200 series, the Electro-Voice ELX200-15P powered PA speaker offers professional Electro-Voice audio quality, precision control, and robust, EV-engineered components in an ultra-lightweight package -- a truly potent blend of performance and portability.

Features:Wireless control and monitoring via the Bluetooth QuickSmartMobile app
- Control your sound while in front of your system. Quickly configure up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions.

Perfect for both portable and installed applications
- Next-generation enclosures offer a step up in both styling and build quality. Full-range models feature lightweight, compact composite enclosures with internal reinforcement, designed to minimize resonance and increase rigidity and strength. With the lightest 18-inch wood powered sub on the market, and a stunning 10-inch top / 12-inch sub compact combo available to serve smaller venues, there are options available for every application. Professional-grade hardware includes three M10 threaded suspension points for forged eyebolts, integrated pole-mounts, and our proven three-handle design for easy lifting.
Heavyweight performance in a lightweight package
Though ELX200 is easy to carry, its tough construction and components ensure legendary EV durability and sound quality, night after night. System reliability is verified with over 500 hours of abuse and endurance testing - far above and beyond industry norms. Super-efficient Class-D power amplifiers deliver distortion-free maximum SPLs utilizing high-sensitivity transducers - all designed and engineered by Electro-Voice.

QuickSmartDSP provides best-in-class processing via EV's signature single-knob user interface with LCD
Easy setup via four presets (Music, Live, Speech, Club), three-band EQ, five user-programmable presets, sub/top system-match crossovers, input level control and metering, and master volume control to optimize gain structure.

Electro-Voice-patented SST (Signal Synchronized Transducer) waveguide design combines a more compact footprint with enhanced acoustic performance
The design allows for a larger waveguide, which is placed forward in the enclosure to time-align the woofer and the tweeter, providing exceptionally precise and consistent coverage -- all with deeper, tighter bass response.WARNING: Cancer and Reproductive Harm - .

Specs-Woofer Size: 15 inch

Available Color: Black

Connector Type: (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR

Coverage (Nominal -6 dB) H: 90 degrees
Coverage (Nominal -6 dB) V: 60 degrees

Crossover Frequency: 1600 Hz

Enclosure Material: Polypropylene

Family: ELX200

Frequency Range (-10 dB): 48 Hz - 19 kHz
Frequency Response (-3 dB): 55 Hz - 16 kHz Hz

Grill: 18 AWG steel with powdercoat

HF Transducer: DH-1C 1-inch titanium compression driver
LF Transducer: EVS-15M 381 mm (15 in)

Max. SPL/1m (calc): 132 dB:
Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.8A

Power Rating: 1200 W
Powered or Passive: Powered

Speaker Type: Full-Range

Suspension: (3) M10 suspension points

Weight Net: 41.7 pounds (18.9 kg)
Shipping Weight: 48 pounds (21.8 kg)
Width: 16.7 inches (423 mm)
Height: 28 inches (710 mm)
Depth: 15.2 inches (384 mm)Dimensions and Weight in PackagingBlack, Single SpeakerShipping Weight: 49.25 lbsShipping Dimensions: 30 x 20 x 18 inManufacturer Part Number (MPN): F.01U.326.041Black, PairShipping
