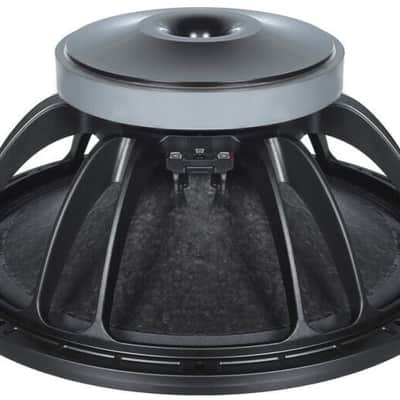

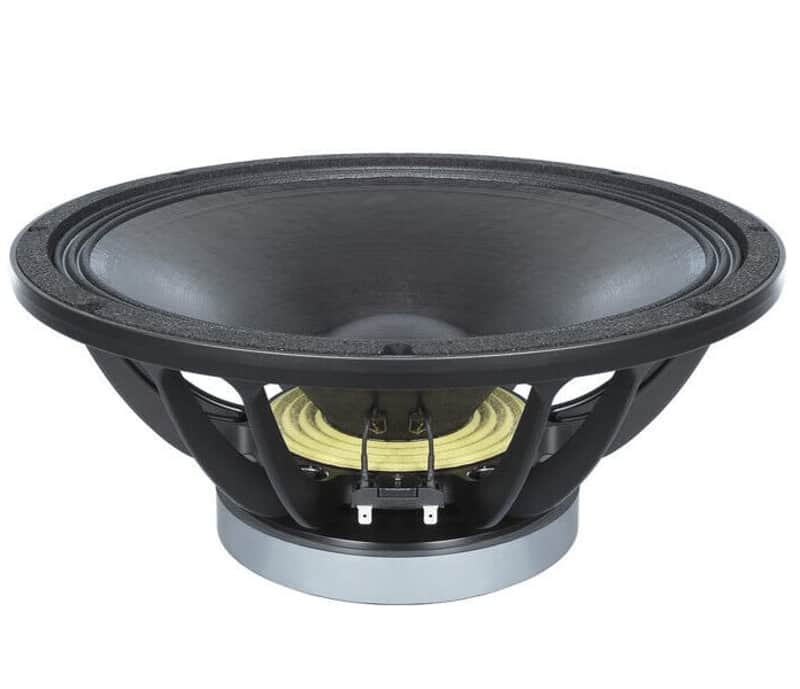

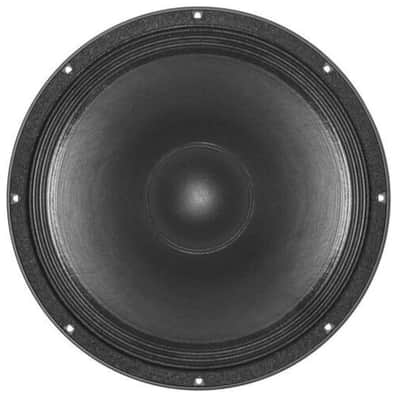

B&C 15FW76 Pro 15" Woofer 1000 Watts Mid-Bass Speaker 8-Ohms ( 40 - 2000 Hz )

B&C 15FW76 15" Woofer 1000 Watts Mid-Bass 8-Ohms Speaker

Features

• 1000 W continuous program power capacity
• 76 mm (3 in) copper voice coil
• 40 - 2000 Hz response
• 100 dB sensitivity
• Aluminium demodulating ring allows a very low distortion figure
• Double silicone spider and ventilated voice coil gap

Specifications

• Nominal Diameter: 380 mm (15.0 in)
• Nominal Impedance: 8 Ω
• Minimum Impedance: 6.4 Ω
• Nominal Power Handling1: 500 W
• Continuous power handling2: 1000 W
• Sensitivity (1W/1m)3: 100.0 dB
• Frequency Range: 40 - 2000 Hz
• Voice Coil Diameter: 76 mm (3.0 in)
• Winding Material: Copper
• Former Material: Glass Fibre
• Winding Depth: 19.0 mm (0.75 in)
• Magnetic Gap Depth: 11.0 mm (0.43 in)
• Flux Density: 1.25 T

Design

• Surround Shape: Triple Roll
• Cone Shape: Exponential
• Magnet Material: Ferrite
• Spider: Double Silicone
• Pole Design: T-Pole
• Woofer Cone Treatment: WP Waterproof Front Side
• Recommended Enclosure: 80.0 dm3 (2.82 ft3)
• Recommended Tuning: 50 Hz

Parameters4

• Resonance Frequency: 40 Hz
• Re: 5.1 Ω
• Qes: 0.22
• Qms: 5.1
• Qts: 0.21
• Vas: 138.0 dm3 (4.9 ft3)
• Sd: 855.0 cm2 (132.5 in2)
• η₀: 3.9 %
• Xmax: ± 7.0 mm
• Xvar: ± 8.0 mm
• Mms: 117.0 g
• Bl: 26.2 Txm
• Le: 1.4 mH
• EBP: 181 Hz

Mounting and Shipping Info

• Overall Diameter: 393 mm (15.5 in)
• Bolt Circle Diameter: 374 mm (14.7 in)
• Baffle Cutout Diameter: 354.0 mm (13.9 in)
• Depth: 177 mm (6.97 in)
• Flange and Gasket Thickness: 14 mm (0.55 in)
• Air Volume Occupied by Driver: 5.5 dm3 (0.19 ft3)
• Net Weight: 9.2 kg (20.2 lb)
• Shipping Units: 1
• Shipping Weight: 10.5 kg (23.15 lb)
• Shipping Box: 425x425x224 mm (16.73x16.73x8.82 in)

Service Kit

• Recone kit: RCK15FW768
