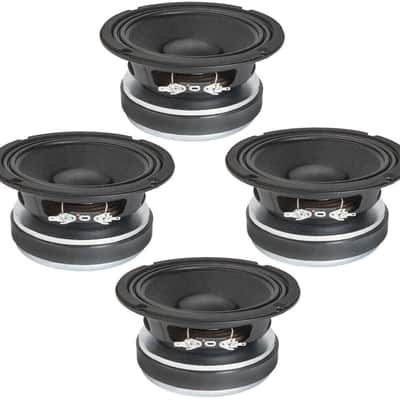

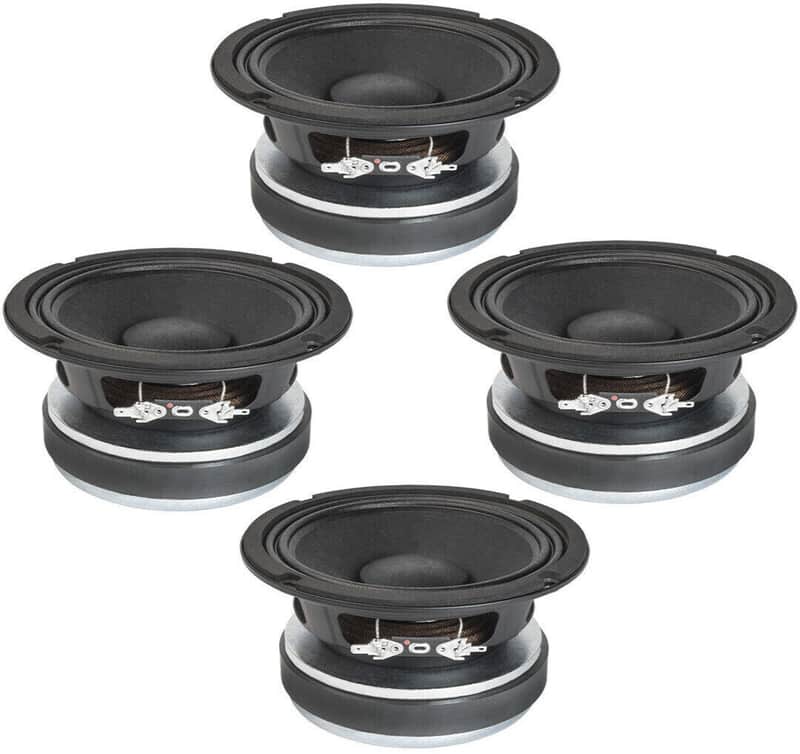

4x FAITAL PRO 6FE300 6.5" Mid-Bass / Midrange Speaker 350W Waterproof Cone 8-Ohm

FAITAL PRO 6FE300 6.5" Mid-Bass / Mid-Range Speaker 350 Watts 8-Ohms WATERPROOF CONE

• THE FAITAL PRO 6FE300 6.5" MID-BASS SPEAKER CAN HANDLE 175 WATTS AES & 350 WATTS PROGRAM POWER

• FREQUENCY RANGE FROM 90HZ TO 4.0KHZ, EFFICIENCY OF 94DB SPL & WEIGHS ONLY 6.2 LBS. THANKS

• 3.9MM XMAX FOR A TIGHT BASS SOUND WITH CLEAN NATURAL SOUNDING MIDS

• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURERANGE FROM -40C TO +120C

• WORKS GREAT FOR MID-BASS OR MIDRANGE IN 2 OR 3-WAY QUALITY SPEAKER SYSTEMS

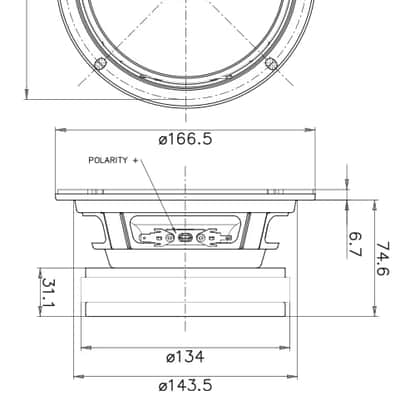

Nominal Specifications

Nominal Diameter

• 160 mm (6 in)

Overall Diameter

• 166.5 mm (6.56 in)

Bolt Circle Diameter

• 155 mm (6.10 in)

Baffle Cutout Diameter

• 146 mm (5.75 in)

Depth

• 81 mm (3.19 in)

Flange and Gasket Thickness

• 7 mm (0.28 in)

Net Weight

• 2.8 kg (6.2 lb)

Shipping Box
(Single Carton Box)

• 190 x 185 x 103 mm
  (7.48 x 7.28 x 4.05 in)

Shipping Weight

• 3 kg (6.6 lb)

Technical Parameters

Nominal Impedance

• 8 Ohm

Minimum Impedance

• 6.5 Ohm

AES Power Handling (1)

• 175 W

Maximum Power Handling (2)

• 350 W

Sensitivity (1W/1m)

• 94 dB

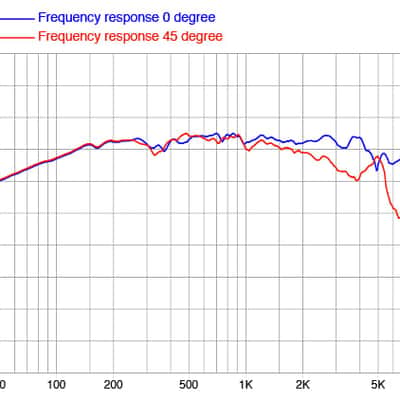

Frequency Range

• 90÷4000 Hz

Voice Coil Diameter

• 52 mm (2.05 in)

Winding Material

• Al

Former Material

• Glass Fiber

Winding Depth

• 9.8 mm (0.39 in)

Magnetic Gap Depth

• 6 mm (0.24 in)

Flux Density

• 1.15 T

Magnet

• Ferrite Ring

Basket Material

• Steel

Demodulation

• No

Cone Surround (3)

• M-Roll

NET Air Volume filled by Loudspeaker

• 0.6 dm^3 (0.021 ft^3)

Spider Profile

• 1x constant height waves

Thiele and small parameters

Fs

• 100 Hz

Re

• 5.3 Ohm

Qes

• 0.48

Qms

• 10.5

Qts

• 0.46

Vas

• 4.7 dm^3 (0.17 ft^3)

Sd

• 138 cm^2 (21.39 in^2)

Xmax (4)

• 3.90 mm

Xdamage (5)

• 13.1 mm

Mms

• 14.2 g

Bl

• 10 N/A

Le

• 0.4 mH

Mmd

• 12.4 g

Cms

• 0.18 mm/N

Rms

• 0.8 kg/s

Eta Zero

• 0.97 %

EBP

• 208 Hz

PART NUMBER (P/N)

Faston Terminals - 8 Ohm Version

• 01604323

Notes:

• (1) 2 Hours Test According to AES 2-1984 Rev. 2003

• (2) Maximum power is defined as 3dB greater than nominal power.

• (3) Treated Polycotton

• (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)

• (5) Maximum excursion before permanent damage
