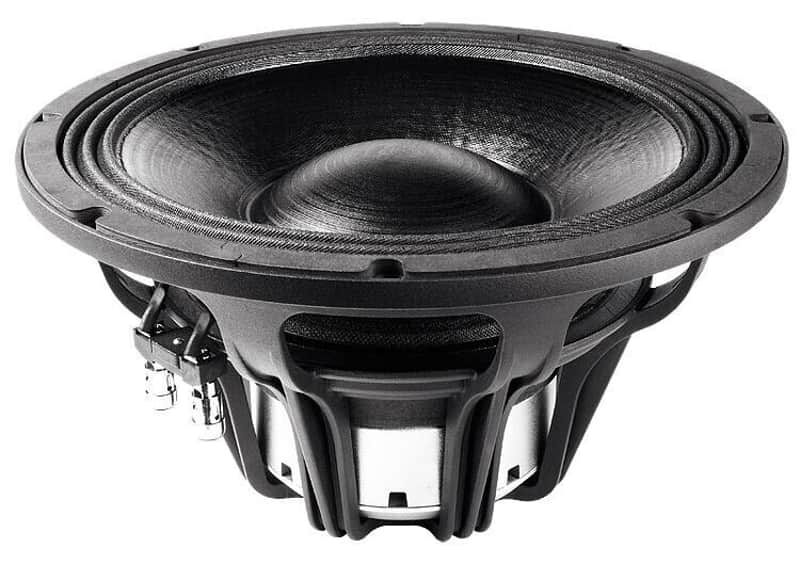

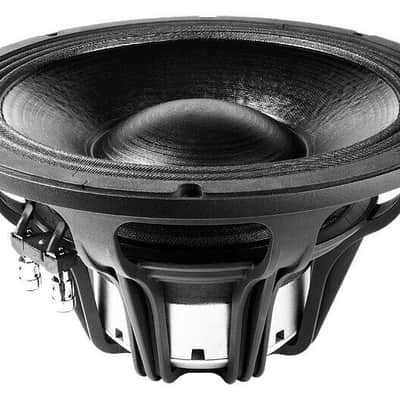

FAITAL PRO 12HP1060 12" High Power Woofer 2000 Watts Low Frequency Speaker 8-Ohm

FAITAL PRO 12HP1060 12" HIGH POWER Woofer 2000 Watts Low Frequency Speaker 8-Ohms

Nominal Specifications

Nominal Diameter

• 300 mm (12 in)

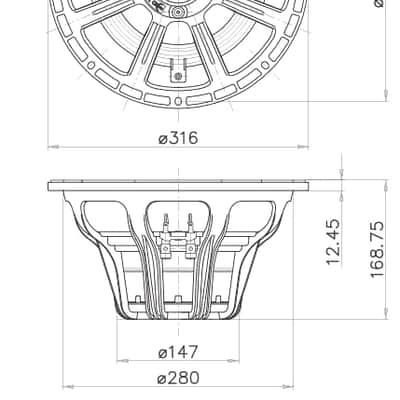

Overall Diameter

• 316 mm (12.44 in)

Bolt Circle Diameter

• 298.5 mm (11.75 in)

Baffle Cutout Diameter

• 282 mm (11.10 in)

Depth

• 168.75 mm (6.64 in)

Flange and Gasket Thickness

• 12.45 mm (0.49 in)

Net Weight

• 6.6 kg (14.6 lb)

Shipping Box
(Single Carton Box)

• 350 x 346 x 216 mm
  (13.8 x 13.6 x 8.5 in)

Shipping Weight

• 7.3 kg (16.1 lb)

Technical Parameters

Nominal Impedance

• 8 Ohm

Minimum Impedance

• 6.5 Ohm

AES Power Handling (1)

• 1000 W

Maximum Power Handling (2)

• 2000 W

Sensitivity (1W/1m)

• 95 dB

Frequency Range

• 45÷2500 Hz

Voice Coil Diameter

• 100 mm (4 in)

Winding Material

• Cu

Former Material

• Glass Fiber

Winding Depth

• 28.9 mm (1.14 in)

Magnetic Gap Depth

• 12 mm (0.47 in)

Flux Density

• 1.22 T

Magnet

• Neodymium Ring

Basket Material

• Aluminum

Demodulation

• Aluminum Ring

Cone Surround (3)

• Triple Roll

NET Air Volume filled by Loudspeaker

• 2.9 dm^3 (0.102 ft^3)

Spider Profile

• 2x non-adjacent symmetrical variable height waves

Thiele and small parameters

Fs

• 45 Hz

Re

• 5 Ohm

Qes

• 0.29

Qms

• 12.1

Qts

• 0.28

Vas

• 36.9 dm^3 (1.30 ft^3)

Sd

• 518 cm^2 (80.29 in^2)

Xmax (4)

• 12.45 mm

Xdamage (5)

• 21 mm

Mms

• 126.9 g

Bl

• 24.8 N/A

Le

• 1.38 mH

Mmd

• 113.6 g

Cms

• 0.10 mm/N

Rms

• 3.0 kg/s

Eta Zero

• 1.12 %

EBP

• 155 Hz

PART NUMBER (P/N)

Push Terminals - 8 Ohm Version

• 03004051

Notes:

• (1) 2 Hours Test According to AES 2-1984 Rev. 2003

• (2) Maximum power is defined as 3dB greater than nominal power.

• (3) Treated Polycotton

• (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)

• (5) Maximum excursion before permanent damage
