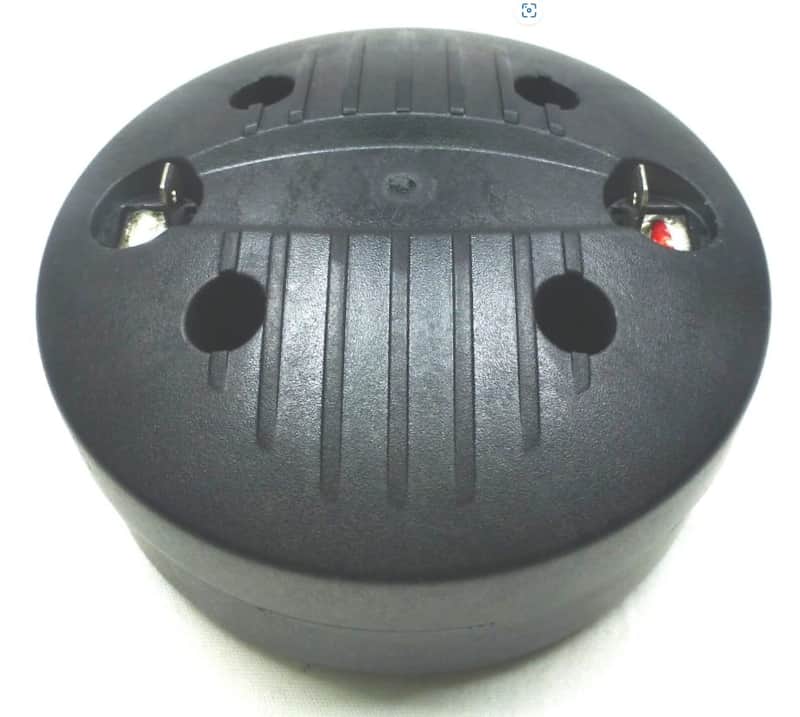

Replacement Compression Driver Yamaha YD659A00 HF Driver for DXR15, DXR12

Yamaha YD659A00 1" Compression Bolt-On Driver

for

DXR15,DXR12, 8 Ohm

Features:

• 1" exit, ferrite magnet compression driver with 1.75" edgewound copper clad aluminium voice coil
• 40W rms power handling (AES standard) and 106 dB sensitivity
• Finite Element Analysis (FEA) techniques used to optimize both magnetic and acoustic components
• One piece PETP diaphragm and surround
• Recommended 2,200 Hz 12 dB/octave crossover makes this driver suitable for both 2 way and 3 way designs.

Specifications:   • Power handling: 40 watts RMS (AES standard).   • Recommended min. crossover: 2,200 kHz, 12 dB/octave.   • VC dia: 1.4".   • Impedance: 8 ohms.   • Frequency range: 1,500-20,000 Hz.   • Sensitivity: 110 dB 1W/1m.   • Dimensions: 3.54" dia. x 2.71" depth.   • Net weight: 2.4 lbs.
