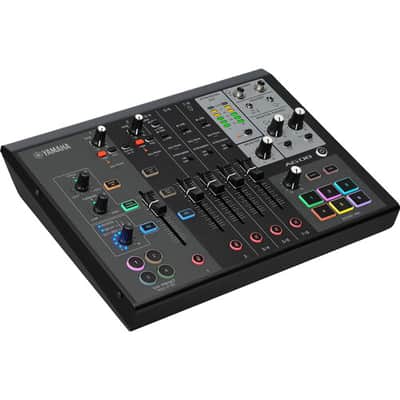

Advanced Live Streaming Mixer with Multi-Channel USB Interface

The Yamaha AG08 is a powerful, all-in-one streaming mixer designed to elevate live streaming, podcasting, music production, and content creation. Combining advanced DSP processing, multi-channel USB audio, assignable faders, and intuitive control, the AG08 gives creators everything needed to deliver professional-grade broadcasts and recordings with ease.

Yamaha AG08 Competitive Differences

• Dual condenser mic inputs with phantom power and independent headphone outputs
• Three stereo USB/LINE inputs with assignable faders for flexible routing
• Six customizable sound pads for real-time effects and audio drops
• Onboard DSP includes voice changer, amp sim, EQ, delay, ducker, compressor, and maximizer
• Dedicated AG08 Controller app for detailed effect and routing configuration
• Bundled software: Cubase AI, WaveLab Cast, and Cubasis LE
• Multi-channel recording with simultaneous ASIO and WDM support
• 60 mm input faders and mute buttons for quick, tactile control

Yamaha AG08 Description

The Yamaha AG08 is the flagship of Yamaha’s second-generation AG series, purpose-built for today’s diverse live streaming and content creation needs. With expanded I/O, a flexible routing system, DSP-powered effects, and intuitive control via the AG08 Controller app, it delivers top-tier performance for individual creators and collaborative productions alike.

Dual mic/line inputs support condenser microphones with phantom power and stereo mic panning, ideal for ASMR, vocalists, and podcasters. Two independent headphone outputs support dual-user setups. Assignable USB/LINE inputs and faders allow precise routing and mixing of multiple audio sources—including music, apps, and calls—making it perfect for everything from solo streams to full-scale talk shows.

Six onboard sound pads allow instant playback of audio effects and samples, while the onboard DSP adds a creative edge with presets including reverb, EQ, amp simulation, and Yamaha’s new Voice Changer. Channels 3/4 through 7/8 benefit from automatic ducking, keeping vocals clear over background audio. The Maximizer function provides polished, broadcast-quality sound by balancing and compressing the overall mix.

With USB-C connectivity, foot switch support, iOS/Android compatibility, and bundled professional production software, the AG08 is the most versatile streaming solution Yamaha has ever offered.

AG08 Features

• Two mic/line inputs with +48V phantom power
• Two independent headphone outputs
• Hi-Z input on CH2 for direct guitar connection
• Three stereo channels with assignable USB/LINE input sources
• Four FX preset buttons on CH1 for quick DSP effect switching
• Voice Changer, Amp Sim, Compressor, EQ, Delay, Reverb, Ducker, Maximizer
• Six customizable sound pads for real-time audio triggering
• Flexible multi-channel USB interface (24-bit/48kHz)
• AG08 Controller app for detailed parameter management
• 60 mm faders and mute buttons for all inputs
• Foot switch control for added versatility
• Compatible with Windows, macOS, iOS, and Android devices
• USB-C power input (5V DC, 1.5A)

AG08 Specifications

• Inputs: 2 x Combo XLR/TRS, 3 x Stereo Line, 1 x TRRS 4-pole
• Outputs: Monitor (XLR + TRS), Mix (TRS), 2 x Headphones
• Phantom Power: +48V (CH1 & CH2)
• Bit Depth/Sample Rate: 24-bit / 48kHz
• Power Supply: USB-C (5V DC, 1.5A) via PA-150B adapter
• Compatibility: Windows / Mac / iOS / Android
• Bundled Software: Cubase AI, WaveLab Cast, Cubasis LE
• Dimensions: 13.7" x 9.3" x 3.0" (348 mm x 237 mm x 76 mm)
• Weight: 4.4 lbs (2.0 kg)
