Woodward Schumacher 80-73-0 Vintage Power Transformer Tested 120 / 6.3 V Tube Amp Project 1963
Our users rate Reverb

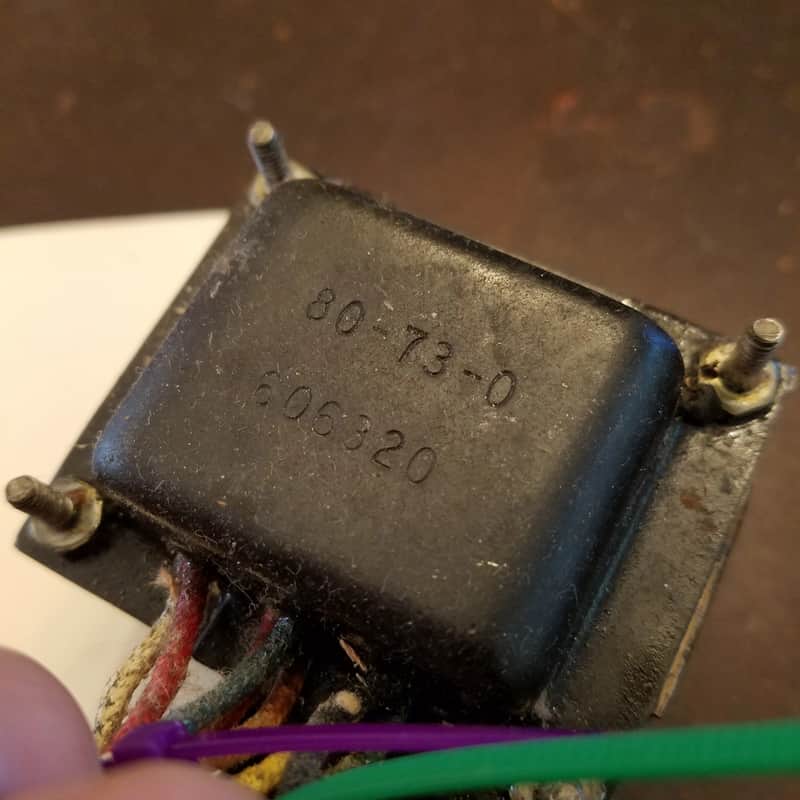

Fully 60 Hz AC tested and guaranteed vintage tube preamp transformer. AC testing using an oscilloscope allows us to find and reject transformers with noisy outputs, which a simple resistance or continuity test will not reveal. Made in USA in 1963. IEA date code 606320. Weighs 2 lbs 8 oz. Bolt spacings 56 mm by 45 mm. Quantity sometimes available - please enquire.
Here are the verified connections for this transformer:
Input: 117V
Outputs:
120 VAC
6.3 VAC
Two total 6.3 VAC outputs!
We use a standardized wire identification scheme featuring bright cable ties. In case of any ambiguity, 117V input will be wrapped with a black cable tie, red is high-voltage, yellow is 5V for rectifier, green is 6.3V, blue is 12.6V, white is 117V out for use as an isolation transformer or tubes with series heaters, purple is a second (or third!) 6.3V output. The voltages run a bit higher when run at modern AC levels instead of the 117 VAC that was specified in the 1950s and 1960s. Serial number T-030.
| Listed | 3 years ago |
|---|---|
| Condition | Excellent (Used) Excellent items are almost entirely free from blemishes and other visual defects and have been played or used with the utmost care.Learn more |
| Brand | |
| Model |
|
| Categories | |
| Year |
|
