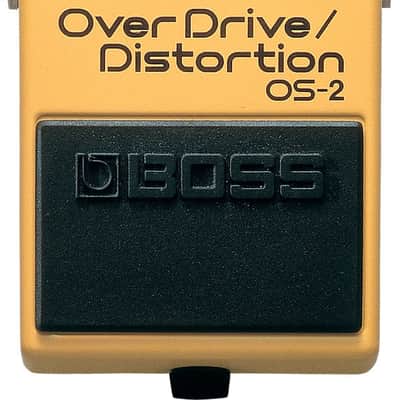

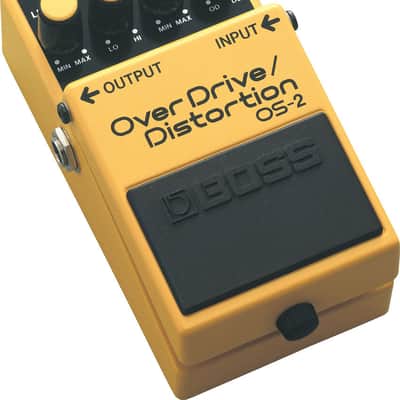

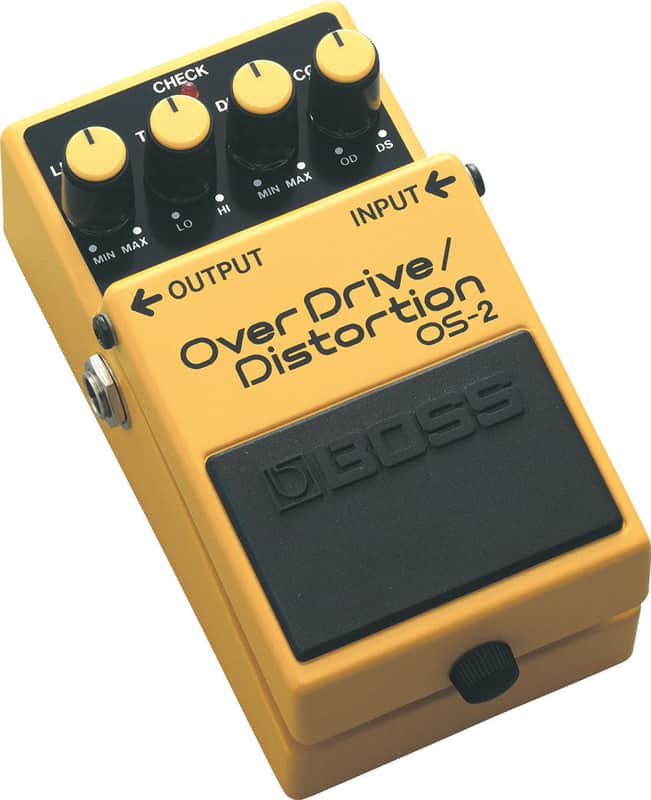

Distortion and Overdrive Together At Last!

The OS-2 gives players a choice of overdrive or distortion or lets them combine both--all in a single compact pedal. Its distortion maintains the subtle nuances of single-coil guitar pickups.

• Flexible distortion pedal capable of producing blended overdrive/distortion sounds
• Provides both "over-the-top" distortion sounds and less extreme overdrive tones for rhythm playing
• Includes Level, Tone, Drive and Color controls for precise tonal shaping
• BOSS five-year warranty

Nominal Input Level -20 dBu Input Impedance 1 M ohm Nominal Output Level -20 dBu Output Impedance 1 k ohm Recommended Load Impedance 10 k ohms or greater Bypass Buffered bypass Controls COLOR knob
DRIVE knob
TONE knob
LEVEL knob
Pedal switch Indicator CHECK indicator (Used for indication of check battery) Connectors INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack Power Supply Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately) Current Draw 12 mA Expected battery life under continuous use Carbon: Approx. 38.0 hours
Alkaline: Approx. 61.5 hours
*These figures will vary depending on the actual conditions of use. Accessories Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22) Options (sold separately) AC adaptor: PSA series Size and Weight Width 73 mm
2-7/8 inches Depth 129 mm
5-1/8 inches Height 59 mm
2-3/8 inches Weight (including battery) 400 g
15 oz * 0 dBu = 0.775 Vrms *The specifications are subject to change without notice.
