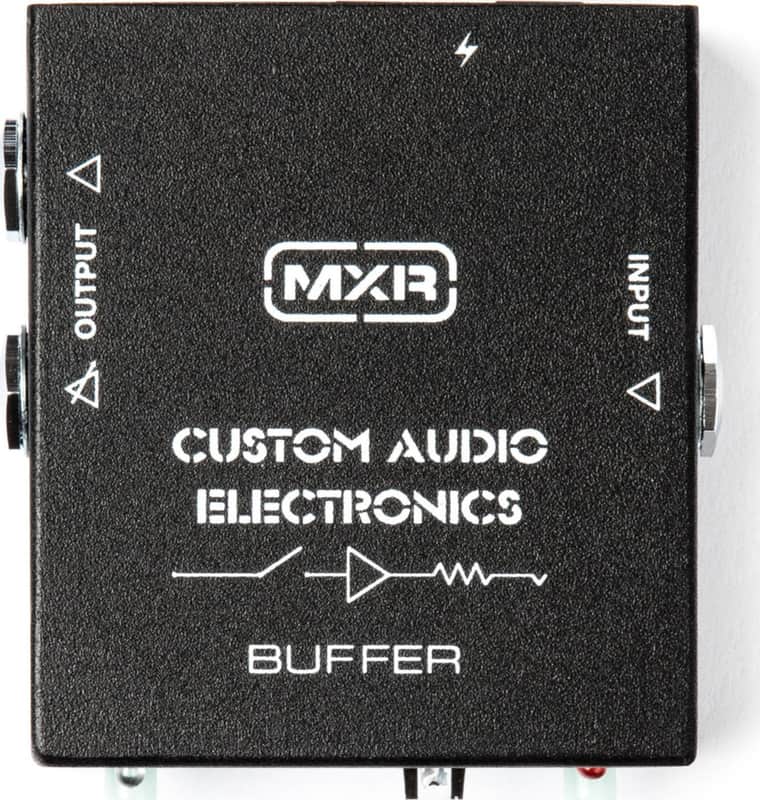

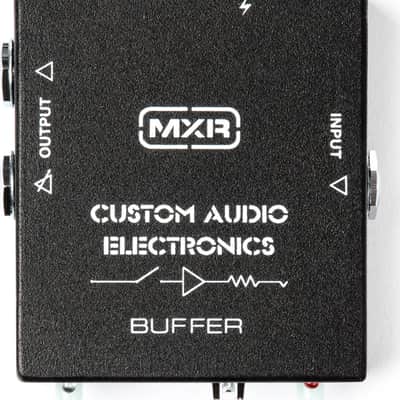

When you run your signal from your instrument to your amp though long cables and/or through a large array of effects with varying impedance, there's bound to be some signal degradation. Placing the CAE Buffer in your signal chain addresses this issue. It's a low-noise buffer in a small, rugged housing; it can add up to +6dB of gain with the front-facing gain slider; it makes up for signal loss that can occur when combining effects with different impedance levels; it fine-tunes signal recovery with Hi and Lo cut switches; it has an extra output for a tuner, separate effects chain or amp, and can be set to receive either a buffered or unbuffered signal; it also features a convenient 9VDC power output jack which provides power for another pedal. The CAE Buffer is truly a mighty utility with a small footprint—an ideal addition to any effects rig or pedalboard!

Product Features

• Buffer pedal for maintaining instrument signal quality over longer cable runs and effects chains

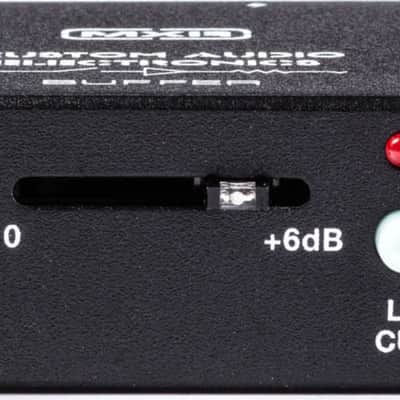

• Add up to 6dB of gain to make up for lost volume due to long signal paths
• Fine-tune signal recovery with High- and Low-cut switches
• Additional unbuffered output lets you connect to a tuner, second effects chain, or amplifier
• Rugged construction is built to last

Attributes

• Color: Black

Technical Specifications

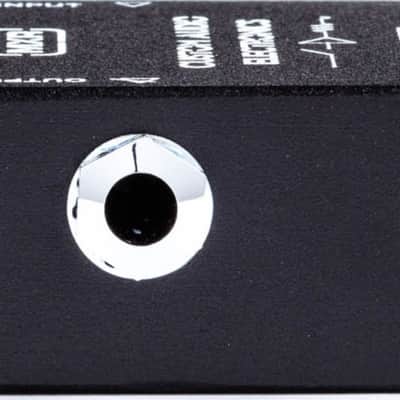

• Inputs: 1 x 1/4"
• Outputs: 1 x 1/4" buffered, 1 x 1/4" unbuffered

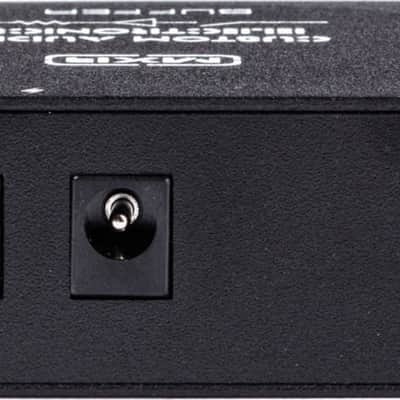

• Power Source: 9V DC power supply (sold separately)
• Effects: Buffer
• Processing Type: Analog
• Power Usage: 43mA
