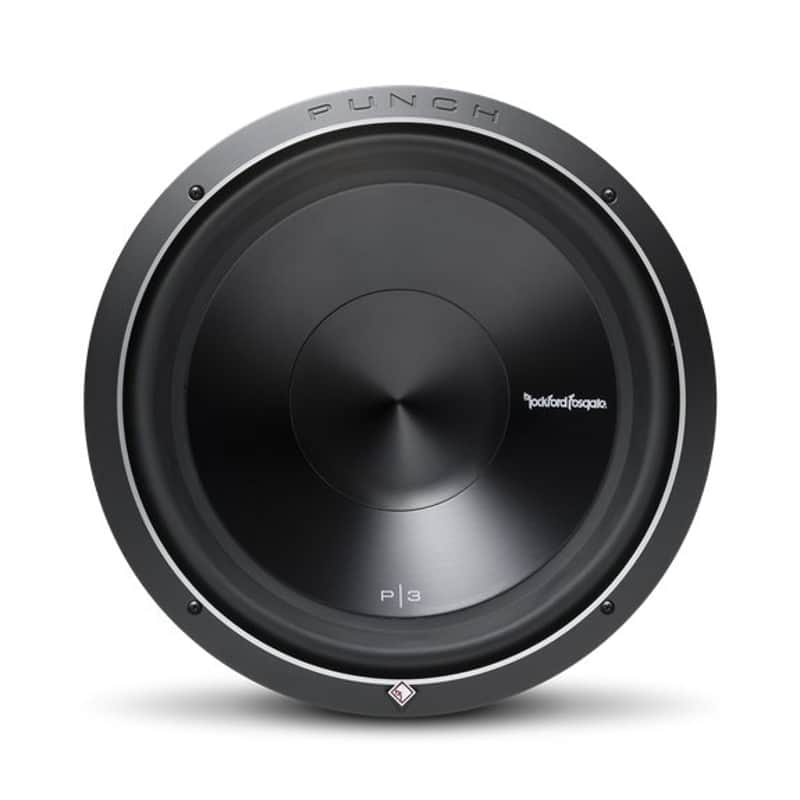

Rockford Fosgate 600 Watt 4 Ohm Punch 15" P3 DVC Subwoofer - P3D4-15

Overview

The P3D4-15 is Rockford Fosgate's best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.

Features

• Custom 10-AWG nickel plated push terminals
• Anodized aluminum cone and dustcap
• High-temp voice coil with spun-laced Nomex® re-inforcement collar
• Dual linear spider with embedded 16 AWG tinsel leads
• Extended pole piece and bumped vented backplate
• Protective PVC textured magnet cover
• StampCast basket with integrated spider venting
• Diamond cut cast aluminum trim ring with optional grille
• 1 Year Warranty

Specifications

• Size: 15"
• Speaker Connector: Dual 10 AWG compression
• Shipping Weight: 23.3 Lbs. (10.56 kg)
• Fs (Hz): 22.4
• Cutout Diameter: 13.94 in. (353 mm)
• Nominal Impedance: Dual 4-Ohm
• Magnet Weight (oz): 96 oz. (2.73 kg.)
• Voice Coil Diameter: 2.5" (65.5 mm)
• Power Handling (Watts RMS): 600 Watts RMS; 1200 Watts Max
• SPL (dB @ 1w/1m): 86
• Mounting Depth: 7.58 in. (192.5 mm)
• Qts: 0.57
• Qes: 0.64
• Qms: 4.90
• Vas (Liters): 155.8
• Woofer Displacement: 0.148 cu. ft. (4.2 Liters)
• Re (Ohms): 6.40
• Le (mH): 6.45
• Xmax (mm): 15.9
• Sd (cm2): 894
• Subwoofer Type: Standard
• Voice Coil Type: Dual Voice Coil
• Sealed Box Volume (Vb): 1.58 cu. ft. (44.7 Liters)
• Vented Box Volume (Vb): 2.66 cu. ft. (75.3 Liters)
