NLC Nonlinear Circuits Primal Hyperchaos

NLC Primal Hyperchaos

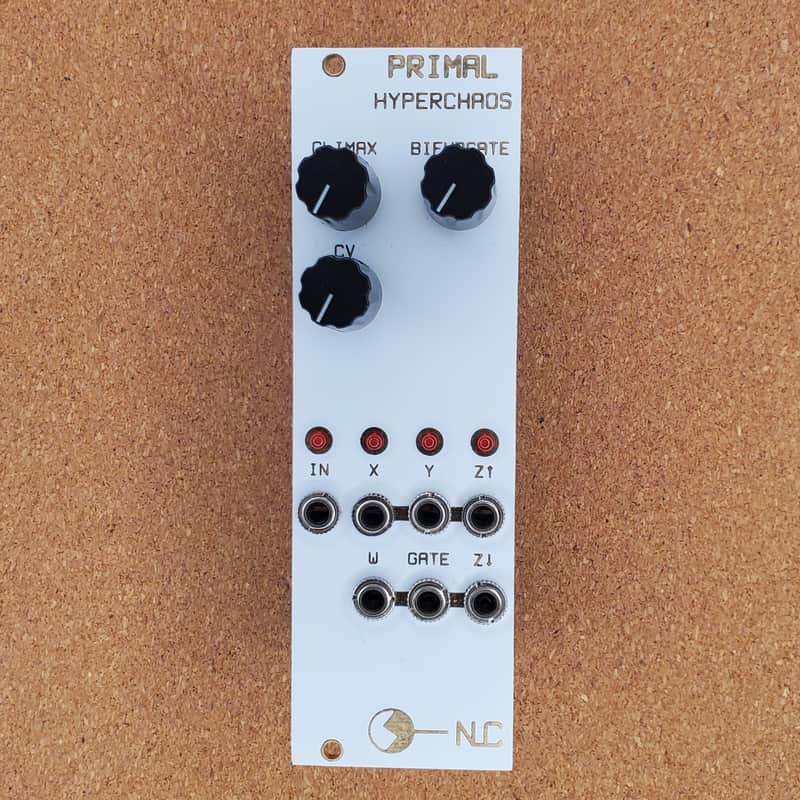

• 8 hp, White Panel

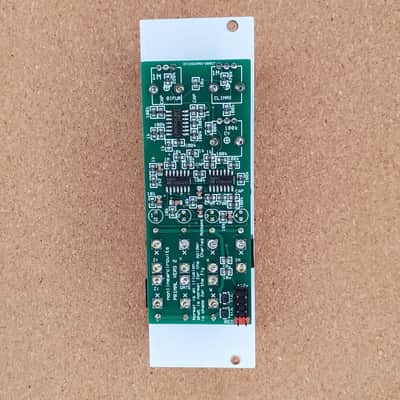

• Fresh build, tested and fully functional
• Reverse power protection installed, comes with power cable
• Built with highest quality WQP-518MA jacks (20k+cycles)

Further information from nonlinearcircuits:

Hyperchaos circuit based on a paper by C Li, et al. It can be built to run at different speeds simply by installing different capacitors. Very easy build, no special components needed.

There are 5 different CV outputs and 1 gate output. The CV IN is associated with the CLIMAX pot which determines how high the peaks go. The module can be greatly influenced by the CV in signal and can exhibit some fairly nutty responses at times.
