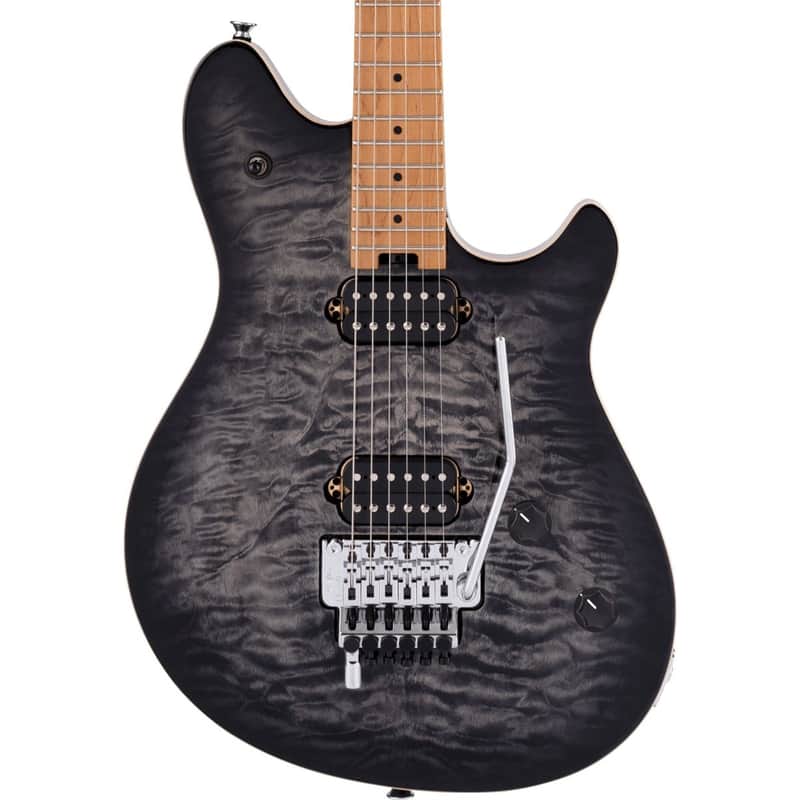

EVH Wolfgang Special QM Guitar - Charcoal Burst

Road-tested in arenas around the world, the Wolfgang Special is a purebred music-making machine, designed with stunning style, giant sound and high-speed playability.

The Wolfgang Special QM features a basswood body with an arched quilt maple top and a robust graphite-reinforced bolt-on quartersawn baked maple neck. The neck is carved and rolled to Eddie Van Halen’s exacting specifications and features a hand-rubbed satin urethane finish on the back. Primed for high performance, energetic riffing and blazing leads, the 12”-16” compound radius baked maple fingerboard has 22 jumbo frets and black dot inlays. Truss rod adjustments have also never been easier thanks to a spoke wheel conveniently located at the base of the neck.

A pair of flagship custom-designed EVH Wolfgang Alnico 2 humbucking pickups are mounted directly to the body, providing dynamic yet articulate voicing, as well as endless sustain for powerful chords and melody lines. A sturdy and dependable EVH-branded Floyd Rose locking trem and Floyd Rose locking nut work in tandem for precise tuning even with extreme changes in pitch, while the EVH D-Tuna retunes to drop-D and back with strict accuracy at the flick of a finger. The volume knob with treble bleed circuit has a 500K EVH Bourns low friction pot for smooth swells and a tone control knob with a 250K Bourns high friction tone pot that prevents accidental tone shifting.

Spotlight-ready, the Wolfgang Special QM is available in Charcoal Burst with cream body binding and chrome hardware.

Features:

General

• Color: Charcoal Burst
• Orientation: Right-Hand
• Series: Wolfgang Special
• Model #: 5107701597

Neck

• Fingerboard Material: Baked Maple
• Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Headstock: EVH Wolfgang
• Neck Construction: Bolt-On with Graphite Reinforcement
• Neck Finish: Hand-Rubbed Satin Urethane
• Neck Material: Quartersawn Baked Maple
• Neck Shape: Wolfgang Backshape
• Neck Thickness:.805" at 3rd & .890" at 12th Fret
• Number of Frets: 22
• Nut Material: Floyd Rose R2 Locking
• Nut Width: 1.625" (41.3 mm)
• Position Inlays: Black Dot
• Side Dots: Black
• String Nut: Floyd Rose R2 Locking
• Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
• Fret Size: Jumbo
• Scale Length: 25.5" (648 mm)

Body

• Body: Basswood
• Body Binding: 1-Ply Cream
• Body Finish: Gloss Urethane
• Body Material: Basswood
• Body Shape: Wolfgang
• Body Top: Quilt Maple

Hardware

• Bridge: EVH-Branded Floyd Rose Locking Tremolo with EVH D-Tuna
• Control Knobs: Black Knurled with White Indicator
• Hardware Finish: Chrome
• Pickup Covers: Black
• Strap Buttons: Oversized
• String Trees: Floyd Rose Retainer Bar
• Strings: EVH Nickel Plated Steel (.009-.042 Gauges)
• Switch Tip: Black
• Tremolo Arm: Floyd Rose 1000 Series Locking
• Tremolo Block: Brass
• Tuning Machines: EVH-Branded Gotoh

Electronics

• Bridge Pickup: Direct Mount EVH Wolfgang Humbucking
• Controls: Volume (500K EVH Bourns Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH Bourns High Friction Pot)
• Neck Pickup: Direct Mount EVH Wolfgang Humbucking
• Pickup Configuration: HH
• Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

Accessories

• Included Accessories: Tremolo Arm, Hex Keys & User Manual
• Truss Rod Wrench: 2.5 mm Hex
