NLC Nonlinear Circuits Divine CMOS

NLC Divine CMOS

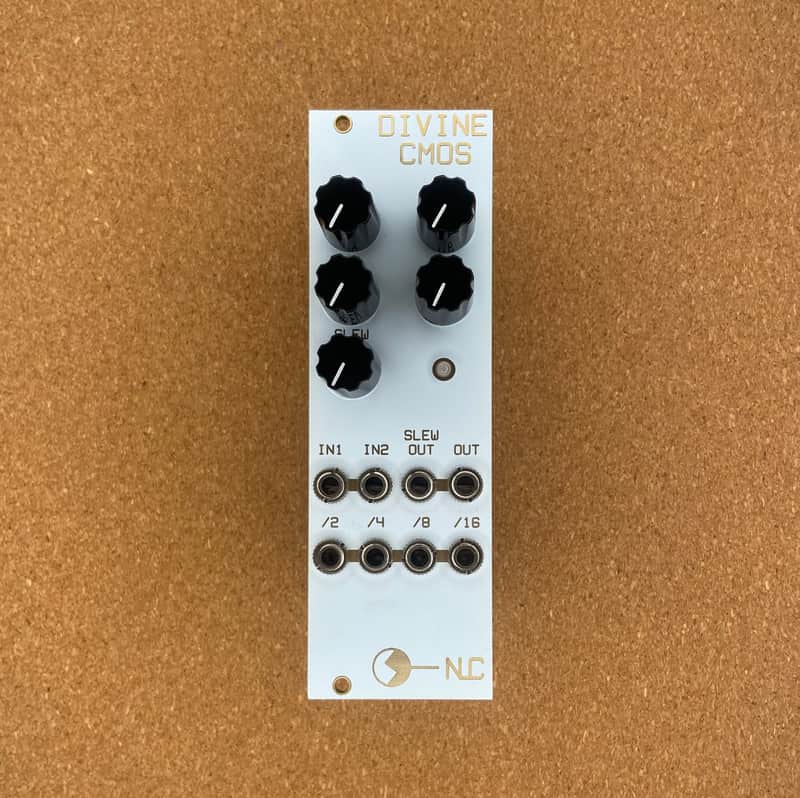

• 8 hp, White Panel

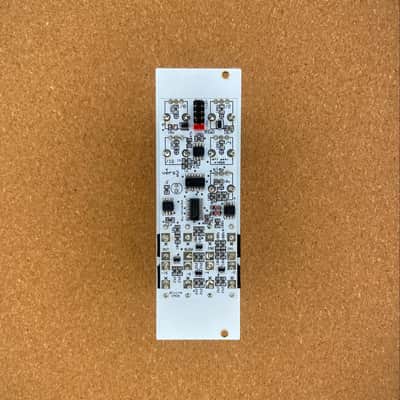

• Fresh build, tested and fully functional
• Reverse power protection installed, comes with power cable
• Built with highest quality WQP-518MA jacks (20k+cycles)

Further information from nonlinearcircuits:

This is a slimmed down and modified version of the 4U Divine CMOS. It can be used as a CV pattern generator with slew, frequency divider, gate pattern generator, envelope follower and a ring modulator that provides sub-harmonics that can be mixed together to create new sounds.

This circuit takes two input signals and divides them down by /2, /4, /8 & /16. It then XORs these divisions (XOR = Exclusive OR). All of these signals can then be mixed to create the output waveform. If this is done at audio rates the output is very thick and full of shifting harmonics. If it is done at LFO rates, the output is a complex pattern that can be used as a CV source. The gates generated by the CMOS logic stages are also available on the panel.
