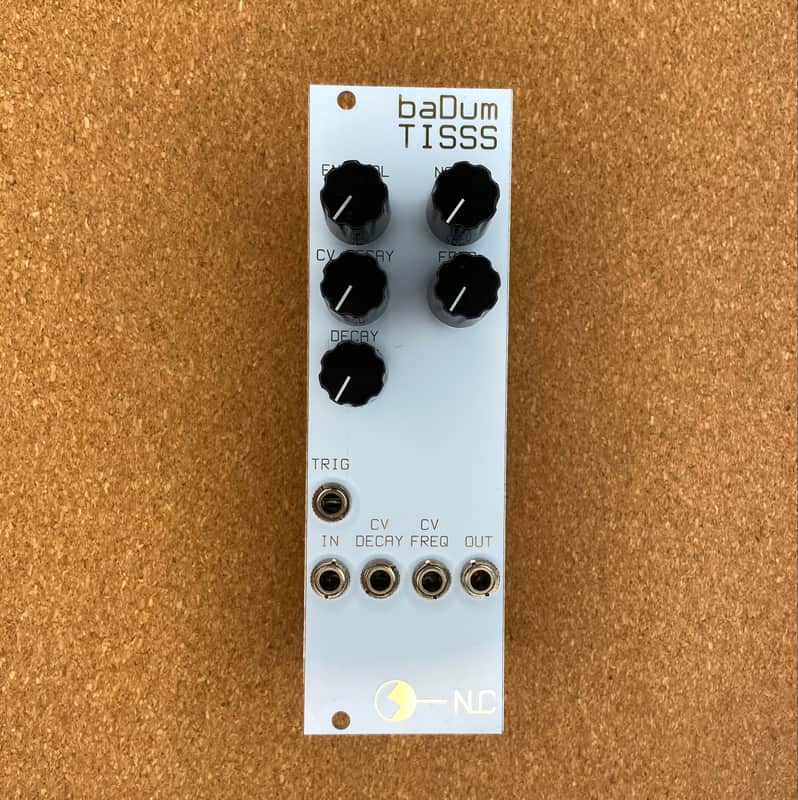

NLC Nonlinear Circuits BaDum Tisss

NLC BaDumTisss

• 8 hp, White Panel

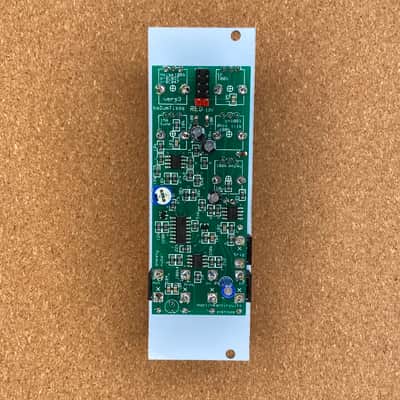

• Fresh build, tested and fully functional
• Reverse power protection installed, comes with power cable
• Built with highest quality WQP-518MA jacks (20k+cycles)

Further information from nonlinearcircuits:

BadumTisss is a snare/hi-hat module.

The core sound of the circuit comes from the ring mod. Usually it will process the noise source and the VCO, but feel free to plug in the output from another VCO and get some nice sounds. You can use CV to modulate the VCO frequency (NOT 1/oct) and control the decay time.

Inputs

TRIG: To trigger BaDumTisss
IN: Ring-mod input
CV Decay: Decay control voltage input
CV Freq: Frequency control voltage input
