Brand new item, Unopened box with 2 years warranty!

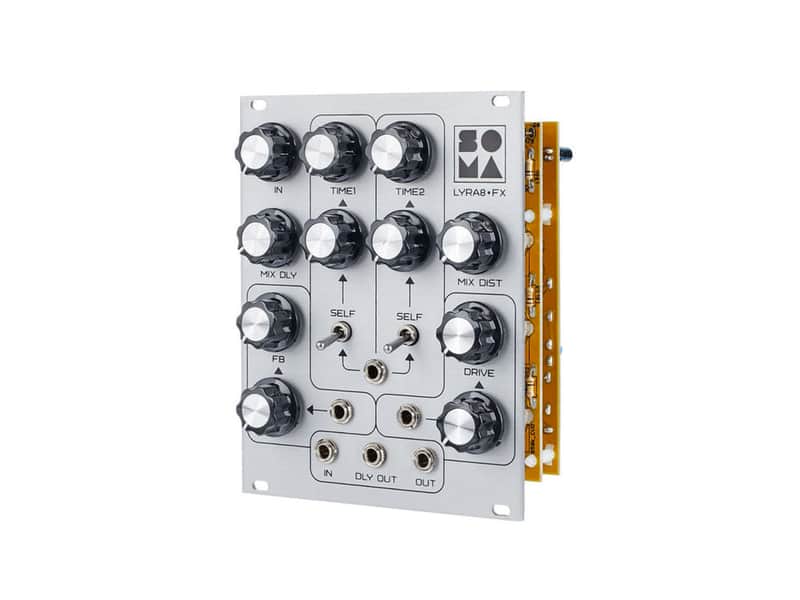

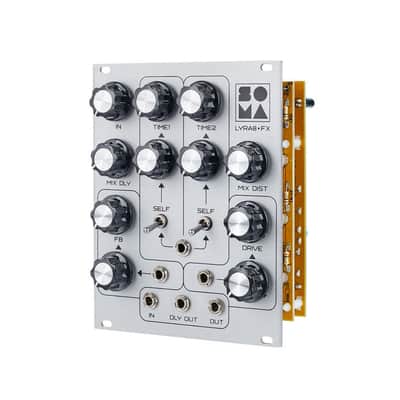

LYRA8-FX is a processor that can give you a significant part of the mysterious LYRA-8 sound thanks to the FX section from the LYRA-8, expanded with CV controls and packed into a Eurorack module.previous arrownext arrow
It contains a double modulated lo-fi delay with cross-feedback and the unique possibility of self-modulation, where the delay output signal modulates its own sample rate. Also, it packs a parallel distortion with CV control of the drive. The distortion is after the delay. It’s much more than a delay – you can get a simple reverb, comb filter, chorus and much more cool FXs which are hard to describe.It has a famous LYRA-8 build quality – no SMD, no twisted plastic shafts, no crappy parts.Pots:

• – IN volume
• – Stage 1 delay time
• – Stage 2 delay time
• – Stage 1 delay time modulation depth
• – Stage 2 delay time modulation depth
• – Delay feedback
• – Delay feedback CV amount
• – Delay mix
• – Distortion drive
• – Distortion mix
• – Distortion drive CV amount

Switches:

• – Stage 1 delay time modulation source
• – Stage 2 delay time modulation source

Ins:

• – Audio in
• – Delay time CV
• – Delay feedback CV
• – Distortion drive CV

Outs:

• – Main audio out
• – Delay only out

Dimensions:

• – Width – 20HP
• – Depth – 40mm

Power consumption:

• +12V – 90ma
• -12V – 20ma

More Info: SOMA Lyra8-FX
