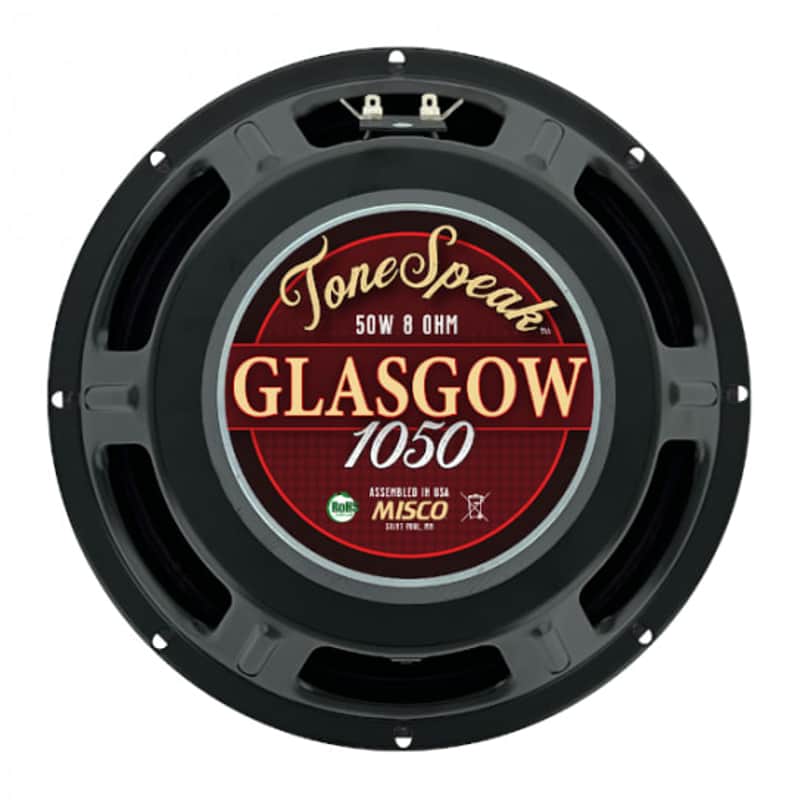

Glasgow 1050 - 10" Guitar Speaker, 50 Watt, 8 Ohm

Glasgow 1050 - 10" Guitar Speaker, 50 Watt, 8 Ohm

SO IF YOU'RE LONELY, YOU KNOW IT'S HERE WAITING FOR YOU...

In a nod to the great Scottish rock bands, the Glasgow 1050 is the perfect option for guitar players seeking a powerful leading sound at the forefront of any number. This driver's cone is a special, concentrically ribbed paper cone made by guitar-cone expert Kurt Müller, creating a tone profile of rich and warm lows, a balanced mid-range, and screaming highs.

Upgrade your tube amp with this high sensitivity replacement driver—a model sporting a large 35 oz ceramic magnet and a 1.75” voice coils used in the ToneSpeak 12” speakers—to pack your tone with plenty of punch.

• British tone guitar speaker
• 10" (250 mm) steel basket diameter
• 50 watts, 8 ohm, 96 dB SPL
• 1.75" aluminum voice coil, Nomex former
• 35 oz ferrite magnet
• Kurt Müller paper cone

ToneSpeak guitar speakers are the result of years and years of the deep-dive for the perfect tone.  Decades of testing, field experience and conversations with elite tone-chasers have all been poured into these fine products.  When you play ToneSpeak, you play the best.

Brand Name

ToneSpeak

Size, Nominal (inch & mm)

10" (250 mm)

Shape of Speaker

Round

Speaker Type

Guitar Speaker

Application

Musical Instruments

Environment

Indoor

RoHS Compliant

No

Nominal Impedance (Z) (Ω)

8

Rated Power IEC268-5 (W)

50 Watts

Rated Impedance (Ω)

8

Program Power (W)

100

Frequency Range (Hz)

65 - 5,500

Sensitivity (dB SPL) ¹

96

Resonant Frequency (Fs) (Hz)

109

DC Resistance (Re) (Ω)

7.1

Voice Coil Inductance (Le) (mH)

0.39

Mechanical Q Factor (Qms)

18.06

Electrical Q Factor (Qes)

0.85

Total Q Factor (Qts)

0.81

Mechanical Resistance (Rms) (kg/s)

0.83

Compliance Equivalent Volume (Vas) (L)

21.86

Suspension Compliance (Cms) (mm/N)

0.10

Surface Area of Diaphragm (Sd) (cm²)

397.61

Moving Mass (Mms) (gm)

21.81

Motor Force Factor (BL) (T•M)

11.22

Efficiency (η₀) (%)

3.22

Efficiency Bandwidth Product (EBP) (Fs/Qes)

128.99

Basket Type

Stamped steel

Terminal Size (mm)

5.2 x 0.5

Voice Coil Diameter (mm)

44.5

Voice Coil Wire Material

Copper clad aluminum

Voice Coil Former Material

Nomex

Voice Coil Winding Style

Single Layer

Magnet Material

Ferrite

Magnet Weight (g)

993.23

Cone Body Material

Paper composite

Cone Surround Material

Paper composite

Dust Cap Material

Cloth

Technical Notes

¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance
