Liquidation Special. We purchased a few pallets of these from B-52 at a special price and are passing the savings on to you. Get this great deal while they last

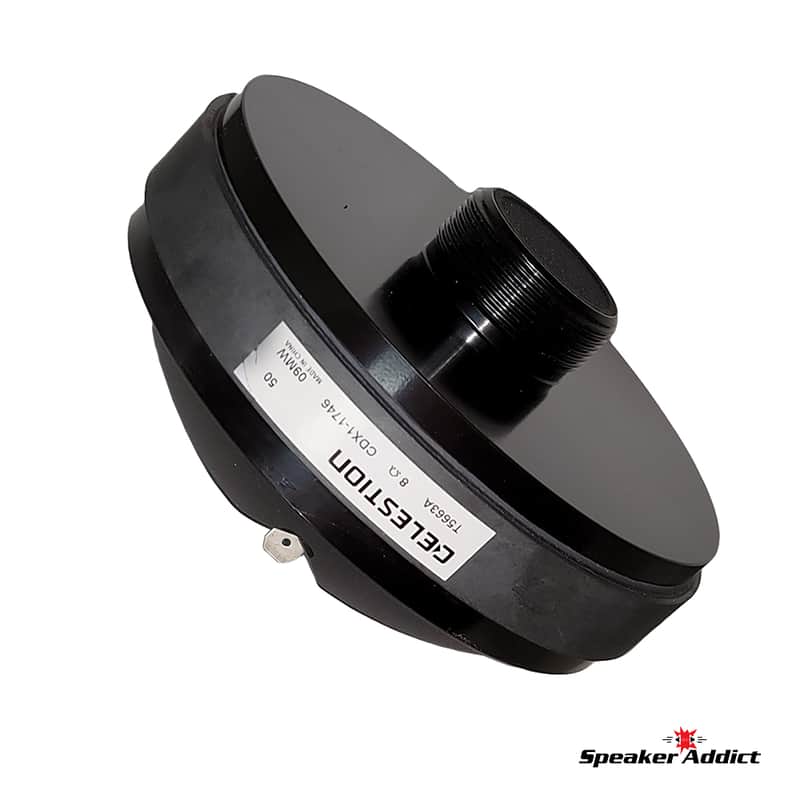

This was a custom version built for B-52 - only difference is it doesn't have a sticker on the back so B-52 could put on their own. As a result, the T-number on the Celestion side sticker is different but it is the same as the T5487 otherwise.

  • 1-inch exit ferrite magnet compression driver
  • 2,200Hz recommended min. crossover freq (12dB/oct)
  • Single piece PETP diaphragm and surround
  • Sound Castle diaphragm assembly
  • Screw on throat mount

Power rating - 40W

Continuous power rating - 80W

Rated impedance - 8Ω

Sensitivity - 110dB

Frequency range - 1200-20,000Hz

Recommended min. crossover - (12dB/oct)2200Hz

Magnet type - Ferrite

Voice coil diameter - 44mm / 1.75in

Voice coil material - Edgewound copper clad aluminium

Diaphragm material - PETP film

Surround material - PETP film


Mounting Information

Width - 120mm / 4.7in

Depth - 56mm / 2.2in

Fitting - Screw (35mm/1.38in Diameter)

Throat exit - 25mm / 1in

Unit weight - 2.3kg / 5.1lb


Packed Dimensions & Weight

Single pack size W x D x H - 140mm x 170mm x 70mm / 5.5in x 6.7in x 2.8in

Single pack weight - 3kg / 6.6lb



ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more
Brand
Model
  • CDX1-1746 1" 80-Watt 8ohm HF Compression Driver
