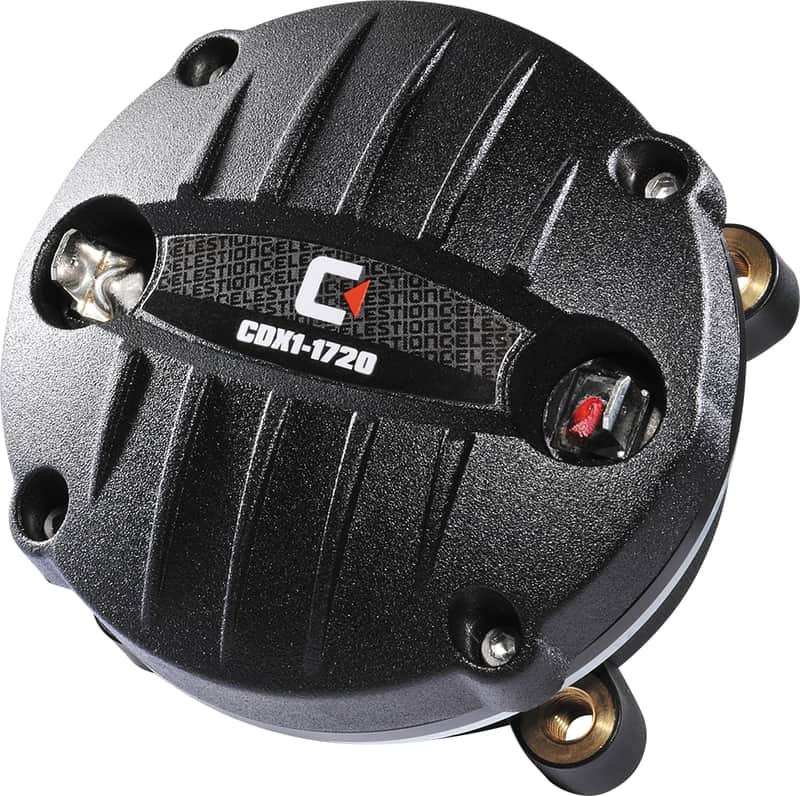

Celestion CDX1-1720 1 Inch 50w PA HF Horn Driver Tweeter 8 ohm
This seller has not set a shipping cost for Netherlands. Please contact them to ask about shipping.
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
Liquidation Special. We purchased a large qty of these from Celestion at a special price and are passing the savings on to you. Get this great deal while they last
Top quality rare titanium diaphragm version of this driver - as used in the premium QSC KLA12 line array system.
- 1-inch exit - BOLT ON - neodymium magnet compression driver
- Maximum modal suppression phase plug
- Deep-drawn titanium diaphragm with polyimide surround
- 1,500Hz recommended min. crossover freq (12dB/oct)
Power rating - 50W
Continuous power rating - 100W
Rated impedance - 8Ω
Sensitivity - 107dB
Frequency range - 800-20,000Hz
Recommended min. crossover - (12dB/oct)1500Hz
Magnet type - Neodymium
Voice coil diameter - 44mm / 1.75in
Voice coil material - Edgewound copper clad aluminium
Diaphragm material - Titanium
Surround material - Polyimide
Mounting Information
Width - 88.5mm / 3.5in
Depth - 55mm / 2.2in
Fitting - Bolt (4 x M6 holes on 76mm/3in PCD)
Throat exit - 25mm / 1.0in
Unit weight - 0.65kg / 1.4lb
Packed Dimensions & Weight
Single pack size W x D x H - 90mm x 90mm x 60mm / 3.5in x 3.5in x 2.4in
Single pack weight - 0.75kg / 1.7lb
