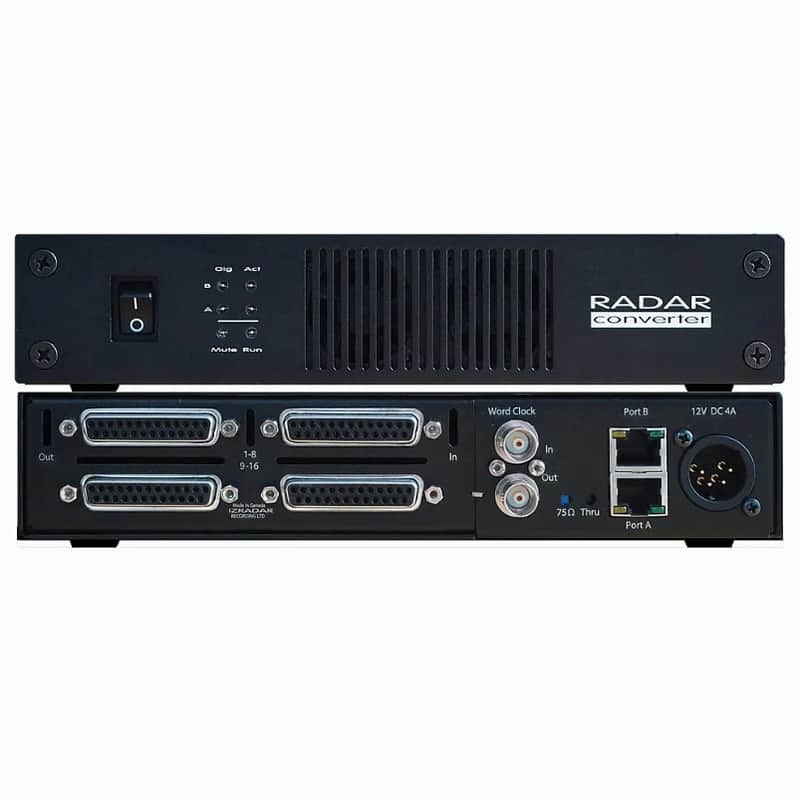

Radar Converter 24 I/O

This Radar Converter system comes with:

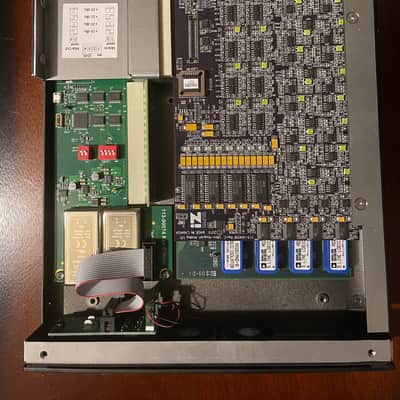

(1) Radar Converter Chassis

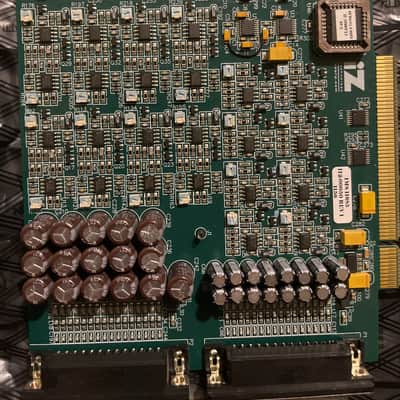

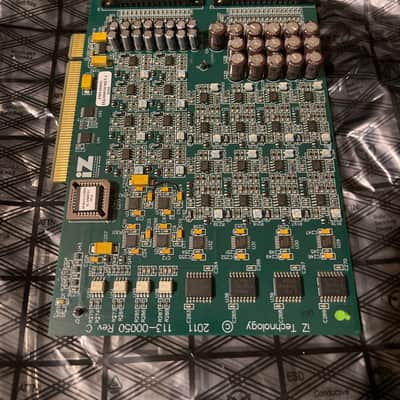

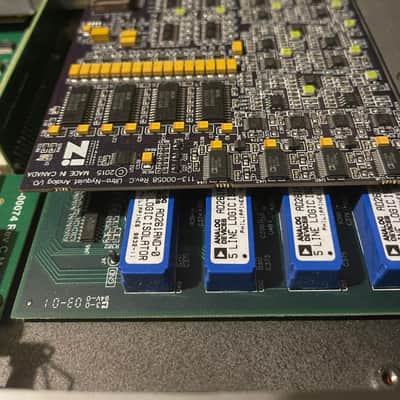

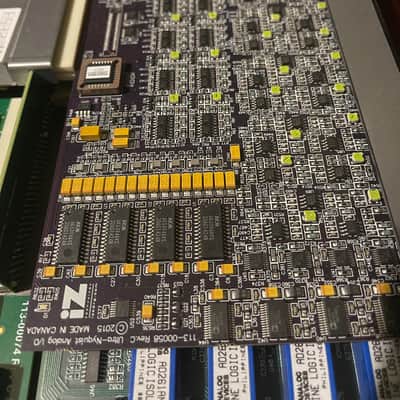

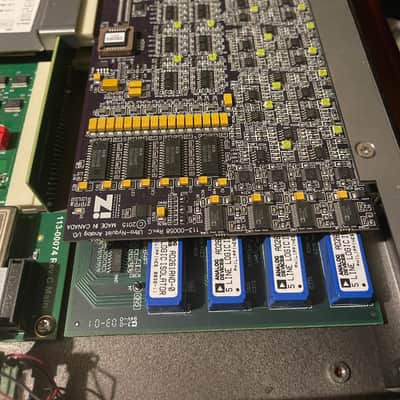

(1) Ultra-Nyquist 192Khz 8 I/O Analog Card
(1) Nyquist 96 96Khz 8 I/O Analog Card
(1) Classic 96 96Khz 8 I/O Analog Card

This is system has served me extremely well and the company has been amazing to work with and receive support from. Studio client demands changing is the only reason I am selling this remarkable system. It deserves a good home. The three different cards all sound incredible in different ways so you can mix and match the cards based on the project and the sonic needs you have. This has never been rack mounted so no rack rash and kept in a smoke-free environment. Enjoy!!

Features:
• A scalable new interface that combines Radar analog cards and Dante connectivity
• Each half-u frame can hold two classic, ultra-nyquist or vintage sound cards for up to 16 I/O
• A single interface can be connected through a standard ethernet port using dante virtual soundcard software
• For high channel counts and lower latency, connect using third-party PCIeR cards, thunderbolt expansion boxes, or HD bridge devices
• The sample rate auto-syncs with your DAW and Dante Controller makes routing incredibly easy
• Get 64 I/O in a 2U rack space – or scale up as required

Connections and Levels:
• Up to 2 x 8 channel analogue I/O cards may be installed for a total of 16 channels of analogue I/O per Converter chassis
• Chassis can be chained together for up to 128 I/O via Dante connectivity
• Input Connectors (per 8 channel card): 1 x DB-25, 25-pin connectors (balanced) Tascam wiring standard
• Output Connectors (per 8 channel card): 1 x DB-25, 25-pin connectors (balanced) Tascam wiring standard
• Operating Level: +4 dBu with selectable headroom
• Input and Output Level Select (maximum level): +18, +20, +22, +24 dB
