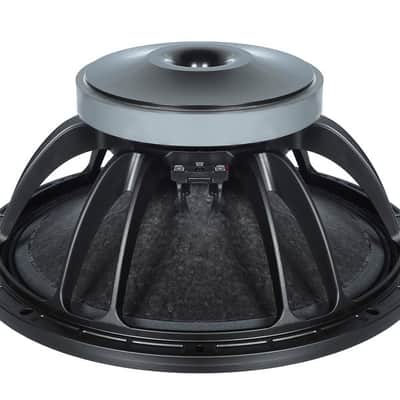

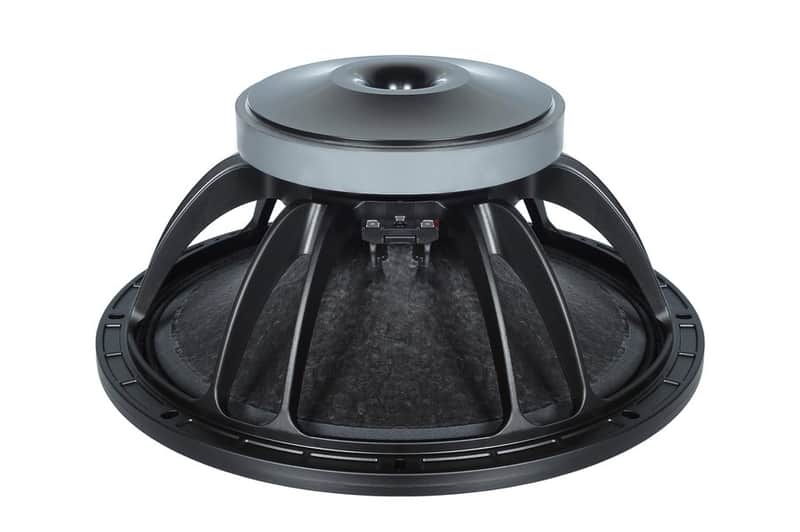

B&C 1000 Watts 8 Ohms 15” Woofer Driver - 15FW76-8
This seller has not set a shipping cost for Denmark. Please contact them to ask about shipping.
Pricekr.2,091.30
+ Shipping
Listed:over a month ago
Views:99
Saves:0
Spencer, MA, United States
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
Overview
- 1000 W continuous program power capacity
- 76 mm (3 in) copper voice coil
- 40 - 2000 Hz response
- 100 dB sensitivity
- Aluminium demodulating ring allows a very low distortion figure
- Double silicone spider and ventilated voice coil gap
Specifications
- Nominal Diameter: 380 mm (15.0 in)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.4 Ω
- Nominal Power Handling: 500 W
- Continuous power handling: 1000 W
- Sensitivity (1W/1m): 100.0 dB
- Frequency Range: 40 - 2000 Hz
- Voice Coil Diameter: 76 mm (3.0 in)
- Winding Material: Copper
- Former Material: Glass Fibre
- Winding Depth: 19.0 mm (0.75 in)
- Magnetic Gap Depth: 11.0 mm (0.43 in)
- Flux Density: 1.25 T
Design
- Surround Shape: Triple Roll
- Cone Shape: Exponential
- Magnet Material: Ferrite
- Spider: Double Silicone
- Pole Design: T-Pole
- Woofer Cone Treatment: WP Waterproof Front Side
- Recommended Enclosure: 80.0 dm3 (2.82 ft3)
- Recommended Tuning: 50 Hz
Mounting and Shipping Info
- Overall Diameter: 393 mm (15.5 in)
- Bolt Circle Diameter: 374 mm (14.7 in)
- Baffle Cutout Diameter: 354.0 mm (13.9 in)
- Depth: 177 mm (6.97 in)
- Flange and Gasket Thickness: 14 mm (0.5 in)
- Air Volume Occupied by Driver: 5.5 dm3 (0.19 ft3)
- Net Weight: 9.2 kg (20.2 lb)
- Shipping Weight: 10.5 kg (23.15 lb)
- Shipping Box: 425x425x224 mm (16.73x16.73x8.82 in)
