Golden Age Premium Wiring Kit for Gibson Les Paul with Push-pull Pots, Long-shaft CTS pots and chrome Switchcraft switch

These kits make it easy to order premium components for wiring your Gibson® Les Paul®. CTS push-pull pots split the coils of humbuckers for single-coil operation. For humbucking pickups with series link access (3 wire, 5 wire, etc).

Complete with wiring diagram, each kit features trusted components used for decades in Gibson? and other iconic American instruments.

Premium Wiring Kits feature premium components like

– Switchcraft toggle switch and jack

– CTS potentiometers

– Orange Drop capacitors

– Push-back wire

Be sure your control knobs will fit: CTS pots have a fine-knurled 24-spline split shaft. Coarse-knurled knobs for imported Alpha pots won't fit.

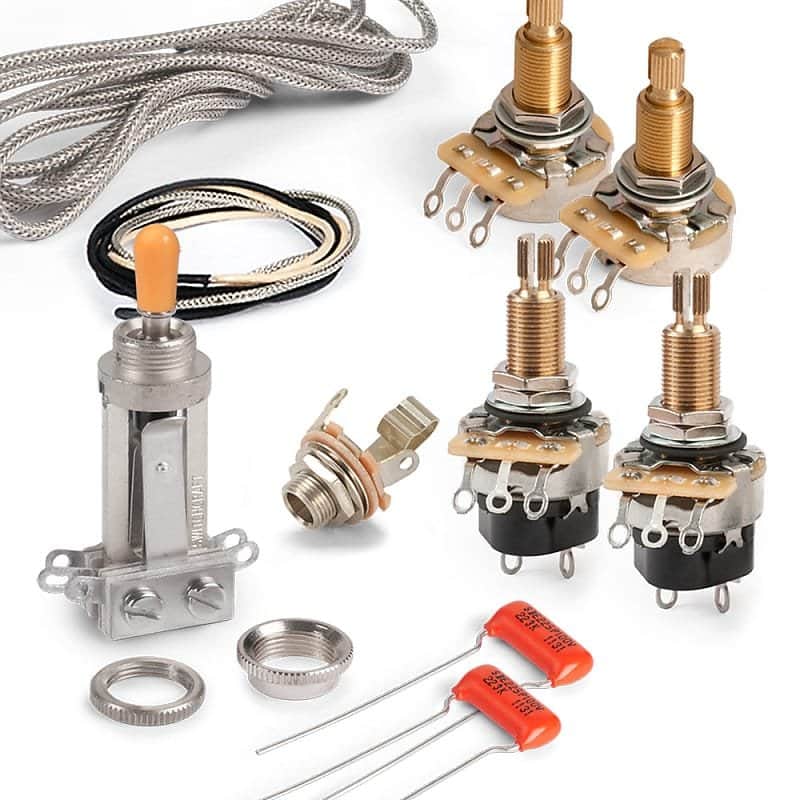

Premium Wiring Kit for Gibson® Les Paul® includes
• 1/4" Switchcraft output jack (1)
• 0.022uF Orange Drop capacitors (2)
• 500K CTS control pots (4 total: 2 regular, 2 push-pull)
• Switch knob (1, amber)
• Switchcraft 3-way toggle switch (chrome)
• Non-shielded cloth-insulated push-back circuit wire: 22 AWG, white, 12" long
• Non-shielded cloth-insulated push-back circuit wire: 22 AWG, black, 24" long
• Shielded braided push-back circuit wire: 22 AWG inner conductor, 60" long
• Wiring diagram

CTS control pot specifications:

– Shaft diameter: 0.235" (5.95mm) split shaft, fine knurling

– Thread: 3/8" x 32

– Thread height (long shaft): 3/4" (19.05mm)

– Required mounting hole diameter: 3/8" (9.52mm)

– Required cavity depth: 1-3/16" (30.16mm)

Switchcraft 3-way toggle switch specifications:

– Thread height: 7/32" (5.56mm)

– Required mounting hole diameter: 1/2" (12.70mm)

– Required body cavity depth: 1-1/2" (38.10mm)
