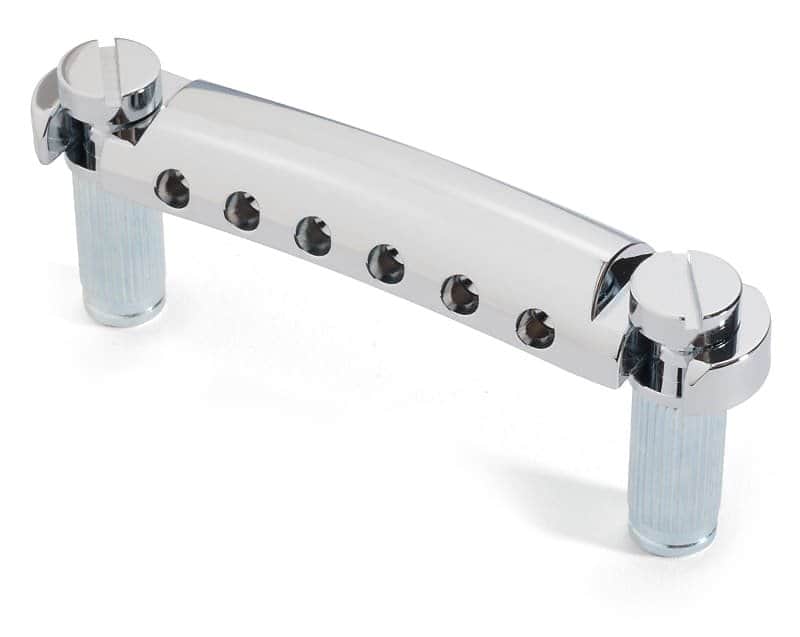

Gotoh 'Stop' Tailpiece, Chrome, M8 x 1.25

The Gotoh 'Stop' Tailpiece is the familiar zinc die-cast bar tailpiece for solidbody guitars, with height-adjustable metric (M8 x 1.25) threaded mounting studs and knurled bushings.

Details:

• Mounting studs are spaced 3-1/4" (82.55mm) center-to-center.
• Position the studs 1-1/2" (38.10mm) behind the center of the bass side bridge mounting post.
• Use an 11mm drill bit to install the bushings.
• Strings can be installed from the front or rear.
• Chrome-plated.
