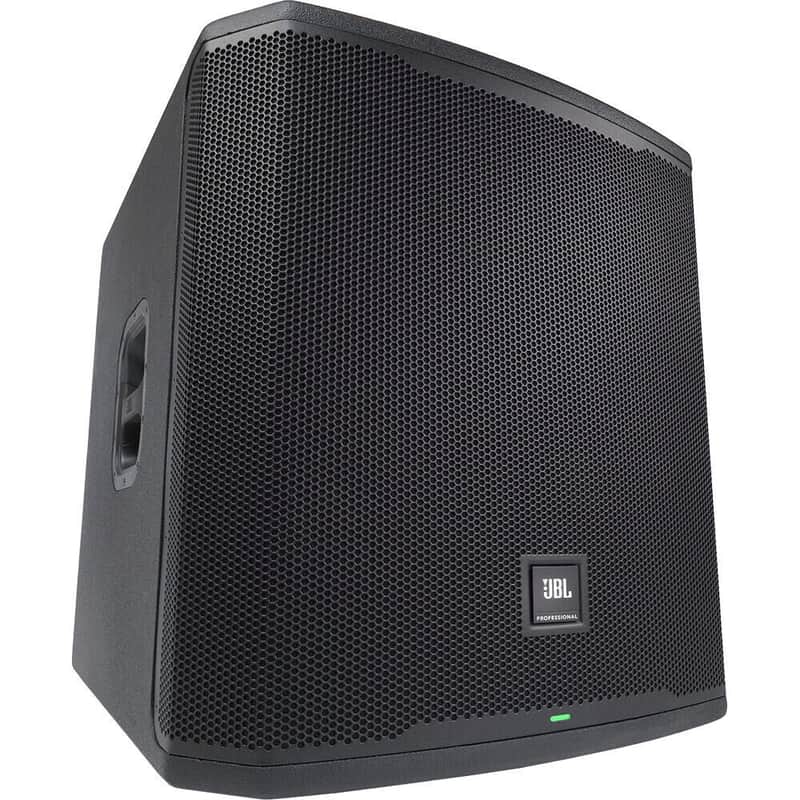

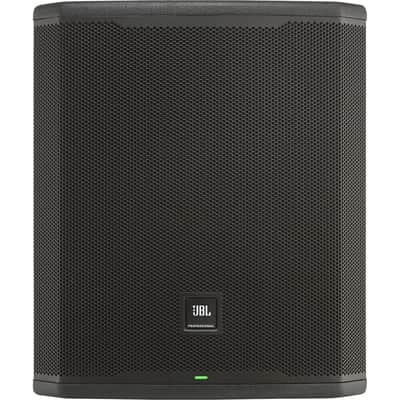

JBL PRX918XLF Professional DJ 18-Inch Powered Subwoofer 2000 Watts

The PRX918XLF subwoofer, part of the JBL PRX900 Series powered loudspeakers and subwoofers, takes professional portable PA performance to a new level with advanced acoustics, comprehensive DSP, unrivaled power performance and durability and complete BLE control via the JBL Pro Connect app. The PRX900 Series is a versatile solution for DJs and bands, music venues, rental houses, corporate A/V providers, or anyone who needs durable professional systems that deliver powerful, room-filling sound in any portable or installed scenario.

• This 18-inch powered subwoofer is built from the ground up to leverage JBL’s most advanced acoustic innovations. A next-generation driver—powered by an ultra-efficient Class D amplifier—delivers clear, defined bass with smooth low-frequency extension at maximum volume.
• The PRX918XLF’s class-leading DSP package, accessible via onboard LCD or the JBL Pro Connect app, includes 6-band parametric EQ for system tuning and nuanced tonal control, plus a lowpass filter and 20ms delay.
• The JBL Pro Connect app provides complete hardware and DSP control of up to 10 speakers; integrate with JBL EON ONE MK2, PRX ONE and EON700 systems, and access app-only functions including speaker snapshots and grouping.
• The PRX918XLF is designed to withstand the rigors of the road, and is enclosed in an 18mm birch cabinet with optimized bracing for smooth low-frequency response and improved durability. Like with every JBL product, everything is reinforced by industry-leading test and validation protocols.

Features

• Transducer: FEA flared port design reduces air noise and distortionLightweight, efficient Class D amplification
• 918SG 18” ferrite magnet woofer
• Power: 2,000 watts peak/1,000 watts RMS
• 18mm birch cabinet features optimized bracing for smooth low-frequency response
• Frequency response: 30 Hz–110 Hz @2pi (-10 dB); 35 Hz–92 kHz @2pi (-3 dB)
• Max SPL: 134 dB
• Color LCD screen provides access to comprehensive DSP suite
• DriveRack Technology includes 180ms of speaker delay in 100-microsecond intervals for precise time-aligned systems
• JBL Pro Connect app allows full system control of up to 10 speakers and line integration with JBL EON ONE MK2, PRX ONE and EON700 systems
• Optimized presets for pairing with full-range speakers
• I/Os: Two side handlesMount: M20 pole cup
• 2 XLR balanced Combo jacks
• 2 XLR pass-through outs
• Cabinet features optimized bracing for smooth low-frequency response
• Quiet fanless operation
• Ultra-low system latency: <1ms
• Net weight: 40.7 kg (89.7 lbs); gross weight: 47.5 kg (104.7 kg)
• Dimensions: 693 mm x 591 mm x 654 mm (27.3 in x 23.3 in x 25.7 in) (H x W x D)
• Shipping dimensions: 732 mm x 703 mm x 766 mm (28.8 in x 27.7 in x 30.2 in) (H x W x D)

Specifications

Frequency Range (-10dB)

• 30 Hz – 110 Hz (2π)

Frequency Range (-3 dB)

• 35 Hz – 92 Hz (2π)

Coverage Pattern

• Omni

Transducer Impedence

• Rated: 4 Ω

Max SPL

• 134 dB @1m/2π

Power Rating

• 2000W peak / 1000W RMS

Cooling

• Natural Convection
  No Fan

Crossover Frequency

• 80 Hz, 100 Hz, 120 Hz Selectable

I/O

• x2 Combo Inputs
  x2 XLR Pass Through Outputs

Suspension / Mounting

• Pole Mount on Top Surface

Product Dimensions (H x W x D)

• 693 x 591 x 654 mm (27.3 x 23.3 x 25.7 in)

Net Weight

• 40.7 kg (89.7 lbs)
