S/PDIF DIGITAL CONVERTER
- Encodes 2 analog inputs into a S/PDIF digital signal
- Decodes a S/PDIF digital signal into 2 analog outputs
- DC-coupled inputs and outputs support both CV and audio signals
- Selectable 44.1/48 kHz internal sample clock or external sync
- Digital coaxial cable connectors for S/PDIF signals (RCA)
Compact digital conversion

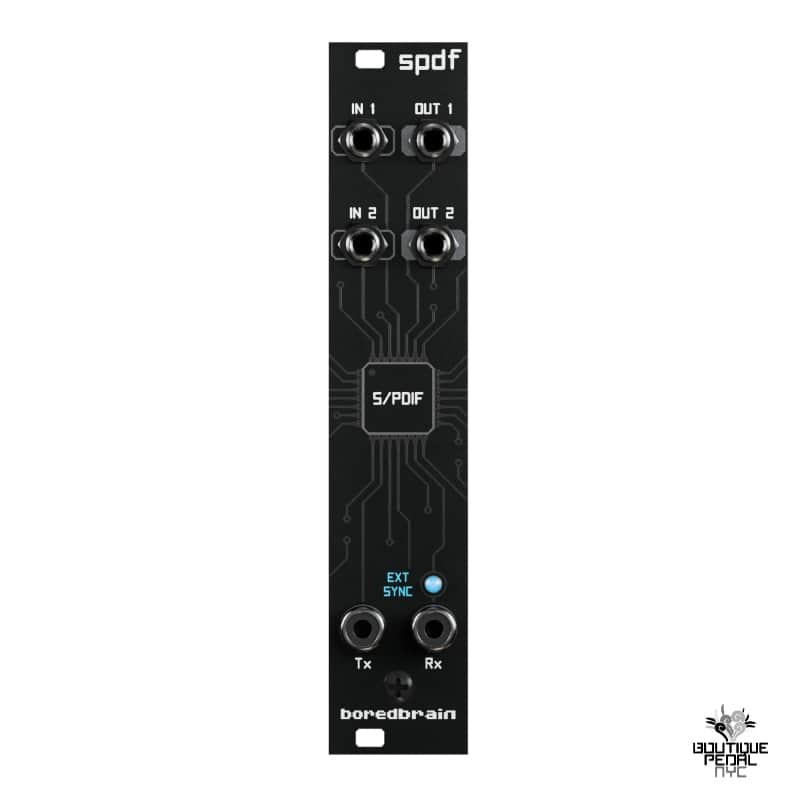

Spdf is a digital signal encoder and decoder for eurorack modular synthesizers. The module converts analog audio and CV signals to and from the S/PDIF format to interconnect digitally with computer audio interfaces and other S/PDIF enabled devices.
S/PDIF Encoding & Decoding
Many audio interfaces are equipped with S/PDIF expansion ports allowing for two additional channels of input and output. Spdf takes advantage of these often unused ports, providing a digital interconnection between a computer and eurorack system.
The module accepts a 2-channel S/PDIF signal at the Rx jack (via coaxial digital cable) and converts it into two discrete analog signals available at the OUT 1 and OUT 2 jacks. Conversely, Spdf accepts two discrete analog signals at the IN 1 and IN 2 jacks and converts them into a 2-channel S/PDIF signal available at the Tx jack.
Analog I/O
The module’s analog inputs and outputs are DC-coupled (selectable for inputs), which means Spdf can encode and decode DC signals like control voltages. When used in conjunction with software such as Bitwig Studio or Ableton CV Tools, the module can be used to send and receive control voltages like 1V/oct pitch signals, gates, triggers, LFOs, ADSRs, and other modulators.
Spdf can also be used to digitally encode and decode audio signals. AC-coupling for the inputs may be selected (default setting), which will enable an inaudible high-pass filter to remove any DC offset prior to S/PDIF encoding.
All i/o circuitry has been carefully designed and routed for low-noise performance, with buffered inputs and outputs scaled to accept eurorack signals up to ±10 V.
Synchronization Settings
Spdf will operate only when locked to sample clock of 44.1 kHz or 48 kHz, either from an external source (S/PDIF Rx signal) or internally generated. Three DIP switches on the back of the module may be used to configure these settings, as well as to select DC or AC coupling of the inputs.
SYNC INGenerates and syncs to internal sample clockEXSyncs to external clock from S/PDIF Rx
RATE 48Sets the sample clock rate to 48 kHz44
Sets the sample clock rate to 44.1 kHz
CPLInput CouplingDCEnables DC-coupling for CV signalsACEnables AC-coupling for audio signalstechnical specs
- Width: 5 HP
- Depth: 1.0 in (25 mm)
- Weight: 1.2 oz (34 g)
- Resolution: 24 bit, 44.1/48 kHz
- Max I/O Level: ±10 V (20 Vpp)
- Noise Floor: -93 dBFS
- Power: +12 V 55 mA, -12 V 10 mA
