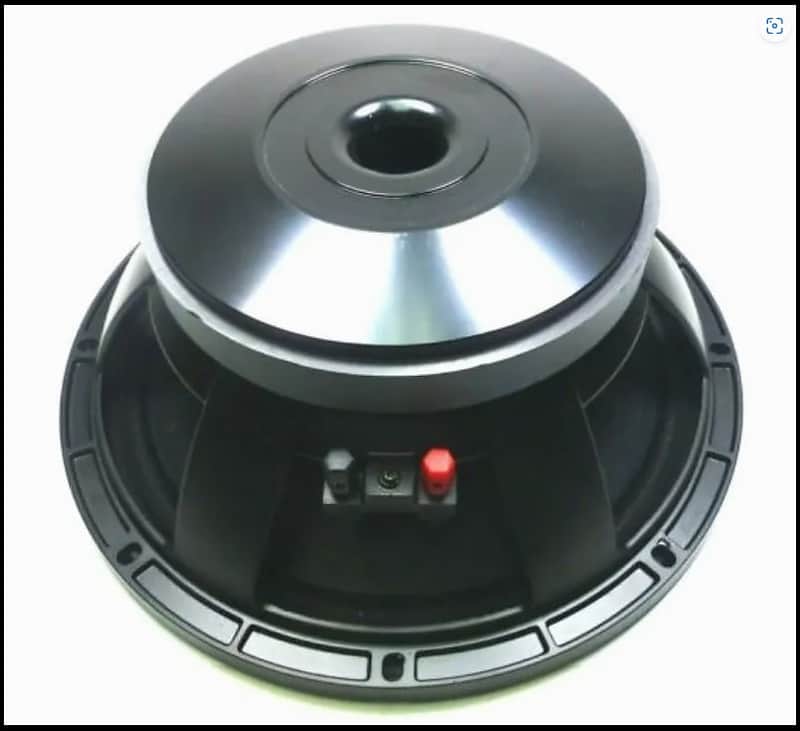

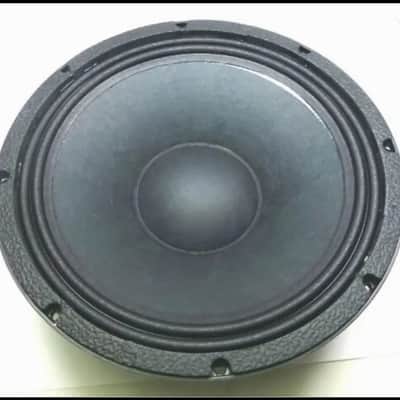

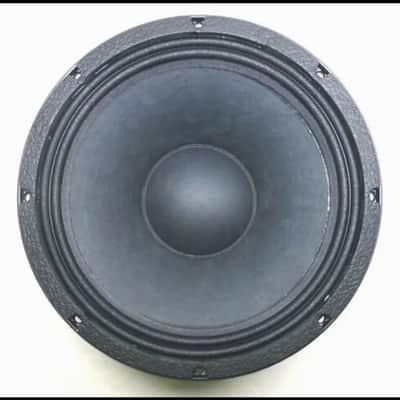

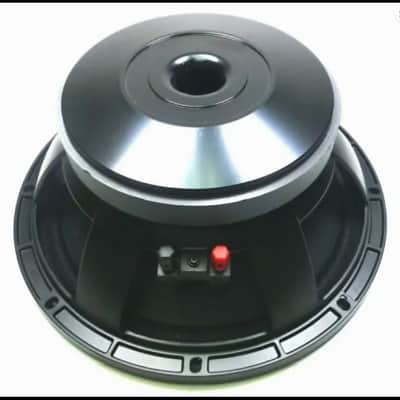

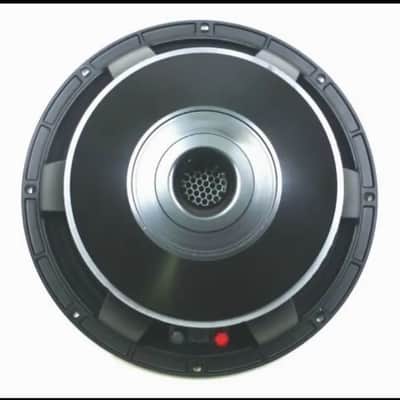

NEW! LASE 12LM-1000 - 12" Bass / MidBass Speaker 3" Voice Coil
Very high efficiency and extended linearity are special features of LASE 12LM-1000 midbass transducer. Efficient heat dissipation is ensured by a radiator that is part of the basket design. The aluminum voice coil provides a properly aligned Q factor and high sensitivity.A specially designed shallow triple-roll surround guarantees low midrange distortion, and a fiberglass former voice coil, polycotton suspensions, and treated cone contribute to the LASE 12LM-1000's very high power handling. When mounted in compact size bass reflex enclosures, the good combination of short voice coil, very low mass, and suspension control makes the LASE 12LM-1000 an excellent choice for high power, 2-way satellite applications.The LASE 12LM-1000 is a popular replacement speaker for EAW, Yorkville, Sonic, Martin Audio, and other subwoofer speaker systems.
HighLights:
- Professional/Concert Touring Midbass Driver.
- 3" Edgewound Aluminum Voice Coil on a fiberglass former.
- 800 watt continuous Program Power Handling.
- High Sensitivity and Low Distortion.
- Shaped shallow triple-roll damped surround.
- Primarily designed to be horn loaded in medium and long throw system.
- Inverted dust cap minimizes cone distortion, improves coupling to a phase plug.
Specifications:
- Nominal Diameter : 12 "
- Power Handling (rms) : 400 watts.
- Power Handling (max) : 800 watts
- Impedance : 8 ohm.
- Frequency Response : 50 to 3,000 Hz.
- Maximum Linear Excursion (Xmax) : 5mm
- Sensitiviy 101db 2.83/1 m
- Voice Coil Diameter : 3"
- Weight : 19 lbs / 8.61 kg.
