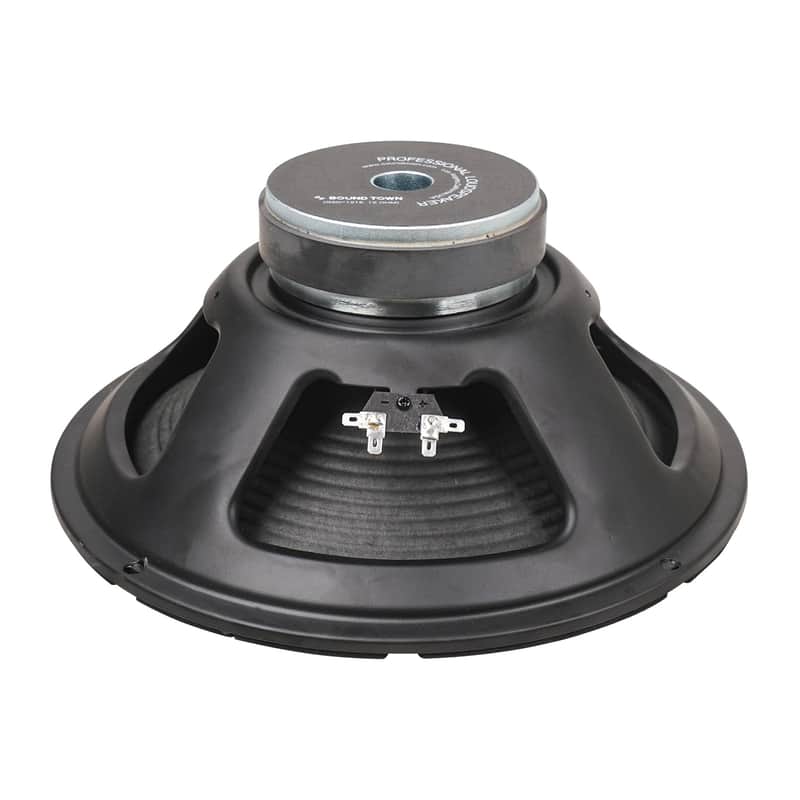

GSD-1208 | 12-Inch 65 Watt Replacement Guitar Speaker, 8-Ohm

The Sound Town GSD-1208 is a 12“ replacement guitar speaker. It exhibits a neutral sound without unwanted colorations and achieves the feel and response of a conventional guitar speaker. It delivers 75Hz-5KHz frequency response, offering cleaner vintage British voiced tone with a round, punchy low-end, warm, rich mids and open, clear highs. It’s an ideal replacement for Eminence/ Celestion speakers.

FEATURES

• 12“ replacement guitar speaker, 8-ohm
• Delivers round, punchy low-end, warm, rich mids and open, clear highs
• 75Hz-5KHz frequency response
• Exhibits a neutral sound without unwanted colorations to overpower your signal
• Replacement for Eminence/ Celestion speakers


SPECIFICATION

Details

Model GSD-1208 Resonance 75Hz Nominal Basket Diameter 12" Frequency Response
75Hz - 5KHz Nominal Impedance 8Ω Sensitivity 97±3dB Power Rating
60W RMS Magnet Weight 35 OZ Peak Power 120W Peak Voice Coil Diameter 1.75" VC

Thiele & Small Parameters

Resonant Frequency (fs) 75Hz Compliance Equivalent Volume (Vas) 68.5 Ltr DC Resistance (Re) 6.6Ω Mechanical Compliance of Suspension (Cms) 0.161 mm/N Mechanical Q (Qms) 9.036 BL Product (BL) 8.35 Tm Electromagnetic Q (Qes) 1.197 Diaphragm Mass Inc. Airload (MMs) 25.727 g Total Q (Qts) 1.057 Surface Area of Cone (Sd) 547.4 cm2

Mounting Information

Efficiency Bandwidth 65 Baffle Hole Diameter 11.2", 284mm Sealed --
Installation Position Diameter 11.6", 294mm Vented --
Mounting Holes Diameter 4-0.3", 7.6mm Overall Diameter 12.1", 308mm Net Weight 6.24lbs, 2.83kg Depth 5.04", 128mm

Materials of Construction

Coil Construction Copper Clad Aluminum Cone Composition Paper Cone Coil Former Kapton Cone Edge Composition Paper Edge Magnet Composition Ferrite Dust Cap Composition Cloth Cap Basket Materials Steel


Dimension & Weight

Product Width (in.) ∅12.1" Package Width (in.) 13.6" Product Height (in.) --" Package Height (in.) 13.6" Product Depth (in.) 5.1" Package Depth (in.) 6.6" Product Weight (lb.) 6.2 lbs Package Weight (lb.) 8.7 lbs

Warranty/Certifications

Manufacturer Warranty 1 year
