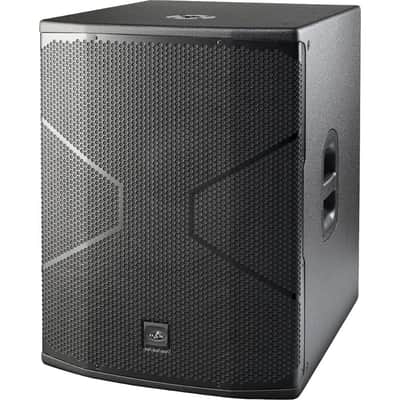

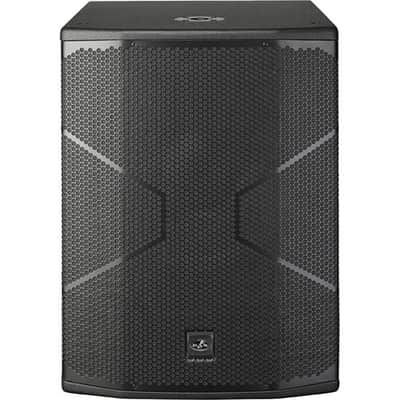

D.A.S Audio Vantec-18A 8" Bass Reflex Powered Subwoofer 2000 Watts

Features

• Powered subwoofer system
• High output 18LX loudspeaker
• Polarity switch (0º180º)
• Filtered output defeat switch
• Variable 80-125 Hz lowpass filter
• Gain control
• Rigging points

Applications

• Concerts and corporate A/V
• Portable and live clubs
• Concert halls, theaters and auditoriums
• Houses of worship

Description

The VANTEC-18A is a powered subwoofer system designed to provide extended bass response for the Vantec-full range cabinets. A 2000 Wpeak advanced Class D amplifier drives a DAS 18LX-long excursion loudspeaker incorporates a 4″ voice coil for high power handling and output.

The VANTEC-18A subwoofer system offers two balanced inputs with stereo filtered output connections for Vantec-satellite systems. The variable crossover ranges from 80 Hz 125 Hz and can be defeated to offer stereo “loop thru” connections. A gain control and polarity reverse feature increase user control over the system. A standard 35 mm pole mount socket allows the VANTEC-18A to be used with satellite systems.

Specifications

PerformanceFrequency Range (-10 dB)

• Loud: 35 Hz – 125 Hz – Deep: 30 Hz – 125 Hz

Maximum Peak SPL at 1 m

• 134 dB

Electronics and ConnectorsNominal Amplifier Power (continuous)

• 1000 W

Nominal Amplifier Power (peak)

• 2000 W

Input Type

• Balanced

Input Impeadance

• 20 kohms

Input Sensitivity

• 3 V (+12 dBu)

Audio Signal Input Connector

• 2 x Female XLR

Audio Signal Loop Thru Connector

• 2 x Male XLR

AC Output Connector

• powerCON NAC3FCB

Current Draw 230 V / 115 V

• 1.5 A/3.0 A

EnclosureEnclosure Construction

• Birch Plywood

Enclosure Geometry

• Rectangular

Rigging

• M10 Rigging Points

Finish

• ISO-flex Paint

Color

• Black

Dimensions ( H x W x D )

• 720 x 545 x 655 mm
  28,3 x 21,5 x 25,8 in

Net Weight

• 40,5 kg ( 89,2 lb )

ComponentsLF Driver

• 18LX

ShippingCarton Dimensions ( H x W x D )

• 820 x 616 x 726 mm
  32,3 x 24,3 x 28,6 in

Shipping Weight

• 44,0 kg ( 97,0 lb )
