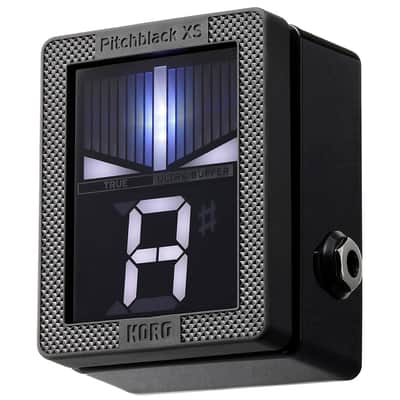

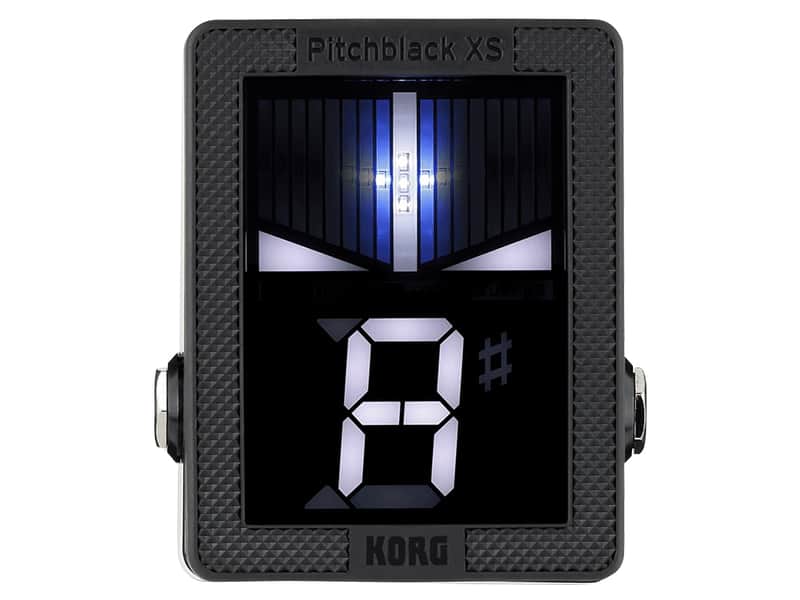

Korg Pitchblack XS Chromatic Pedal Tuner

A new kind of pedal tuner, featuring an integrated display and footswitch.

Switch between true bypass or the newly-developed ULTRA BUFFER.

The Pitchblack XS not only features a true bypass for outputting the sound exactly as it was input, but now includes a built-in ULTRA BUFFER.

Why is this important?

The majority of electric guitars use passive pickups with a high impedance output. When you are using a cable there is a loss of tone, usually high frequencies, after about 6 m (around 18 feet) and this problem gets worse the longer your cable. A buffer boosts the signal over long cables to avoid loss of tone, keeping it clean and clear - even when your pedal is off.

The ULTRA BUFFER enhances the sound quality in bypass mode, so that you can still maintain audio quality even when using a long cable to connect to the tuner, or when inserting the tuner into a complex effects board.

On the Pitchblack XS, you can switch between true bypass and the ULTRA BUFFER, according to your tastes and environment.

FEATURES

• Unique design with a large display in a compact design
• Allows switching between true bypass and the newly-developed ULTRA BUFFER
• Meter LED also offers bright mode settings for high visibility
• Ultra-high tuning accuracy down to ±0.1 cents
• Four meter display modes
• Built-in “just-right tuning” display

SPECS

Scale:  12 note equal temperament

Detection Range:  E0 (20.60Hz)~C8(4,186Hz)

Calibration Range:  A4=436〜445Hz（1Hz steps）

Detection Accuracy:  +/- 0.1 cent (display mode: Strobe)

Input Impedance:  1 M-ohm (tuner on)

Display Modes:  Regular, Strobe, Half-strobe, Mirror

Connectors:  INPUT (mono 1/4” jack), BYPASS (mono 1/4” jack), DC 9V IN

Power Supply:  AC adaptor (9V)

Power Consumption:  Maximum 40 mA

Dimensions:  (W x D x H)70 x 80 x 47 mm (including protrusions)

Weight:  198 g

Included Items:  Notices, Rubber feet

Accessories:  AC adaptor (9V)

*All product, company, and standard names are trademarks or registered trademarks of their respective holders.
*Appearance and specifications of products are subject to change without notice.

.
