BAE 1073 Mic/Line Preamp/EQ with PSU

BAE 1073 Mic/Line Preamp/EQ with PSU

The BAE 1073 is a 19-inch rack-mount mic/line preamp and EQ that brings iconic British console sound to any modern studio. This hand-wired, boutique channel strip features an authentic Class A mic/line preamp and DI input with 80 dB of gain, followed by a high-pass filter and a three-band EQ for musical tone-shaping. Built using the exact solid-state circuit topology of the original vintage module and original-spec components, including Carnhill St. Ives transformers, Elma switches, and Canford wire, the BAE 1073 delivers the same rich harmonic detail and generous headroom that made the 1073 so legendary. The included external power supply provides stable voltage and low-noise performance for up to two units. Painted in an RAF-style blue-gray color scheme with blue, white, and red accent knobs, the BAE 1073 brings instant British sound and style to any studio.

ICONIC CLASS A, TRANSFORMER-COUPLED DESIGN

The BAE 1073 mic pre is based around a vintage-style Class-A circuit topology with original-spec St. Ives (Carnhill) transformers driving both the input and output stages for smooth low-end warmth and musical saturation at high gain levels. Elma switches ensure rock-solid reliability, while premium Canford wire maintains pristine sonic integrity throughout the signal path. Simply connect your mic, line, or DI source, dial in input and output gain, and let the transformer stages infuse your sound with the harmonically rich punch heard on countless classic records.

IDENTICAL TO ORIGINAL VINTAGE MODULES

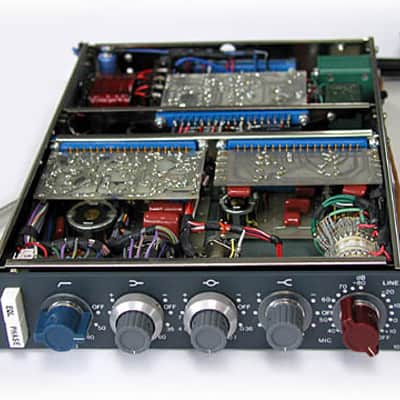

Every detail of the BAE 1073 mic/line preamp mirrors the classic solid-state circuitry, components, aesthetics, and sound of its 1970s predecessors. Using original-spec capacitors, resistors, and transformers throughout the entire unit, arranged in the exact topology of the original vintage modules, the BAE 1073 reproduces the legendary 1073 sound to a T. Enjoy the characteristic frequency response, dynamic behavior, and sonic coloration that defined the British rock 'n roll sound.

STRAIGHTFORWARD FRONT-PANEL CONTROLS

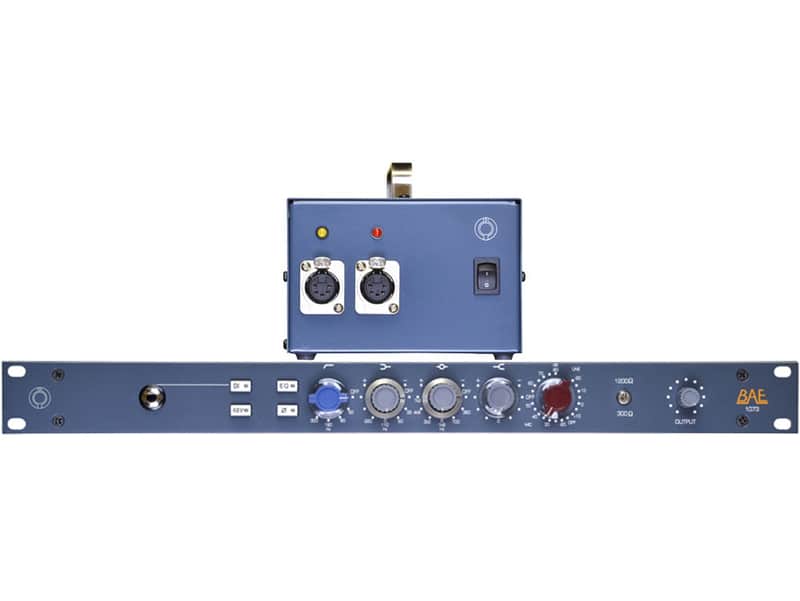

Even the layout of the BAE 1073 matches the original console module. From left to right, you'll find the DI input jack next to clearly labeled buttons for input switching, phantom power, polarity, and EQ in/out. The five-position high-pass filter includes 50 Hz, 80 Hz, 160 Hz, 300 Hz, and Off settings with an 18 dB-per-octave-slope. Just like vintage modules, the EQ section includes a 35 - 220 Hz low shelf, a midrange band covering 360 Hz - 7.2 kHz, and a high shelf fixed at 12 kHz for dialing in that classic British edge. The Gain control features 5 dB increments up to 80 dB, and the Output knob allows for final level adjustments. There's also an impedance switch with 300Ω and 1,200Ω settings, making it easy to dial in the right settings for any source.

INCLUDED POWER SUPPLY

The BAE 1073 preamp ships with a linear power supply capable of powering up to two modules. Designed for low ripple and stable voltage delivery, the BAE 1073 PSU minimizes noise and ensures consistent performance day in and day out. Featuring the same premium build quality and solid chassis construction as the mic preamp/EQ itself, the BAE 1073's dedicated power supply guarantees reliable operation and protects your sound from noisy and unstable power sources.

BAE 1073 FEATURES:

• Vintage-style microphone/line/DI preamp/EQ with Class A, hand-wired design
• Solid state microphone preamp provides 80 dB of gain with musical harmonic distortion
• Three-band EQ features low and high-frequency shelves and a peaking, fixed-Q midrange band
• Versatile five-position high-pass filter
• Built with original-spec components, including St. Ives (Carnhill) transformers, Elma switches and Canford wire throughout the entire product
• Front-panel DI input for Hi-Z instruments
• 48 V phantom power, polarity, and EQ in/out switches
• Rear-panel I/O includes balanced XLR connectors for mic input, line input, and +4 dB output
• Impedance switch with 300 and 1,200 ohms settings
• Includes robust power supply capable of powering two channels of BAE 1073 preamp/EQ units
• Solid chassis construction and robust I/O connectors to last a lifetime
