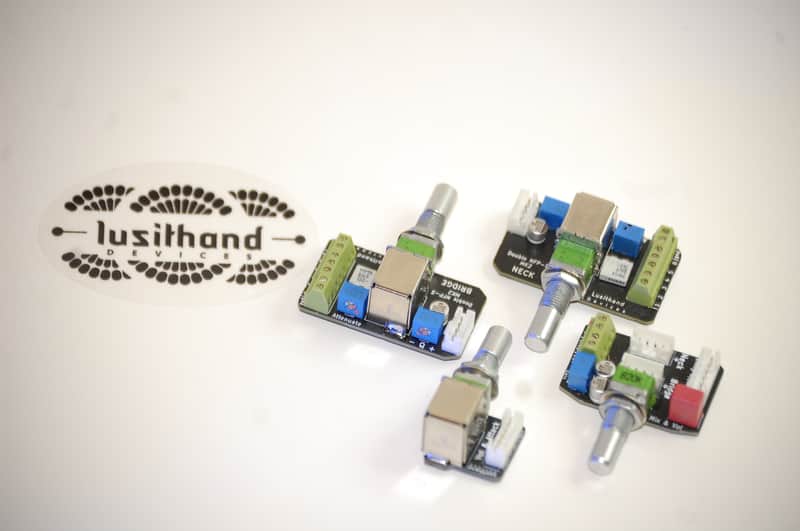

Double NFP-Special MKII

The 'Double NFP-Special MKII' preamp is, specifically, designed to use with MULTICOIL pickups (are 4,5 or 6 pole pieces with individual coils wrapped around each pole piece, double that for humbuckers)that benefit from a "one humbucker per string" coil wiring. The idea was to get a Humbucker pickup with one pair of coils per string and combine them electronically for minimum loading effect and maximum string to string isolation. This method of mixing the coils brings maximum output, clarity and punch out of the pickups without any adverse loading effects. The pickup then goes through the tonal enhancer part of the circuit where the filter preamp works its magic.

The filter potentiometer has a sweepable resonant peak that ranges from 100hz to 2.5 khz on the NECK and from 200hz to 2.5khz on the Bridge . You can also boost the cutoff frequency(resonant peak) by pulling up on the potentiometer.

The Volume potentiometer has an 'Attack' function, via push-pull switch, that boosts between 4 to 8Khz. The gain, for this function, can be adjusted on the 'Attack' gain trimpot located on the Blend board.

The preamp runs from 9 to 27 volts and it has a current draw of +- 3.4 mAh(9v). It offers 6x inputs so that you can wire any multicoil pickup up to 6 strings.

Attack trim pot: Adjust the gain level of your Treble attack function.

Atten. trim pot; if pickups are too hot, causing clipping, use these trimmers for attenuation. It ships set to 0 attenuation.

Q trim pot: increase the resonance for each filter using these trimmers labelled 'Q'.

Dimensions:

Filterboardsx2:W:4,4cm;H:2,6cm;D:1,7cm
Potentiometers: Hole size is 6.4 mm and bush height is 10mm. (to be used with 6.4mm knobs)

Blend board x1: W:3.6cm; H: 2.35cm; D: 1.5cm

All solderless wiring included.

MSRP ; $390.00
