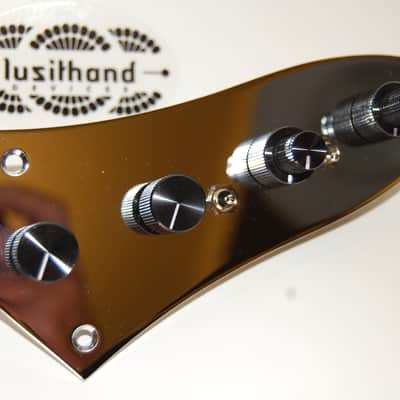

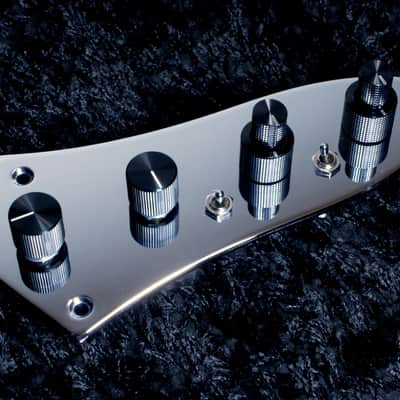

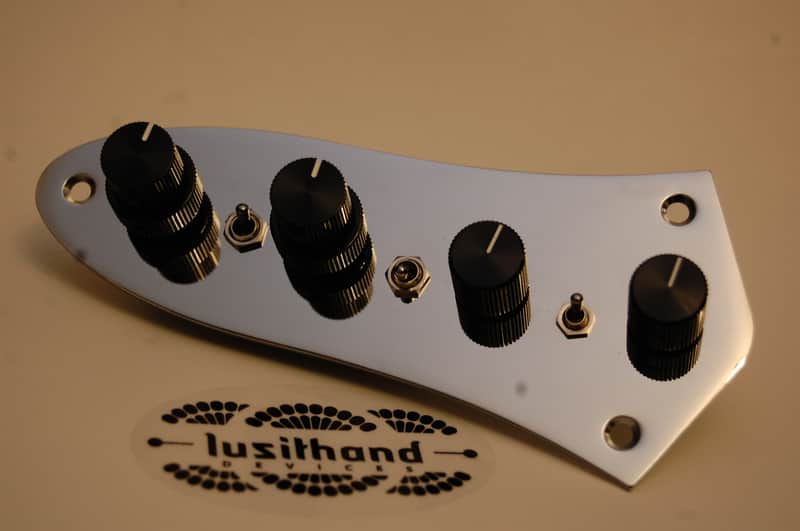

Lusithand Devices 800 JP on board bass preamp Jazz plate mounted - Chrome

IMMEDIATE SHIPPING

The 800 JP (was TS) preamp borrows the EQ section of the famous GK800RB amplifier and squeezes it into an onboard preamp, loaded onto a Jazzplate, for Jazz bass lovers. This tone stack has some serious high freqeuency power and a very deep bottom end, just like the amplifier it's based on.

The Hi-mid and Treble controls are highly interactive; as is the Lo-Mid and Bass controls.

This Jazzplate comes with two options; Neck Volume and Bridge Volume or Master Volume and Blend please specify which you prefer.

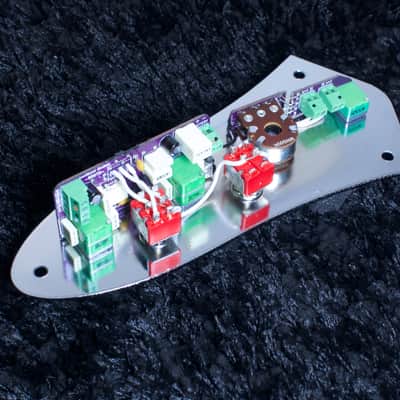

Installation : This is a solderless preamp.

-Treble: Boost and cut around 4khz -Bass: Boost and cut at around 60Hz

-Hi- Mid: Boost and cut at around 1khz
-Lo- Mid: Boost and cut at around 250Hz

-Switch 1: Active or Passive

-Switch 2: Three position switch. 1. Off. 2. Tone curve one. 3. Tone curve two. Works with active & passive.

-Voltage: 9 to 27VDC Current Draw: 2mAh (9v)

Warranty and Conditions: Any of our products, that are defective, will be replaced/ fixed and all expenses will be covered once it has been verified that the problem isn't a result of bad handling or negligence on the owners part. If the damage is due to negligence or wrong handling, warranty is lost and a cost can occur for the devices repair (the shipping costs will not be covered in such cases).
Warranty is valid for 2 years after the date of purchase.

MSRP : $320.00
