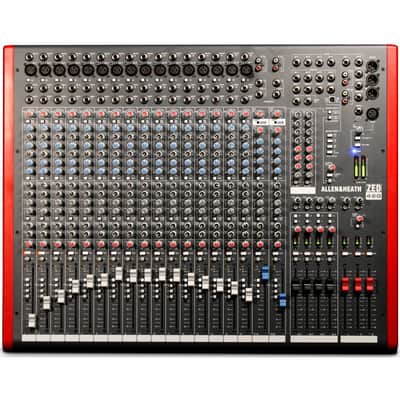

OVERVIEW:

ZED-420 is excellent for bands, houses of worship, theatres or AV applications. It has a truly professional feature set, which will fit any sound reinforcement application and professional PA hire stock. ZED-420 has Configurable USB audio in/out makes it easy to capture stereo recordings, 16 mic or line inputs plus 2 dual stereo inputs, 4-band EQ with MusiQ, 4 sub-groups, 6 auxiliary sends and a 7×2 matrix.

FEATURES:
* 16 mono channels
* 2 dual stereo inputs with 4-band EQ
* Neutrik mic XLR
* Neutrik 1/4 inch jacks
* Channel insert
* Super wide gain ‘DuoPre’ mic line input
* 4-band EQ with 2 swept mids and in/out switch
* Illuminated mute
* Sound image pan
* Illuminated PFL & peak warning indicator
* ALPS 100mm faders
* 6 auxiliary sends (2 pre, 2 post, 2 pre/post)
* 4 sub-groups fed from each channel
* All inputs with level control
* 12 bar meters
* L, R and M main mix outputs
* 2 matrix sections available; can send output to USB
* Individual channel 48V phantom power
* Direct output on every mono channel
* Peak and signal indication on every channel
* Configurable USB stereo audio in/out
* Master level controls on all outputs
* Easy to use layout – all connections and controls on top surface

SPECIFICATIONS:
* Type: Analog
* Channels: 20
* Computer Connectivity: USB (2 x 2)
* Faders: 25 x 100mm
* Inputs - Mic Preamps: 16 x XLR
* Phantom Power: 16
* Inputs - Line: 16 x 1/4" (CH 1-16), 4 x 1/4" & 4 x RCA (CH 17-20 Stereo), 2 x RCA (2 TRK)
* Outputs - Main: 2 x XLR (Main), 1 x XLR (Mono)
* Outputs - Direct: 16 (CH 1-16)
* Outputs - Other: 2 x 1/4" (Matrix), 2 x RCA (2TRK), 4 x 1/4" (Group)
* Aux Sends: 2 x Pre, 2 x Post, 2 x Pre/Post
* Send/Return I/O: 6 x 1/4" (AUX)
* Busses/Groups: 4 x Groups
* Channel Inserts: Yes (CH 1-16), 4 x 1/4" (Group)
* Headphones: 1 x 1/4", 1 x 1/8"
* USB: 1 x Type B
* Talkback: Yes
* EQ Bands: 4-band, Sweepable Hi- and Low-Mids (CH 1-16), 4-band (CH 17-20 Stereo)
