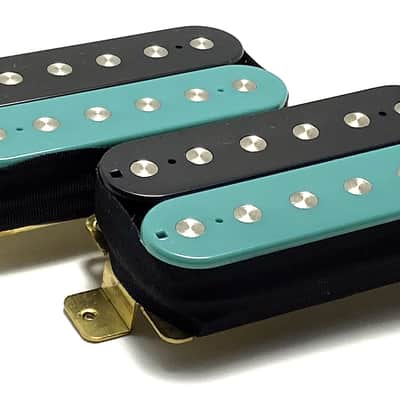

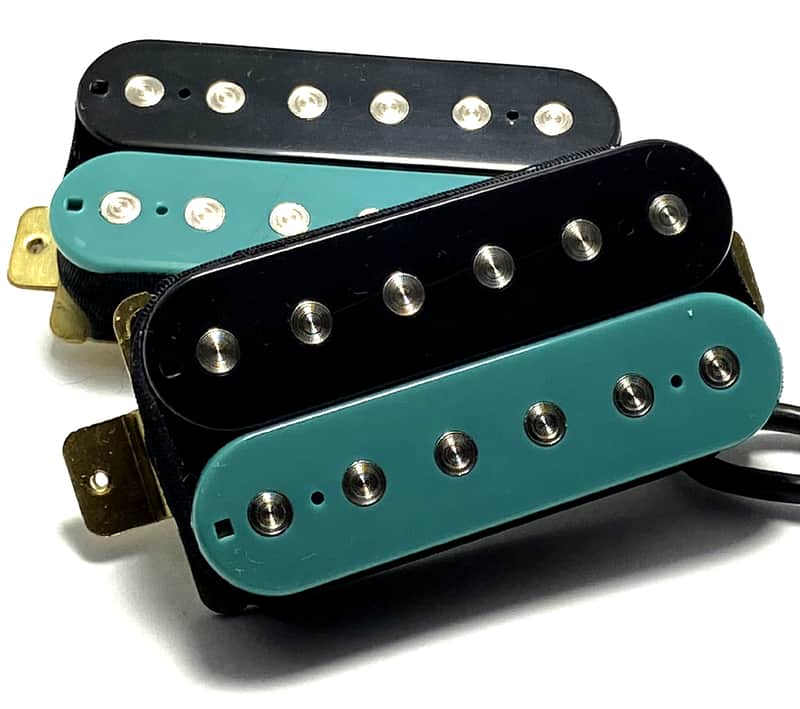

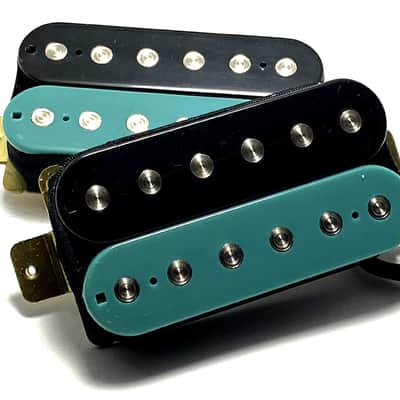

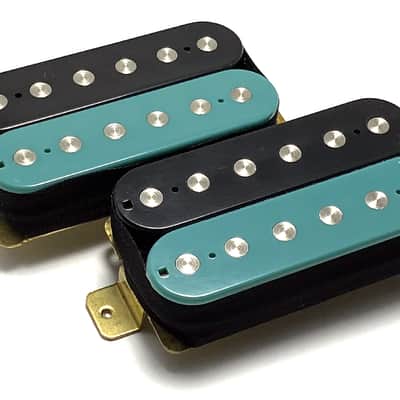

Dragonfire Zebra Screamers ~ Teal Black Zebra HH Set Style #4 ~ Bridge + Neck Humbucker Pickup Set

Dragonfire Zebra Screamers, Teal Black Zebra Set Style #4 ~ Passive Humbucker Pickups ~ Humbucker Pickup Set (Bridge + Neck), Collaborative HH Set Style: 1 qty Bridge Position Humbucker Pickup + 1 qty Neck Position Humbucker Pickup

Dragonfire Screamers are the ultimate humbucker for high output and clarity in a straightforward style with flat top slug style polepieces. These humbuckers provide crisp, clean tone and are great for a wide variety of styles.

Screamers are hot wound with outstanding output and modern ceramic magnet performance. Help your playing come to life with these humbuckers that can provide you with the ability to cut through the mix and be heard. They’ll help give you output without the mud, allowing for power and articulation.

Each Zebra Screamer color style comes in different zebra combinations. Be sure to check the images provided to see the zebra color style/orientation offered in this listing. Check our store for other Screamer style options and contact us if you have any questions.

~~Product Highlights~~

*6 String Passive Humbucker Pickup Style

*Flat Top, Slug Style Exposed Polepieces

*Uncovered Open Coil Bobbin Style

*Ceramic Magnet Style

*4 Conductor Wiring (4 Wire Pickup)

*Coil Split (aka Coil Tap) & Phase Reversible

*Hot Wound, High Output, Crisp & Clean Tone

*Wax Potted for Squeal Reduction

*52/50 Spacing (Standard Spacing)

*Standard Style Short Mounting Legs

*Standard Insulated Lead Wire (Modern Stranded Style)

*Pickup Mounting Screws & Springs Included

*500K Pots & 0.047 Tone Caps Recommended (available separately)

~~Approximate Measurements~~

*Bridge Polepiece Spacing: 52mm

*Neck Polepiece Spacing: 50mm

*Approximate Bridge Output: Wound to ~16.8K

*Approximate Neck Output: Wound to ~8.3K

*Pickup Length: 68mm (84mm including mounting flanges)

*Pickup Width: 37mm

*Pickup Depth: 16mm (22mm including mounting flanges)

*Mounting Screw Spacing: 78mm

~~Installation Information~~

The included pickup wire color codes will let you know the hot, ground, and coil split wire colors for these 4-wire pickups. Basic instructions for a SAMPLE standard installation with standard components may be included. Due to the vast and varied nature of possible components, performance requirements and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use the basic information we provide to match up with any diagram or instructions you choose to use. Contact us prior to purchase if you have any concerns or questions.

Please note that different manufacturers and pickup styles use different wire color code systems. It is important to use the Dragonfire wire color codes provided with your order.

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.

If you’d like to update your wiring and have us create a new wiring system for you, check out our Wiring Harnesses.

~~Purchase Notes~~

Please ask any questions prior to purchase.

Buyers assume all risk of use; sales are only offered to those competent to safely and lawfully purchase and use items.

Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material. Ask any questions regarding options, measurements, installation requirements, special requests, or anything else prior to purchase.

Detailed instructions for installation are not included. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice. Take your time for installation; do not use power tools and do not over-tighten or apply too much pressure on components.

Inspect your order upon receipt. Contact us prior to installation if you have any questions.
