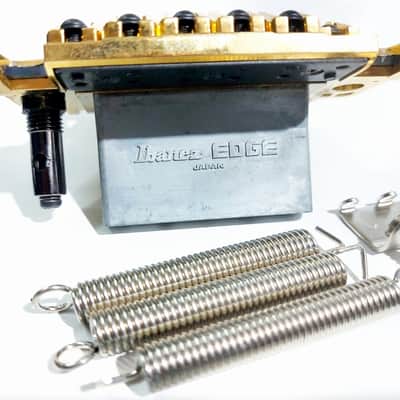

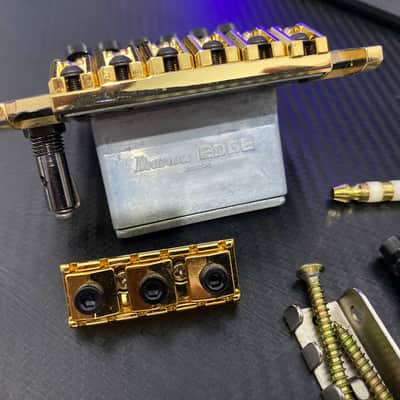

Edge Tremolo - Gold | 2ED1R31G | "Edge Japan Manufactured by Gotoh" | DHL Express Delivery Included |

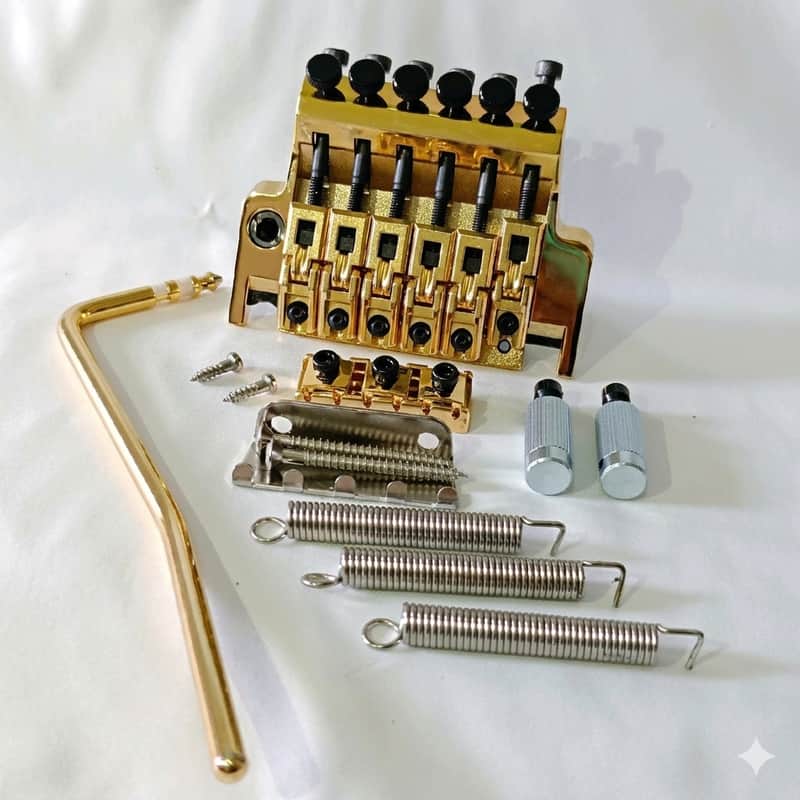

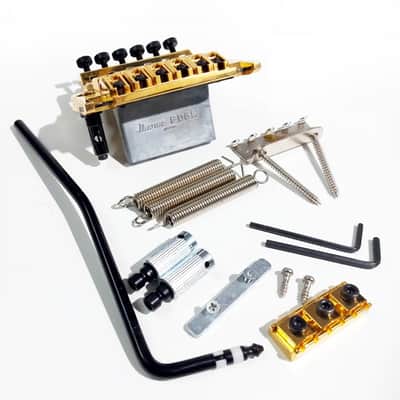

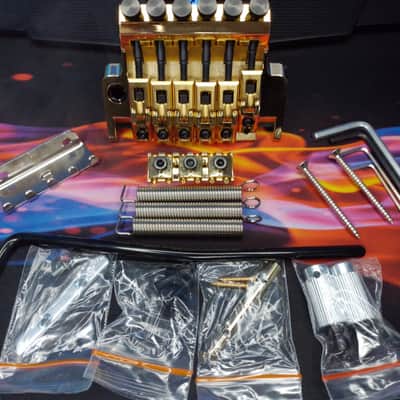

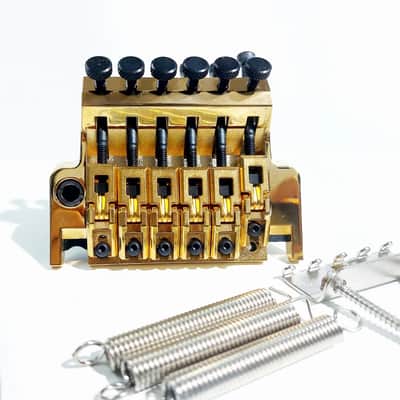

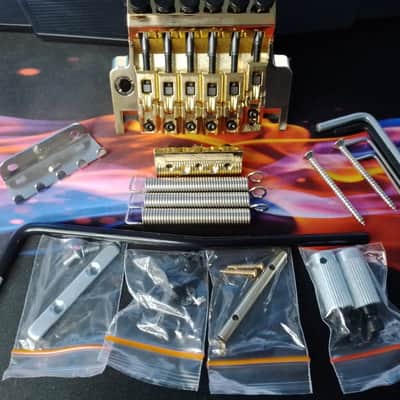

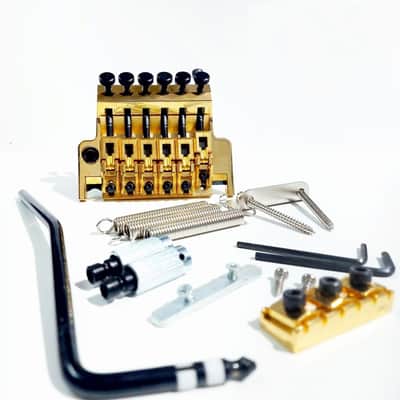

IBANEZ EDGE GOLD [2ED1R31G] - TREMOLO ARM BLACK ONLY
Genuine Ibanez Tremolo Bridge Made in Japan

The Edge tremolo is a double locking tremolo bridge developed and manufactured by Gotoh for Ibanez. It is sometimes referred to as the "Original Edge" to differentiate it from the various versions that have been released since. The Edge is acclaimed by many guitarists as the finest trem system available in the market. It was introduced in 1986, discontinued in 2003 and brought back in 2010.

- Use in Steve Vai Ibanez PIA/JEM/UV models

Design

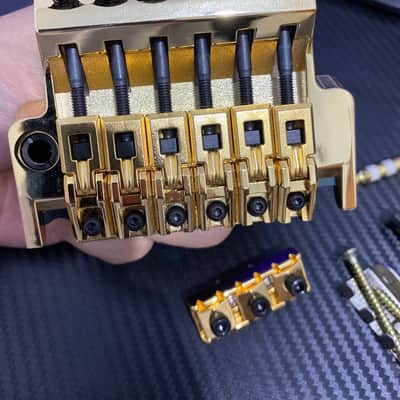

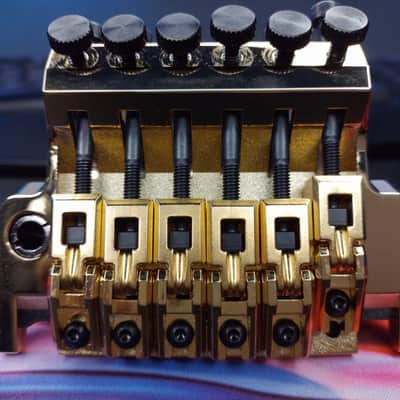

The Edge is based on the original, patented Floyd Rose tremolo design which Ibanez & Gotoh licensed. As such it incorporates a double locking design, meaning that the strings are retained at both the bridge and the nut. By effectively minimizing the length of string the Floyd Rose design allows players to perform crazy manipulations of the tremolo while enabling the guitar to return to tune when the tremolo was released. Fine tuners on the bridge facilitate tuning without unlocking the nut. As with the traditional Fender-style synchronized tremolos which came before, the Floyd Rose used a set of springs and an adjustable claw located under the guitar body to equalize the tension of the strings and allow the tremolo to float. A set of six saddles which can be moved independently forward or backward to achieve intonation retain the strings at the bridge. Meanwhile the Top-Lok III locking nut pairs with the Edge to secure the strings at the headstock.

Key improvements of the Edge design over the original Floyd Rose include replaceable knife edges, a less bulky saddle with fewer sharp edges, more overall mass (to increase sustain), steel sleeves in which to mount the anchor studs and a pop-in arm. The bass and treble side pivots are different shapes to minimize side-to-side movement. The body of the tremolo is produced using lost-wax casting which allows the use of a denser metal to maximize harmonics and sustain. The fine tuners on the Edge are positioned well back on the rear of the unit to prevent interference when employing muting techniques with the strumming hand. The Edge's pop-in tremolo arm is secured by a spring and friction to prevent the bar from rotating is provided by nylon bushings that need to be occasionally replaced.

When it was introduced for 1986 on certain Pro Line and Artist series models the Edge was surface mounted on the guitar top. However with the introduction in mid-1987 of the JEM777 and RG550 a cavity was routed in the body below the tremolo to allow the player to manipulate the tremolo either by pushing down (to lower the pitch) or pulling up (to raise the pitch). Also added in 1987 were locking studs (small grub screws installed inside the pivot anchors which prevent movement when screwed down) and a retainer to prevent the springs from slipping off the tremolo block.

The overall height of the Edge tremolo in the cavity can be adjusted by raising or lowering the height of the studs. The height of the individual saddles is not adjustable, but the radius of the base plate matches the 430mm (17") radius of the fretboard on the Wizard neck. A version of the Edge made for the Joe Satriani series guitars has a baseplate with a radius of 270mm (10 5/8").

Although the knife edges of the Edge were designed to be replaceable, Ibanez (nor Gotoh) has never actually offered replacement parts. Even so, the Edge has proven quite durable, and there has been little outcry from the guitar community for knife edge replacements.

The Edge was paired in 1986 on some high end models with the Back Stop stabilizer, however the Back Stop was short lived, disappearing after 1987.

Please read before buy:

• For U.S buyers, tariff will be handle by DHL upon final delivery, please make a visit to the DHL website to pay the tariff.
• United States of America's Buyers please be aware regarding Tariff that applied by U.S authority since September 2025 we do not accept return regarding the tariff (cost almost 30% from the total amount you paid, excludes the tax you paid upon checkout the item)
• We can do Down price invoice for the expedition's parcel inquiry for certain countries that has high import tax and tariff, just feel free to message me.
• An Order that made on Friday afternoon, would be shipped approximately on Monday after store closed, thankyou.

Note:

Kindly find the proper luthier to instal floyd rose or up down bridge like this kind of bridge, based on my experience from using the most expensive to the cheapest when instaling one, even though you're buy the shopisticated and the most expensive Genuine Germany Floyd Rose but if you do not have any knowledge and technique to instal and set the tuning stability propely, you'll get same result in the end with some china rubbish floyd rose copycat quality, your strings gauge will be always tense and very far from 'free action' style's definition, and will be out of tone even you're lock it tightly, it would be always get out of tone suddenly after you bend it up / down, find the most proper luthier with reputable ability in instaling floyd rose bridge system in your town, cheers :)

Status & Conditions:

- Brand New with no Box, its not a retail version, Flawless.
