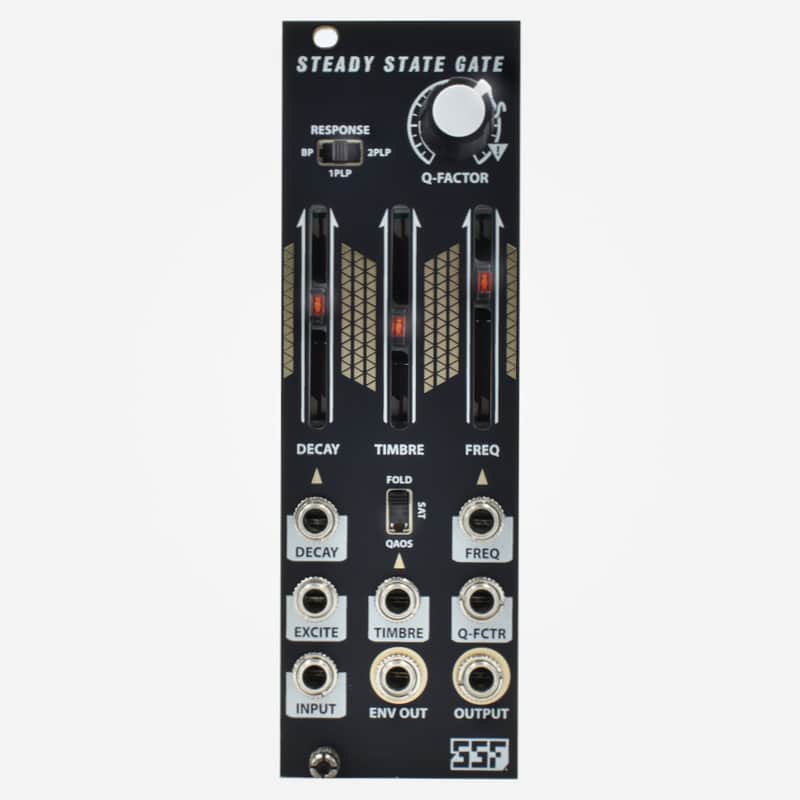

SSF Steady State GATE (Black) Eurorack Resonant Low Pass Gate, Wavefolder, and Saturation Module

The Steady State Gate is a novel and discrete multi-mode Low Pass Gate including an additional stage of timbre modifying circuitries.

Features:

• 6db/Oct Bandpass, 6dB/Oct Lowpass and 12dB/Oct Lowpass Filter Modes

• Manual Frequency Cutoff Control and CV Input

• Manual Resonance (Q-FACTOR) Control and CV Input

• Three Timbre Modifying Circuits - Manual Control and CV Input:

1. Wave Folder
2. Soft Saturation Overdrive
3. QAOS (Resonance Character Modifier)

• Manual and Voltage Controlled Decay Envelope tailored to Vactrol LPG response curve.
• Envelope output for self patching and controlling external modules
• EXCITE Input conditions gates and triggers and external envelopes to 'pluck' the Low Pass gate
• EXCITE is input level sensitive to control the dynamics and emphasis of plucking effects.
• Sensitive to Envelope attack up to about 50mS
• The Steady State Gate can also be used as a standalone VCF or as a stand alone VCA with high end roll off - typical of most traditional Low pass gates. With or without Timbre modifiers in play.

Specifications:

Width: 8hp

Depth: 23mm

Current: +/-75mA
