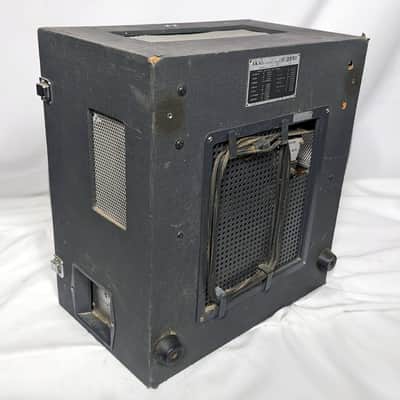

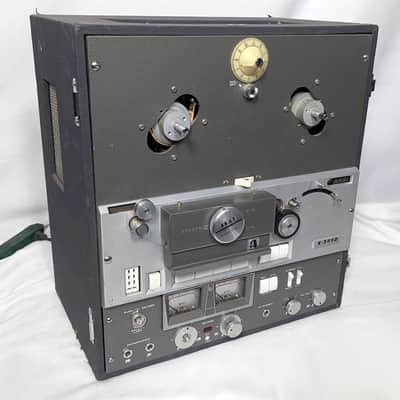

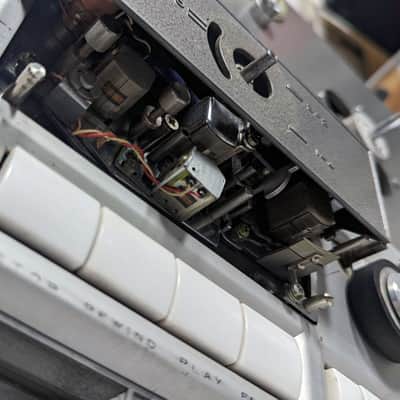

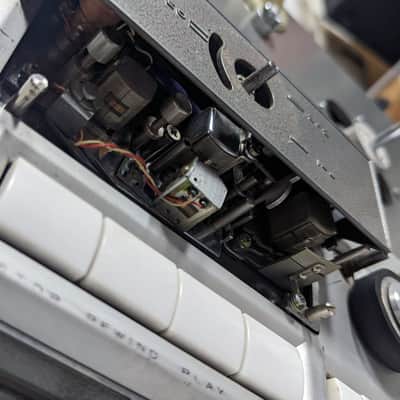

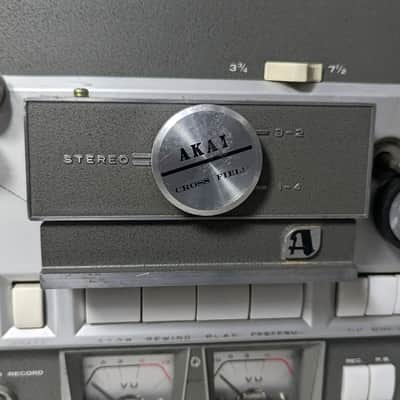

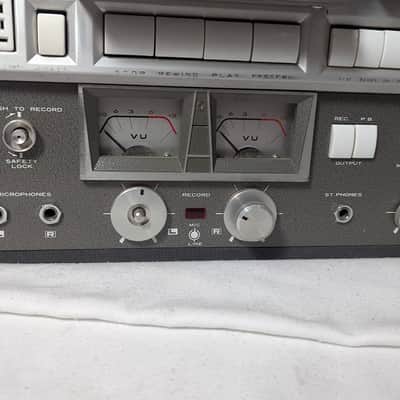

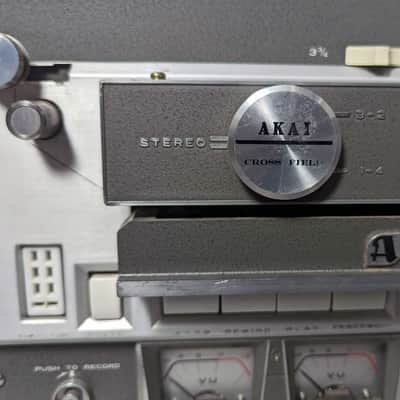

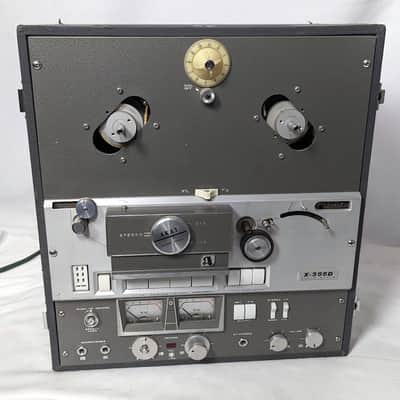

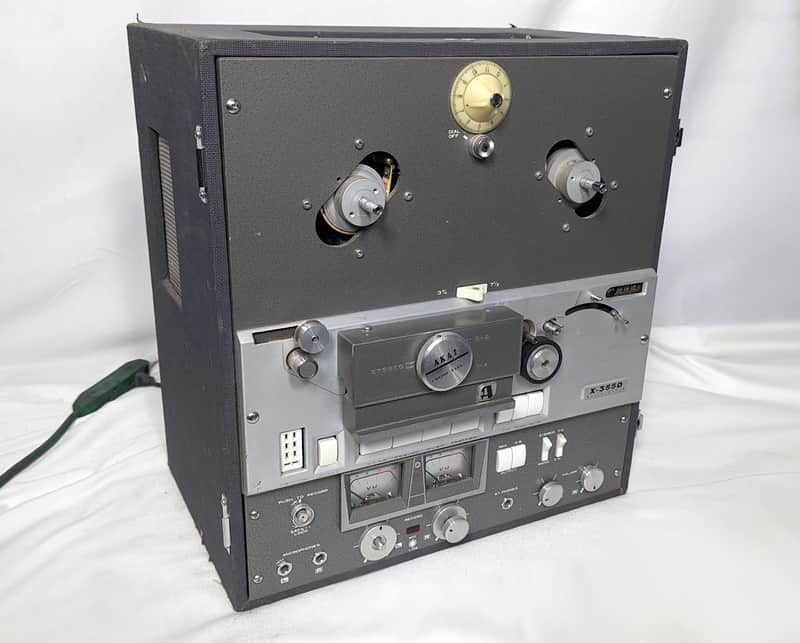

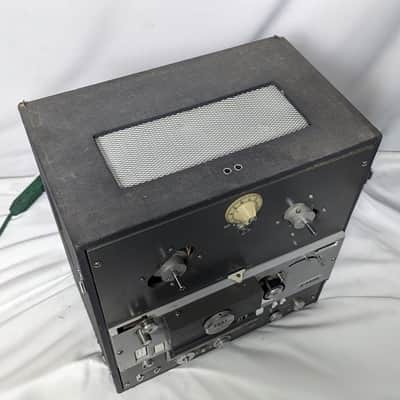

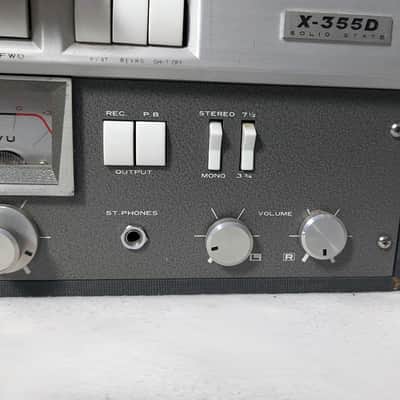

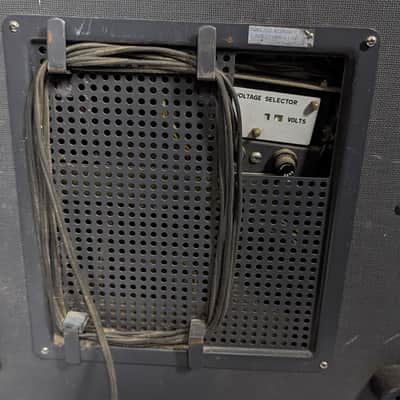

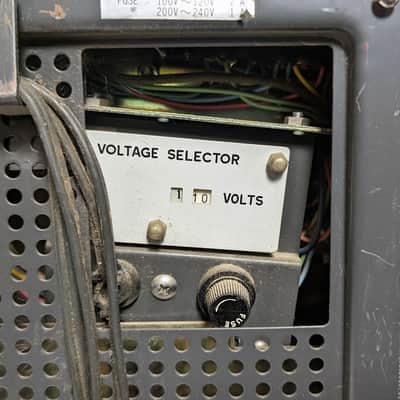

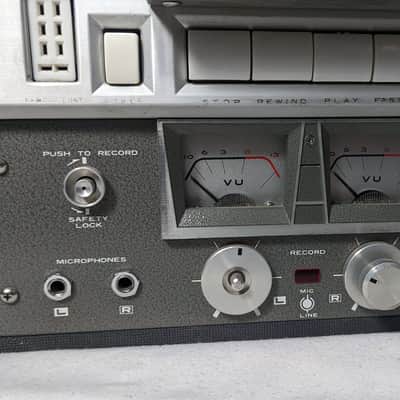

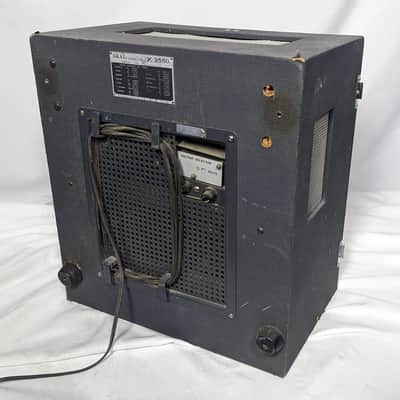

Vintage 1966 AKAI X-355D reel to reel tape player / recorder. This is a rare 4-track solid state model with cross-field, and built-in mono or stereo reverb. This unit was tested and appears to work. Once plugged in, the Power button starts the unit and you can hear it warming up. Running through the Play, Stop, Rewind, and Forward switches all work. I could not test the heads because the NAB adapter/ securely locks are missing along with the circular covers that install around the supply reel and take-up reel motor housings. This prevents me from running a tape through to test the heads. The heads look good though. The Voltage Meter window in the back of this unit is misaligned, but still functional. Please see pictures. The only other thing I noticed was the backlights in the VU meters do not turn on and appear to be burnt out. It is possible that the VU meters are not functional or not powered, but I can't test that without running a tape through it. Please see Youtube demo video.

Specifications:

  • Track system: 4-track, 2-channel, stereo/monaural system
  • Heads: 1 x record/playback, 1 x erase, 1 x bias
  • Motor: 1 x reel drive, 1 x capstan
  • Reel size: up to 7 inch reel
  • Tape speeds: 3 3⁄4  7 1⁄2 ips
  • Wow and flutter: 0.08% (7 1⁄2 ips)
  • Frequency response: 30Hz to 24kHz (7 1⁄2 ips)
  • Signal to Noise Ratio: 45dB
  • Total harmonic distortion: 3%
  • Crosstalk: 45dB

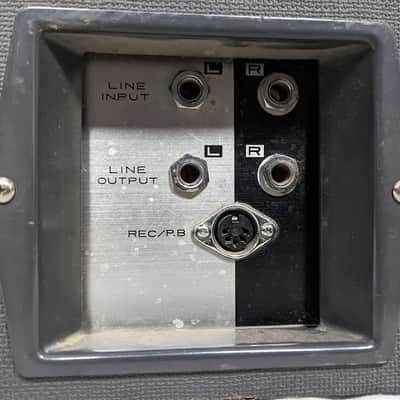

  • Input: 50mV (line), 0.5mV (mic)
  • Output: 1.23V (line)
  • Dimensions: 440 x 407 x 310mm
  • Weight: 28.5kg

Reverb Buyer Protection

Reverb has your back if your item is lost, damaged, or doesn't match its description. Simply report any issues within 7 days and we'll help you get a full refund.Learn more about Reverb Buyer Protection.

Listed2 years ago
ConditionFair (Used)
Fair condition gear should function but will show noticeable cosmetic damage or other issues.Learn more
Brand
Model
  • X-355D
Finish
  • Gray
Categories
Year
  • 1966
Made In
  • Japan
