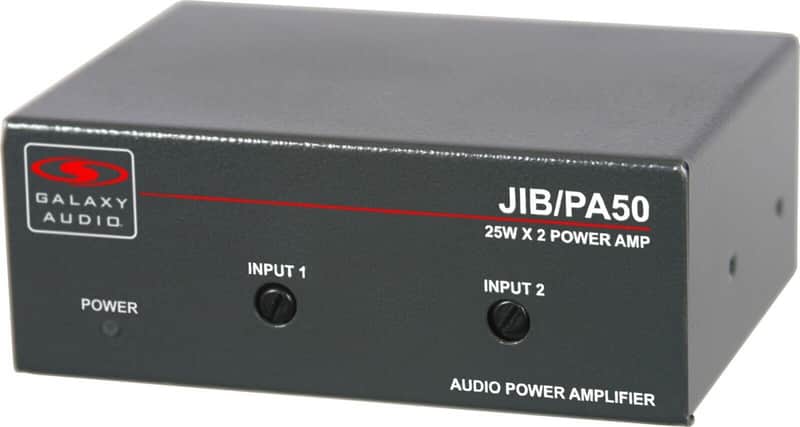

Galaxy Audio Amplifier Small Format 50 Watts - JIB/PA50

Overview

The JIB/PA50 is designed to meet the demands of the school, commercial, industrial, and pro audio installations. Its compact and lightweight form allow for a wide range of applications that need noiseless amplification. The JIB/PA50 has a 50 Watt (2x25W) Energy-Star rated Class D amplifier in only a quarter rack width design. This design allows for the amplifier to be placed where conventional amplifiers cannot be.

The three stereo inputs, microphone input, and separate line and mic gain adjustments allow for connecting the JIB/PA50 to a projector, wireless microphone receivers, and other sound sources quickly. The Energy-Star amplifier automatically goes into standby mode if no input signal is sensed for 20 minutes, dropping power consumption to only 0.8W, saving energy and money, while extending the JIB/PA50 life span.

Great for classrooms, boardrooms, conference rooms, and small systems

• Output 50 watt (25 watts RMS per channel)

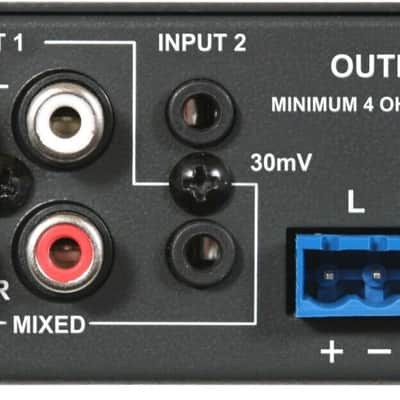

• Three stereo inputs, two on RCA connectors and one on 3.5mm stereo jack


• Balanced sub-line level input summed to both channels


• Stereo input can be controlled externally with 10K pot


• Energy-efficient amplifier

Specifications

Frequency Response

20Hz - 20kHz, ±1dB @ 1 watt

S/N

>80dB 20 - 20kHz at maximum output

Input 1 3 Line Level Inputs (Input 1)

Stereo unbalanced;

Two on a pair of RCA connectors each;

One on 3.5 mm stereo mini jack;

all 3 mixed together pre-volume control

Impedance

>18k Ohms unbalanced

Nominal Level

-10dBV (316mV)

Maximum Level

+20dBV (10V) at 1% THD

Input Level Sensitivity

-10dBV (316mV)

1 Sub Mic Inputs (Input 2)

"Balanced; on 3.5 mm stereo mini jack;

mixed evenly to left and right

channels post volume control"

Impedance

>18k Ohms unbalanced

Nominal Level

-30dBV (31.6mV)

Maximum Level

+20dBV (10V) at 1% THD

Input Level Sensitivity

-30dBV (31.6mV)

Speaker Outputs

Stereo speaker output on phoenix block connectors optimized for 18 AWG wire

Amplifier Type

Class D

Output Power

Continuous power with full load and 1% THD

4 Ohm: 25 Watts RMS per channel

8 Ohms: 14 Watts RMS per channel

Damping Factor

>30

Automatic Standby

Standby mode activates if no input signal is detected for 20 minutes. Once an input signal is detected the unit resumes normal function.

Controls

3 pin euroblock connector for remote control

Pin 1 =10V

Pin 2 =variable voltage or mute

Pin 3= GND

Power Supplied By

External power supply 100-240VAC, 50/60Hz auto-switching to 19V DC 3.4A

Dimensions

1.7" x 4.3" x 3" (43 x 109 x 76 mm) (HxWxD)

Weight

12.35 oz (350 g)
