LD System MAUI 44 G2 W Cardioid powered Column Loudspeaker, White

LD System MAUI 44 G2 W Cardioid powered Column Loudspeaker, White

• Professional column PA system with 1500 W RMS and 132 dB max. SPL
• Cardioid  column for controlled low- and mid-range frequency dispersion and  cardioid subwoofer application (with additional subwoofer)
• TrueWireless™ stereo technology for wireless stereo pairing of two column systems
• aptX™ coding and advanced audio coding (AAC) for high-resolution Bluetooth® streaming
• BEM-optimized  high-frequency waveguide for uniform dispersion pattern, phase plug for  coherent mid-range wavefront and flow-optimised bass-reflex ports
• DynX® DSP technology for distortion-free sound at maximum volume
• Automatic setup detection
• Fast and simple assembly without stands or cables
• Rugged subwoofer housing made out of polyurea-coated birch plywood and lightweight, powder-coated aluminium column

Description

• Column  systems have literally revolutionized numerous application areas for  bands and DJs. Never has it been easier to provide a consistent sound  solution from a simple, inconspicuous PA system - even in large spaces.  The MAUI® 44 G2 is now the practical, powerful solution for the  professional segment.
• The  LD Systems MAUI® 44 G2 W is the flagship of the MAUI series column PAs:  it offers an enormous 1,500 watts of total output (RMS) with a  frequency response of 37 Hz to 20 kHz and a sound-level pressure of 132  dB (peak). With its outstanding sound properties and wide-ranging  functions, this compact column PA is perfect for rental companies,  musicians, small clubs, street festivals and permanent installations.  The cardioid properties of the column elements and the possibility of  creating a cardioid bass with an additional subwoofer further highlights  the professional nature of this sound system.
• The  column achieves a rear attenuation of 18 dB, the subwoofer 15 dB. The  MAUI® 44 G2 W also sets the tone when the two-part column is equipped  with twelve 3.5" neodymium full-range speakers and four 1" HF drivers  with waveguide. The phase plugs on the six upper drivers improve  horizontal directivity, reduce distortion and optimise the sensitivity  below the crossover frequency for the tweeters.
• In  addition, the four tweeters feature specially designed and optimised  compression drivers coupled to a constant directivity waveguide to  provide 120° of coverage across the width and 25° of focused vertical  directivity. The curved design of the waveguide transports more energy  in the high frequencies to listeners standing further away.
• In  the case of permanent installations or when providing sound for  conferences, the TrueWireless™ stereo function makes life a whole lot  easier since it enables two systems to be wirelessly connected for  stereo reproduction. Bluetooth® streaming in HD quality is no problem at  all thanks to aptX™ and AAC Codec, while DynX® DSP technology ensures  distortion-free sound reproduction even at the very highest volumes.  Total and subwoofer levels can be individually adjusted, providing a  perfectly balanced sound in all situations, with a crystal-clear treble,  a crisp mid-range and - thanks to the flow-optimised bass-reflex  channels - a powerful bass.
• Another  particularly user-friendly feature of the MAUI® 44 G2 W is automatic  set-up recognition: if the column is removed to use the subwoofer as a  follower, for example, the display automatically jumps to FOLLOWER and  functions such as Bluetooth and the volume controls for MAIN and SUB no  longer appear.

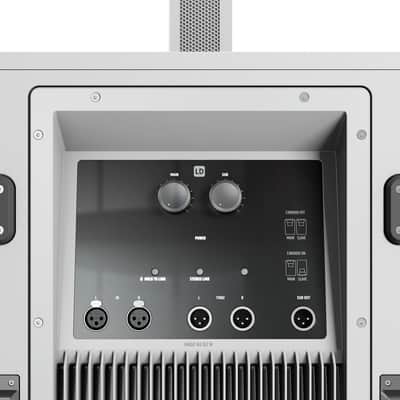

• The  MAUI® 44 G2 W is absolutely top-class when it comes to transportation  and mobile use, too: assembly is quick and simple with no need for  cables or stands - special multi-pin connections are used instead.  Together, the rugged subwoofer housing made of birch multiplex with  polyurea coating and the light, powder-coated aluminium column weigh a  total of less than 48 kg - a weight reduction of 20% as compared to the  predecessor model. The optionally available transport roller board,  carry bag and sub cover do a superb job in day-to-day use. In terms of  inputs, the MAUI® 44 G2 W offers two XLR IN connections, while two XLR  outputs enable a wired stereo configuration of two systems. Meanwhile  the SUB OUT can be used to hook up an additional subwoofer, and the  power supply is via secure and reliable powerCon connection.

General

Product type

• PA Complete Systems

Type

• Powered

Color

• White

Max. SPL (peak)

• 132 dB

Frequency response

• 37 - 20000 Hz

Dispersion (H x V)

• 120 x 25 °

Total Height

• 2256 mm

Weight

• 47,6 kg

Features

• Bluetooth Audio Streaming, DSP-based Signal Processing, Excellent Sound Dispersion, Mono/ Stereo Application

Subwoofer

Woofer dimensions

• 15 "

Woofer size

• 381 mm

Woofer magnet

• Neodymium

Woofer brand

• Custom-made

Woofer voice coil

• 4 "

Woofer voice coil (mm)

• 101 mm

Cabinet construction

• Bass Reflex

Housing material

• 15 mm Birch Plywood, 18 mm Birch Plywood

Cabinet surface

• Polyurea

Dimensions Subwoofer (W x H x D)

• 434 x 634 x 637 mm

Subwoofer weight

• 36.4 kg

Mid/Hi System

Midrange size

• 12 x 3,5 "

Midrange size

• 12 x 89 mm

Midrange magnet

• Neodymium

Midrange brand

• Custom-made

Midrange voice coil

• 1 "

Midrange voice coil

• 25.4 mm

Tweeter dimensions

• 4 x 0.5 "

Tweeter dimensions (mm)

• 12.7 mm

Tweeter magnet

• Neodymium

Tweeter brand

• Custom-made

Tweeter voice coil

• 1 "

Tweeter voice coil (mm)

• 25.4 mm

Wave Guide

• CD Waveguide

Loudspeaker inputs

• 1

Speaker input connections

• Custom-made multipin

Cabinet construction mid/high

• Closed

Mid/Hi system cabinet material

• Aluminium

Mid/Hi system cabinet surface

• HD coated aluminum, multi layer mesh (cloth)

Mid/Hi system width

• 103 mm

Mid/Hi system height

• 1621 mm

Mid/Hi system depth

• 135 mm

Mid/Hi system weight

• 11.2 kg

Amplifier module (integrated in subwoofer)

Amplifier

• Class D

System output (RMS):

• 1500 W

Protection circuits

• DC protection, Multiband limiter, short circuit, thermal protection

Cooling

• Convection

Controls

• Bluetooth HOLD TO LINK button, Bluetooth STEREO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub level

Indicators

• Bluetooth,  Bluetooth STEREO LINK, Cardioid On/Off, Follower mode, Limit, Power,  Protect (protection circuit engaged), Signal, Subwoofer Mode

Mains connector

• Neutrik PowerCon

Operating voltage

• 100 V AC - 120 V AC, 50 - 60 Hz, 220 V AC - 240 V AC, 50-60 Hz

Ambient temperature (operating)

• 0 - 40 °C

Relative Humidity

• < 80% (non-condensing)

Line Inputs

• 2

Line Input Connectors

• XLR female

Line Outputs

• 2

Line Output Connectors

• XLR male

Number of speaker outputs

• 1

Loudspeaker Output Connectors

• Custom-made multipin

Bluetooth Standard

• A2DP

Bluetooth Audio Decoder

• AAC, aptX, SBC

DSP characteristics

Bit depth AD/DA converter

• 24 bit

Sampling frequency

• 48 kHz

Signal-to-noise ratio

• 106 dB
