8-Step CV Sequencer Eurorack Module
Price$80
1
10 in stock
Listed:over a month ago
Views:551
Watchers:16
Offers:1
Erie, PA, United States
14-Day Return Policy
Enjoy peace of mind with your new gear
14-Day Return Policy
Enjoy peace of mind with your new gear

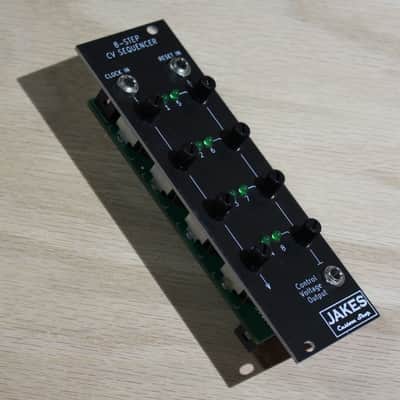

The Jake’s Custom Shop 8-step Control Voltage Sequencer is a minimalist “Baby-8” style sequencer. Designed to fit 8 notes into 8 HP, this module provides individual potentiometer control of each note, LED step indicators, and a clock reset input.
-A rising-edge gate or trigger moves the sequencer to the next step
-A rising-edge gate or trigger resets the sequencer to step 1.
-10-Pin shrouded IDC
-Control voltage signal based on the potentiometer setting of the current step.
Low Current Draw:
+12V: 9.3mA
+5V: 0mA
-12V: 3.7mA
PCB dimensions: 39 x 106.5 mm
Panel dimensions: 40.3 x 128.5 mm (8HPX3U)
Depth of panel: 25 mm
Datasheet is available on my website
Condition | |
Brand | |
Model |
|
Finish |
|
Categories | |
Year |
|
Made In |
|
The Jake’s Custom Shop 8-step Control Voltage Sequencer is a minimalist “Baby-8” style sequencer. Designed to fit 8 notes into 8 HP, this module provides individual potentiometer control of each note, LED step indicators, and a clock reset input.
-A rising-edge gate or trigger moves the sequencer to the next step
-A rising-edge gate or trigger resets the sequencer to step 1.
-10-Pin shrouded IDC
-Control voltage signal based on the potentiometer setting of the current step.
Low Current Draw:
+12V: 9.3mA
+5V: 0mA
-12V: 3.7mA
PCB dimensions: 39 x 106.5 mm
Panel dimensions: 40.3 x 128.5 mm (8HPX3U)
Depth of panel: 25 mm
Datasheet is available on my website
