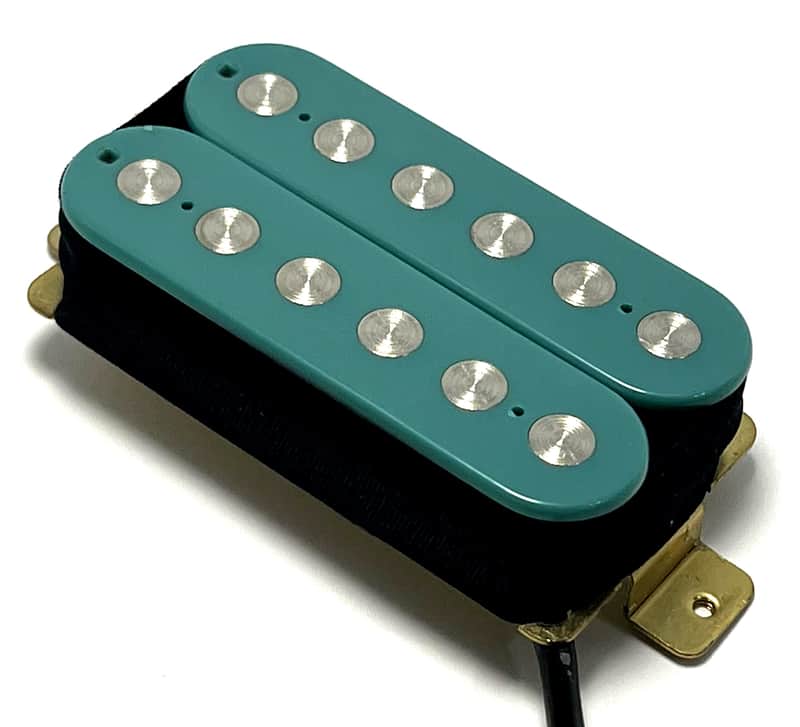

Dragonfire Phat Screamer ~ Neck Position Humbucker Pickup ft. Oversized "Phat" Pole Styling ~ Teal

Dragonfire Phat Screamer Hot Humbucker Pickup, Passive Humbucker Pickup ft. Oversized “Phat” Poles ~ Teal
“Phat” Bottom & “Screaming” High Capability ~ Humbucker Pickup, 1 Neck Position Dedicated Humbucker

Dragonfire Phat Screamer passive pickups are wound a bit hotter than standard Screamers to give you even more edge with aggressive styles of play. The Phats use oversized poles for a pretty impressive presentation. These phat poles also add functionality to allow for clearer articulation in your bends, pulls, and fast leads. You’ll be able to ring your notes off the fretboard like never before. Of course, the Phat Screamers more than live up to their name giving you a “Phat” bottom end and “Screaming” high capability to cut through the mix.

With crisp, clean, and modern tone, Phat Screamers are hot wound and use ceramic magnets. Allowing for power and articulation, these pickups will definitely give you the authority and presence you crave.

The Phat Screamer pickup is an in-your-face style of pickup with oversized flat top slug style polepieces available in a variety of colors to personalize your set-up. These humbuckers are 4-wire so you can coil-split for even more versatility.

Check our Reverb Store for this pickup style in other colors or as a set for savings and convenience. Contact us if you have any questions.

~~Product Highlights~~
*6 String Passive Humbucker Pickup
*Ceramic Magnet Style w/ Great All-Around Performance
*4 Conductor Wiring (4 Wire Pickup)
*Hot Wound, High Output, Crisp & Clean Tone
*Wax Potted for Squeal Reduction
*Coil Split Capable & Phase Reversible
*Short Style Mounting Legs (Standard Style)
*”Phat” Oversized Flat Top, Slug Style Exposed Polepieces
*Uncovered Open Coil Bobbin Style
*Standard Insulated Lead Wire (Modern Stranded Style)
*Pickup Mounting Screws & Springs Included
*500K Pots & 0.047 Tone Caps Recommended

~~Approximate Measurements~~
*Neck Polepiece Spacing: 50mm
*Pole Diameter: 6.5mm
*Approximate Neck Output: Wound to ~8.8K
*Pickup Length: 68mm (84mm including mounting flanges)
*Pickup Width: 37mm
*Pickup Depth: 17mm (23mm including mounting flanges)
*Mounting Screw Spacing: 78mm

~~Installation Information~~
The included pickup wire color codes will let you know the hot, ground, and coil split wire colors for these 4-wire pickups. Basic instructions for a sample standard installation are included. Due to the vast and varied nature of possible components and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use the basic information we provide to match up with any diagram or instructions you choose to use.

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.

If you’d like to update your wiring and have us create a new wiring system for you, check out our Wiring Harnesses.

~~Purchase Notes~~
Please ask any questions prior to purchase.

Buyers assume all risk of use; sales are only offered to those competent to safely and lawfully purchase and use items. Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material. Ask any questions regarding options, measurements, installation requirements, special requests, or anything else prior to purchase.

Detailed instructions for installation are not included. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice. Take your time for installation; do not use power tools and do not over-tighten or apply too much pressure on components.

Inspect your order upon receipt. Contact us prior to installation if you have any questions.
