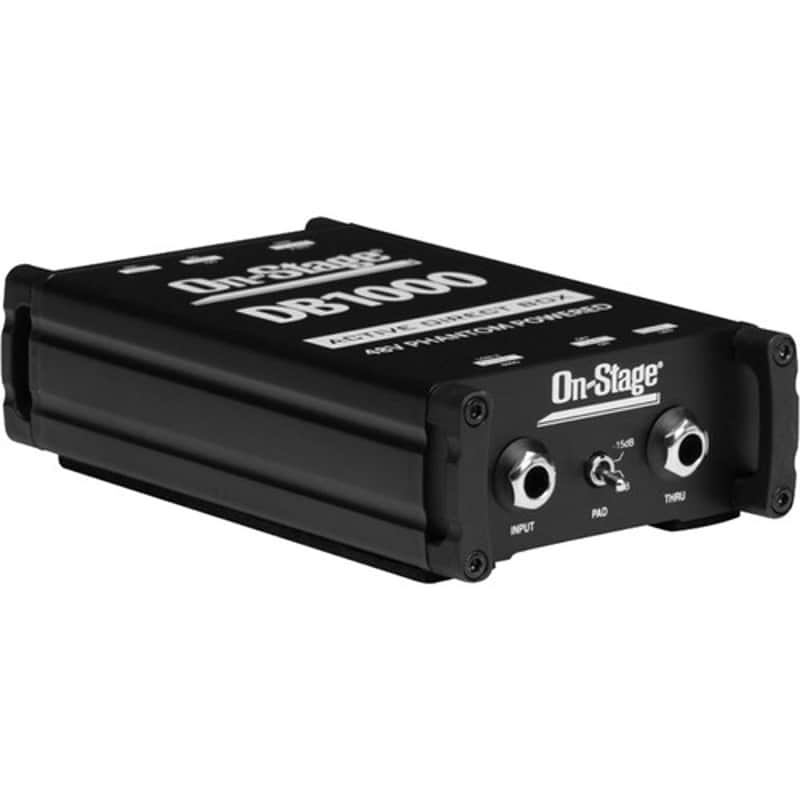

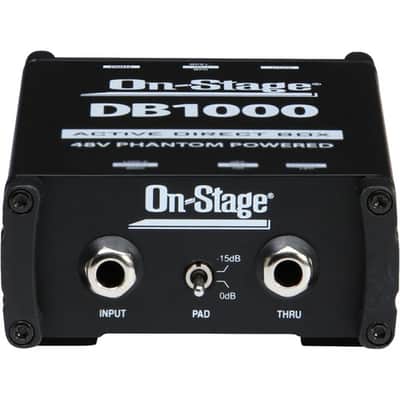

On-Stage DB1000 Active Mono DI Box

Connect your keyboard, guitar, or bass directly to your preferred mic preamp with the On-Stage DB1000 active mono DI box. It adapts a high-impedance, instrument-level 1/4" TS input to a low-impedance, mic-level XLR output. By converting your signal from unbalanced to balanced, it allows longer cable runs, less noise, and proper compatibility with mic inputs.

A 1/4" TS thru jack provides an unbalanced pass-through to an instrument amplifier or pedalboard. Flip the -15 dB pad switch to prevent distortion when accepting high-output sources, and utilize the ground-lift switch to rid your signal of hum from ground loops. Since the DB1000 is a phantom-powered direct box, no batteries, power cables, or AC adapters are required. It features a durable metal housing with protective nylon bumpers, making it equally well suited for constant use in the studio, on stage, or at home. Ideal for connecting a keyboard, guitar, or bass to a mixing console, an outboard mic preamp, or an audio interface Transforms an unbalanced, high-impedance, instrument-level input signal to a balanced, low-impedance, mic-level output signal Isolated 1/4" TS input Selectable -15 dB pad prevents distortion when accepting high-output sources such as guitars and basses with active electronics 3-pin XLR male output socket for direct connection to a microphone preamp 1/4" TS thru jack provides an unbalanced, instrument-level split to an amplifier or pedalboard Ground-lift switch eliminates hum caused by problematic ground loops LED power indicator
Key Features

• Connect a Keyboard to a Mic Input
• Connect a Guitar/Bass to a Mic Input
• Converts Instrument Level to Mic Level
• Adapts Unbalanced Hi-Z to Balanced Lo-Z
• Unbalanced 1/4" TS Input
• Balanced 3-Pin XLR Output
• Unbalanced 1/4" TS Thru Jack
• Ground-Lift Switch & -15 dB Pad
• 48 VDC Phantom Powered
• Durable Metal Housing with Nylon Bumpers
