Dragonfire Mod Bucker Neck Position Dedicated Pickup ~ Passive Ceramic Modern Humbucker ~ Teal

Dragonfire Mod Bucker Neck Pickup ~ Passive Ceramic Humbucker Pickup Style ~ Teal
1 qty Neck Position Dedicated Humbucker Pickup

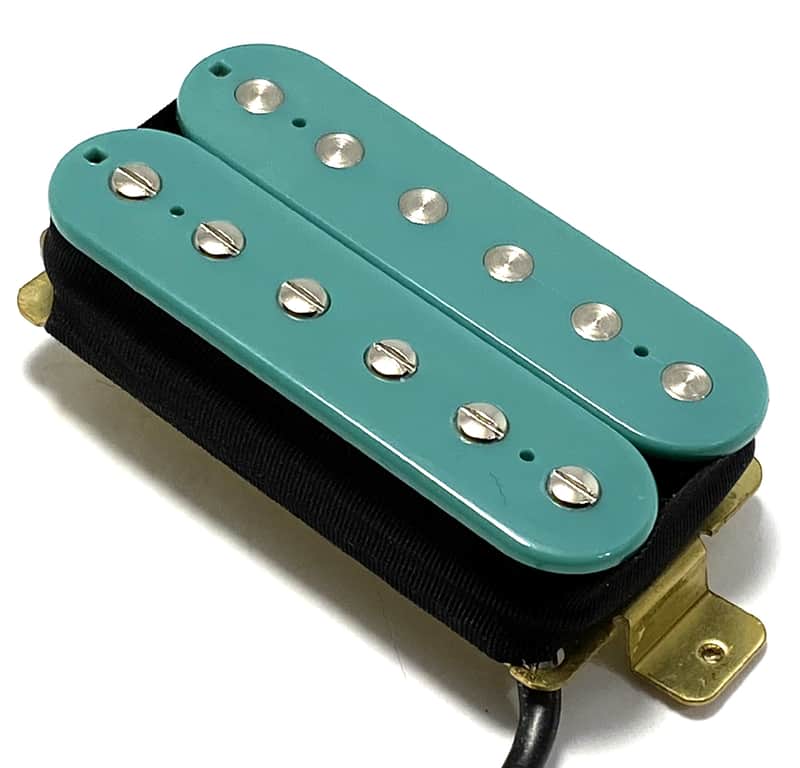

Dragonfire Mod Buckers are passive ceramic humbuckers mid-wound for modern sound. These feature a classic humbucker pickup appearance with updated design quality for an impressive look and performance combination. With far-reaching appeal, not-too-hot mid-output, and overall solid results, these Mod Buckers are a fantastic choice in most modern genres.

These uncovered humbuckers feature one row of slug / flat top style polepieces and one row of regulating screw style polepieces so six polepieces on each pickup are adjustable.

Check our Reverb Store for this pickup style available as a set for savings and convenience. Contact us if you have any questions.

~~Product Highlights~~
*6 String Passive Humbucker Pickup Style
*Uncovered Open Coil Bobbin Construction
*6 Flat Top / Slug Style Exposed Polepieces
*6 Adjustable Regulating Screw Poles
*Modern Ceramic Magnet Type
*4 Conductor Wiring (4 Wire Pickup Design)
*Coil Split Capable & Phase Reversible
*Classic Appearance w/ Updated Modern Performance
*Well Rounded Mid Wound Output Style
*Wax Potted for Squeal Reduction
*Standard Style Short Mounting Legs
*Standard Insulated Lead Wire (Modern Stranded Style)
*Pickup Mounting Screws & Springs Included
*500K Pots & 0.047 Tone Caps Recommended

~~Approximate Measurements~~
*Neck Polepiece Spacing: 50mm
*Approximate Neck Output: Wound to ~10.4K
*Pickup Length: 68mm (84mm including mounting flanges)
*Pickup Width: 36mm
*Pickup Depth: 18mm (22mm including mounting flanges)
*Mounting Screw Spacing: 78mm

~~Installation Information~~
The included pickup wire color codes will let you know the hot, ground, and coil split wire colors for these 4-wire pickups. Basic instructions for a sample standard installation are included. Due to the vast and varied nature of possible components and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use the basic information we provide to match up with any diagram or instructions you choose to use.

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.

These humbuckers are 4-wire so you can coil-split as well as add series-parallel or phase reverse functionality for expanded wiring and playing options (instructions not included).

~~Purchase Notes~~
Please ask any questions prior to purchase.

Buyers assume all risk of use; sales are only offered to those competent to safely and lawfully purchase and use items. Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material. Ask any questions regarding options, measurements, installation requirements, special requests, or anything else prior to purchase.

Detailed instructions for installation are not included. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice. Take your time for installation; do not use power tools and do not over-tighten or apply too much pressure on components.

Inspect your order upon receipt. If everything is in order, simply install carefully to enjoy. Let us know if you have any questions.
