10 IN/2 OUT USB Audio/MIDI Interface

SERIES 102i

The new TASCAM SERIES audio interface family provides professional quality.

Expandability, both internal and bundled effects processing, internal mixing, external software control, and more for studio, home, and live recording. With a new look, including an angled tabletop design and large, easy-to-grab knobs, TASCAM sets a new standard for mid-grade audio interfaces.

Special versatile bundled software to produce your music from start to finish

TASCAM SERIES audio interfaces are bundled with a series of software that allow full operational coverage: at the core of music production is Steinberg's Cubase LE / Cubasis LE; for instrumental recordings comes IK Multimedia's AmpliTube with guitar/bass modeling and colorful effects; newly added to the bundle is iZotope's redesigned Neutron Elements, which includes 4 powerful tools for creating great mixes; last but not least, IK Multimedia's T-RackS mastering software will finish up users' creations into high quality masterpieces.

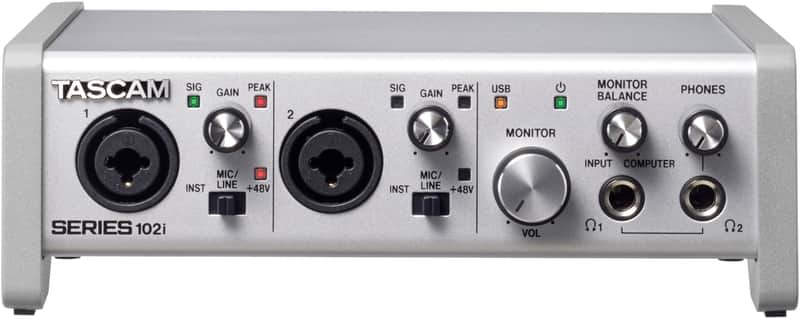

TASCAM SERIES audio interfaces feature a large, easy-to-grab Monitor control knob that ensures you can quickly adjust the monitor output level. Their angled tabletop design offers easy access to all front-panel controls. A handy Monitor Balance control enables mixing live input with computer playback for zero-latency monitoring. Each analog input channel is served by an individually switched +48 volt phantom power supply for condenser microphones.

The SERIES interface has 2 individual headphone amplifiers which offer powerful enough dual headphone monitoring.

Control Software for Matrix Mixing, Effects Processors, and More

Free, easy-to-use TASCAM Control software (TASCAM SERIES Settings Panel) manages faders, processing, and the ability to route any audio input (analog, optical, and USB) to any audio output.

Built-in DSP Effects and Processing

A DSP input and output mixer is complemented with digital reverb, compressor, phase invert, and 4-band EQ for each channel. Having these processors included internally eliminates all latency issues and takes the load off the computer allowing the Windows / Mac to process the audio more efficiently.

TASCAM SERIES interfaces support tablets and other mobile devices and are compatible with many applications to meet your recording needs now and in the future.

TASCAM SERIES audio interfaces are bundled with a series of software that allow full operational coverage: at the core of music production is Steinberg's Cubase LE / Cubasis LE; for instrumental recordings comes IK Multimedia's AmpliTube with guitar/bass modeling and colorful effects; newly added to the bundle is iZotope's redesigned Neutron Elements, which includes 4 powerful tools for creating great mixes; last but not least, IK Multimedia's T-RackS mastering software will finish up users' creations into high quality masterpieces.

Features at a glance

· Two XLR/TRS combo mic/line/instrument inputs

· Two transparent, natural-sounding, ultra-low noise TASCAM Ultra HDDA mic preamplifiers

· One optical S/MUX expansion port that accepts up to 8 channels of audio input (10 total inputs)

· 2 ¼-inch analog outputs and dual headphone outputs for versatile monitoring

· Built-in effects: reverb, compressor, 4-band EQ

· Flexible DSP input/output mixer controlled via free TASCAM Control software

· Software control of faders, routing, effects, and phase invert

· Up to 24-bit/192 kHz sample resolution

· Includes Steinberg DAW software and IK Multimedia world-class guitar effects/modeling and mastering software

· MIDI interface

· Dual headphone outputs

· Compatible with Windows / Mac computers and iOS devices (supports UAC2.0)

· USB 2.0 connection and custom USB driver with high stability

· Easy-to-understand operation

· Automatic update function available for software/driver/firmware updates

· Information window function(shown in the Settings Panel screen)

· Direct monitor option for low latency monitoring

· Compatible with mainstream DAW software (Pro Tools, Live, Cubase, Studio One, GarageBand, Logic Pro)
