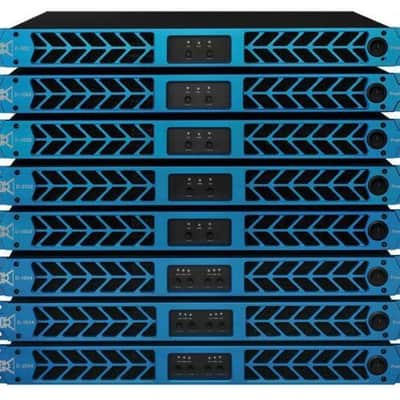

CVR Audio D-1004 BLUE Professional Power Amplifier 1 Space 1000 Watts x4 at 8-Ohms

Description

The CVR Audio D-1004 power amplifiers are employing the mature and efficient D circuit design and using high quality and reliable components. .Compact and light weight with 1U small size, D-series amplifier have a complete and high speed protection system in case of overheating, overloading, DC output etc. Includes independent logic wide range power supply, which are designed to provide a great solution for all kinds of power requirements.

Features:

• Class D circuit provide high efficiency，energy saving and low operation.

• Comply with the safety and EMC standards.

• (1U) and weight are only 1/3 of tradition amplifier.

• 90~260VAC / 50~60HZ wide range power supply.

• First-class components from international high-end manufacturers.

• Temperature control fan for quiet operation.

• Modular design and maintenance is convenient.

• Very suitable for mobile show.

• Reasonable design makes you feel relaxed in the process of using.

• Environmental protection

Specifications:

• 8Ω(RMS) 1000W x 4

• 4Ω(RMS) 1700W x 4

• 2Ω(RMS) 2890W x 4

• 16ΩBridged Power(RMS)2000W x 2

• 8ΩBridged Power(RMS) 3400W x 2

• 4ΩBridged Power(RMS) 5780W x 2

• Frequency Response 10Hz – 34kHz

• Signal-to-Noise Ratio >110 dBA

• Channel separation (Crosstalk) at 1 kHz >90 dB

• Input Connectors (per channel) 3-pin XLR

• Electronically balanced Output Connectors (per channel) speakon

• Damping factor >5000

• Slew Rate 50v/us

• RMS Output Voltage 89.4

• Tour Class Protection short circuit, DC voltage, turn-on/off transient, current inrush,

• Sub/ultrasonic input Operating voltage, 115v or 230v, 50 Hz or 60 Hz

• Input impedance 20 kOhm Level adjustment (per ch.)
