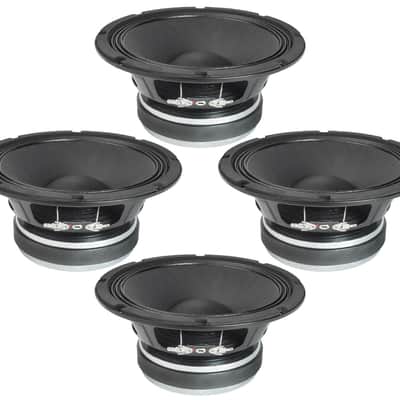

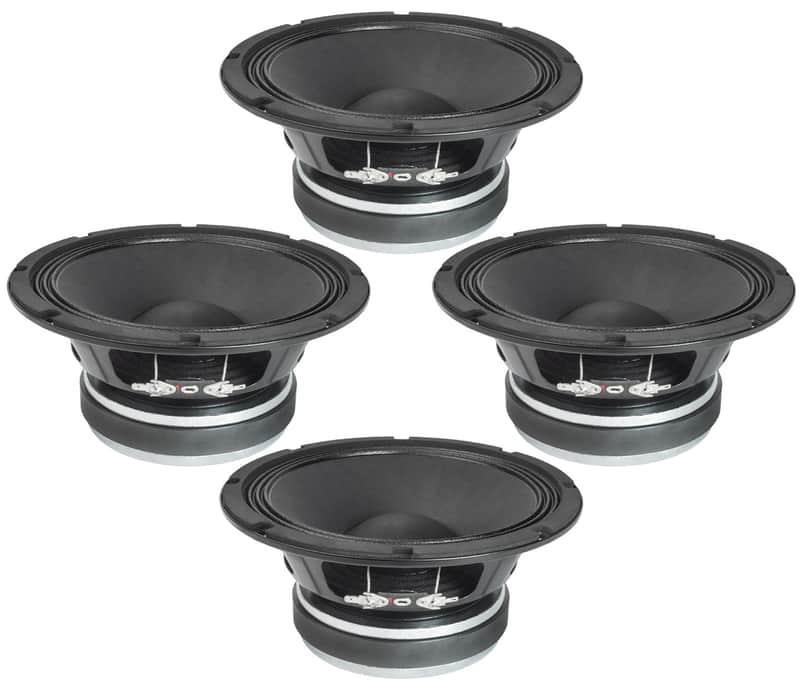

4x Faital Pro 8FE300 8" Midrange / Midbass 500W Car Audio Speaker 8-Ohm 95dB

Nominal Specifications

Nominal Diameter

• 200 mm (8 in)

Overall Diameter

• 209 mm (8.23 in)

Bolt Circle Diameter

• 197.5 mm (7.78 in)

Baffle Cutout Diameter

• 183 mm (7.2 in)

Depth

• 95 mm (3.74 in)

Flange and Gasket Thickness

• 7mm (0.28 in)

Net Weight

• 3.1Kg (6.8 lb)

Shipping Box

(Single Carton Box)

• (8.9 x 8.8 x 4.4 in)227 x 224 x 113 mm


Shipping Weight

• 3.9 Kg (8.58 lb)

Technical Parameters

Nominal Impedance

• 8 Ohm

Minimum Impedance

• 5.8 Ohm

AES Power Handling (1)

• 250 W

Maximum Power Handling (2)

• 500 W

Sensitivity (1W/1m)

• 95dB SPL

Frequency Range

• 60÷5000 Hz

Voice Coil Diameter

• 52 mm (2.05 in)

Winding Material

• Al

Former Material

• Glass Fiber


Winding Depth

• 13.7 mm


Magnetic Gap Depth

• 8 mm (0.31 in)

Flux Density

• 1 T

Magnet

• Ferrite Ring

Basket Material

• Steel

Demodulation

• No

Cone Surround (3)

• Triple Roll

NET Air Volume filled by Loudspeaker

• 0.6 dm^3 (0.021 ft^3)

Spider Profile

• 1x constant height waves

Thiele and small parameters

Fs

• 70 Hz

Re

• 5.8 Ohm

Qes

• 0.46

Qms

• 13.4

Qts

• 0.44

Vas

• 15.7 dm^3 (0.55 ft^3)

Sd

• 191 cm^2 (29.61 in^2)

Xmax (4)

• 5.52 mm

Xdamage (5)

• 10.4 mm

Mms

• 22.9 g

Bl

• 8.2 N/A

Le

• 0.55 mH

Mmd

• 13.5 g

Cms

• 0.26 mm/N

Rms

• 0.6 Kg/s

Eta Zero

• 1.02 %

EBP

• 121 Hz

PART NUMBER (P/N)

Faston Terminals - 8 Ohm Version

• 02004018

Notes:

(1) 2 Hours Test According to AES 2-1984 Rev. 2003   (2) Maximum power is defined as 3dB greater than nominal power.   (3) Treated Polycotton   (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)   (5) Maximum excursion before permanent damage
