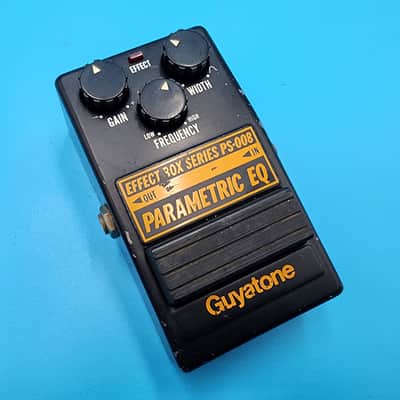

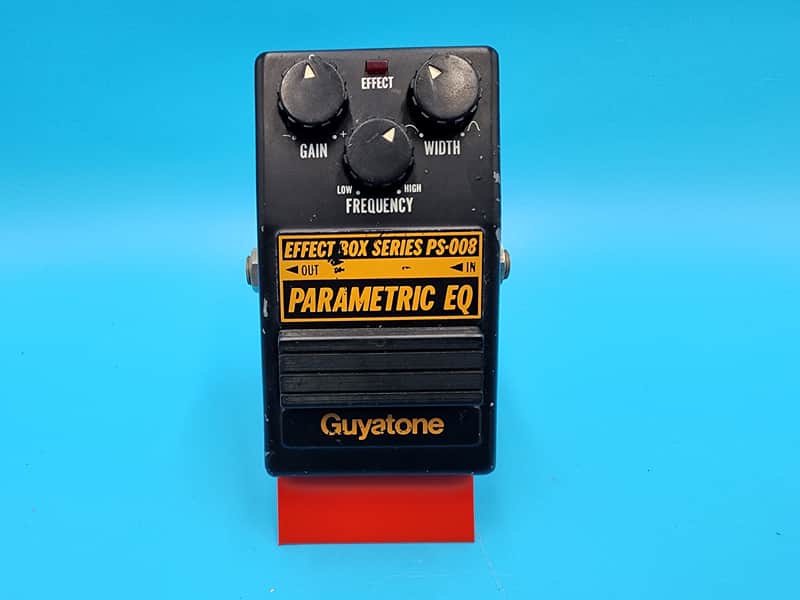

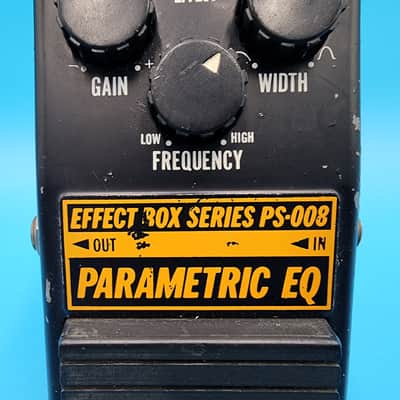

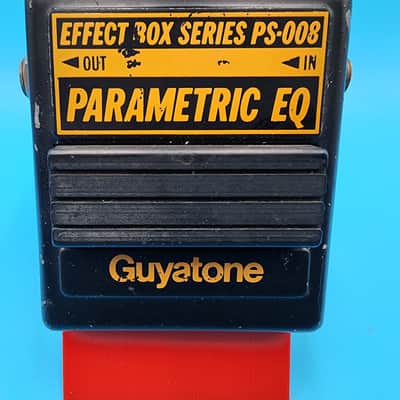

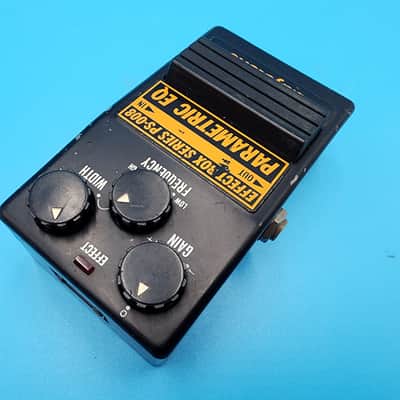

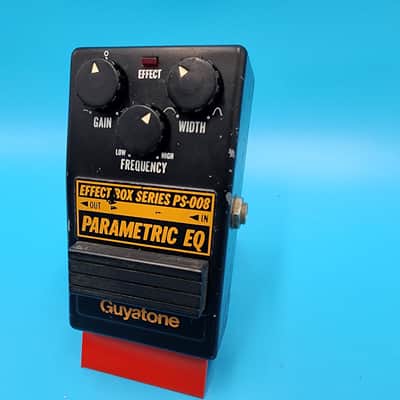

Rare Vintage 80s Guyatone PS-008 Parametric EQ Guitar Effect

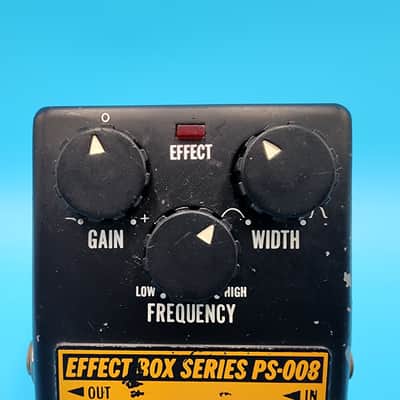

Gain - Turning this control clockwise (in the + direction) emphasizes (+ 18dB = 8 times) the band set by the Frequency control, and turning it counterclockwise (in the - direction) attenuates (-18dB = 1/8) the same. At the center (0 position) of the knob, meanwhile, the frequency characteristics become flat irrespective of the other two knobs' position
Width - This knob controls the width of the frequency band set by the Frequency control. Turning it clockwise decreases (1 octave) the width, and turning it counterclockwise increases (2 octaves) the width.
Frequency - This knob controls the frequency to be emphasized or attenuated. Turning it clockwise shifts the center frequency toward high tones (5,000Hz), and turning it counterclockwise shifts the same toward low tones (70Hz).
Input Impedance - 330 K ohm
Maximum Input Level - 0dB
Output Impedance - 10 K ohm
Maximum Output Level - + 6 dB
S/N Ratio - -90dB
Frequency Characteristics - 20-20,000Hz +/- 1dB
Gain - +/- 18dB
Frequency Variable Range - 70-5,000Hz
Band Width 7-1 octave
Power - Battery DC 9 Volt / AC adaptor
Battery Drain - 6mA
Switching System - "Noiseless" Solid state type
Overall Size - 68 (W) x 53 (H) x 120 (D) mm
Weight - 370g
Rare Vintage 80s Guyatone PS-008 Parametric EQ Guitar Effect Pedal. Item works flawlessly. General wear from vintage age. Shipping is calculated USPS from 16105. Thanks for looking and Good Luck!

Promoted similar listings

Listed	4 years ago
Condition	Good (Used) Good condition items function properly but may exhibit some wear and tear.Learn more
Brand	Guyatone
Model	PS-008 Parametric EQ
Categories	EQ
Year	80s
Made In	Japan
