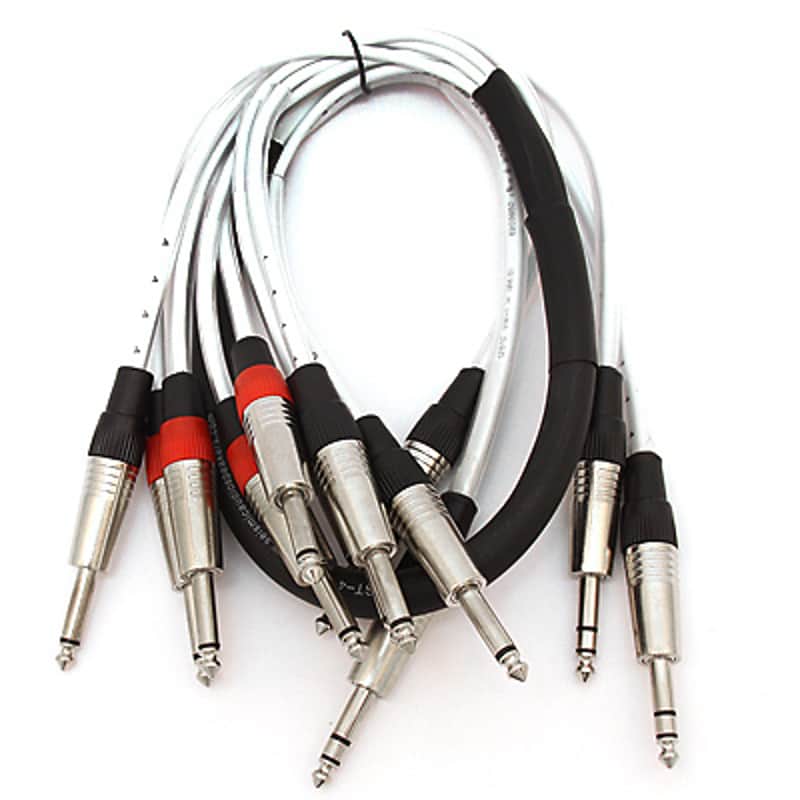

4 Channel 1/4" TRS 8 TS Insert Snake Audio Cable 3'

The SAST-4-8-3 insert snake solves a common problem: you need to patch outboard gear into your mixer's insert points, but those TRS insert jacks carry both send and return on one connector. This 3-foot cable breaks out four TRS insert connections into eight individual TS plugs — four sends and four returns — so you can route signal to your compressors, EQs, or effects and back again without any signal interruption.

Here's what you get: four TRS connectors that plug directly into your mixer's insert jacks, and eight TS connectors that handle the actual routing to your processors. The cable splits each TRS insert into its send and return components, giving you separate connections for your gear's input and output. Each connection is color-coded and numbered, which saves you from playing the "which cable goes where" game during setup or when troubleshooting a dead channel mid-show.

The 22-gauge copper conductors maintain clean signal integrity across all four channels, and the 3-foot length works well for typical rack-to-mixer configurations without creating a cable mess behind your rig. This isn't a super-long snake for big installations — it's designed for situations where your outboard gear lives close to your mixing position.

You'll find this particularly useful if you're running an analog mixer and want to add compression to vocal channels, EQ individual instruments, or insert any processor that needs separate input and output connections. Works with standard mixers from Mackie, Allen & Heath, Yamaha, and similar brands that use TRS insert jacks.

Bottom line: If you need to connect four channels worth of outboard processors to your mixer's insert points and your rack setup is within 3 feet, this cable handles the job cleanly with no additional adapters required.

Technical Specifications

• Model: SAST-4-8-3
• Configuration: 4 Channel Insert Snake
• Length: 3 feet (tip to tip)

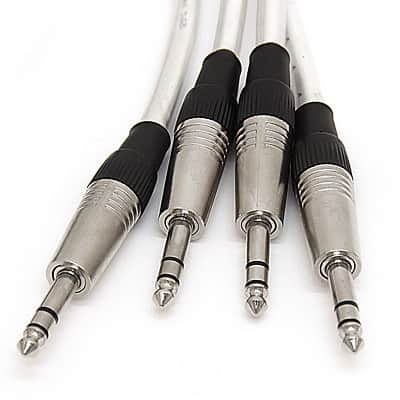

• Input Connectors: 4 x 1/4" TRS

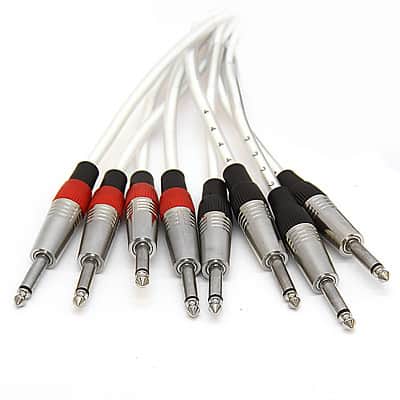

• Output Connectors: 8 x 1/4" TS (4 sends, 4 returns)
• Conductor: 22-gauge high purity copper
• Labeling: Color coded and numerically labeled
• Warranty: 1 year
• Recommended For: Mixer inserts, outboard gear routing, studio patching

Frequently Asked Questions

What mixers work with this insert snake?

Any mixing console with 1/4" TRS insert jacks will work — most analog mixers from Mackie, Allen & Heath, Yamaha, and Soundcraft use this standard configuration. The TRS connector carries both send and return signals, which is how mixer insert points are wired.

How do I connect my compressor using this snake?

Plug the TRS end into your mixer's insert jack, then connect the matching numbered TS send to your compressor's input and the TS return to your compressor's output. The color coding and labels help you keep the send/return pairs straight for each channel.

Is 3 feet long enough for most rack setups?

The 3-foot length works when your mixer and rack are positioned close together — typically within arm's reach of each other. If your outboard gear is mounted further away or you need more routing flexibility, you'll want to look at longer versions of this same cable configuration.

Do I need any additional adapters or cables?

No. This snake provides everything needed to connect four mixer insert points to external processors. Just plug the TRS ends into your mixer and connect the TS ends to your gear's inputs and outputs.
