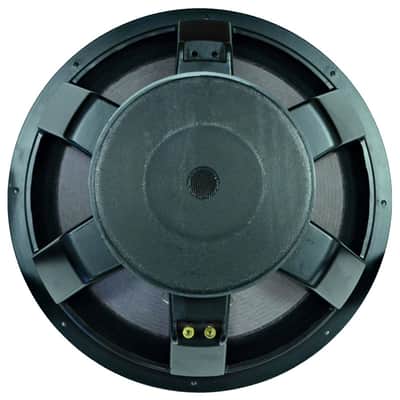

The New Madrid 18-inch subwoofer driver is built for serious DIY builders and anyone replacing a blown driver in their existing rig. This isn't some bargain basement component — it's a legitimate 750W RMS driver with dual 120-ounce magnets that will move the air you need for real bass response down to 25Hz.

That die-cast aluminum frame means business. No flex, no distortion, just solid bass reproduction when you're pushing it hard. The 4-inch voice coil handles 750 watts continuous with 1500-watt peaks, so you can trust it during those moments when the bass drops and everyone feels it in their chest. At 102dB sensitivity and 8 ohms, it pairs well with most power amps without being a current hog.

The paper cone with cloth surround gives you that natural bass character that sounds right — not the artificial thump of cheap drivers. Frequency response covers 25Hz to 2kHz, so you get the full subwoofer range plus enough lower midrange to blend smoothly with your tops.

This is strictly a raw driver — no cabinet, no crossover, no binding posts. You're on your own for the build, but that's the point. Whether you're replacing a dead 18 in your existing sub or building a custom cabinet from scratch, this driver will handle small to medium venues up to 500 people when you give it the power and enclosure it deserves. At 43 pounds, you'll know you're dealing with real construction when you lift it.

Bottom line: If you need legitimate bass extension for DIY builds or driver replacement and you're willing to do the engineering work, the New Madrid delivers professional-grade low-end without the boutique price tag.

Technical Specifications

• Driver Size: 18 inches
• Power (RMS): 750 watts
• Power (Peak): 1500 watts
• Frequency Response: 25Hz - 2kHz
• Sensitivity: 102 dB
• Impedance: 8 ohms
• Voice Coil: 4 inches
• Magnet: Dual 120 oz (240 oz total)
• Frame: Die-cast aluminum
• Cone Material: Paper
• Surround: Cloth edge
• Weight: 43 lbs
• Warranty: 1 year

Frequently Asked Questions

What amplifier power do I actually need for this driver?

You want 750-1000 watts RMS at 8 ohms to get the full potential. The driver can take peaks up to 1500W, but around 750W continuous will give you clean, undistorted output. Most professional power amps or powered mixers with sub outputs will drive it properly.

Can I drop this into my existing 18-inch subwoofer cabinet?

Probably, but check your mounting hole pattern and make sure your current amp delivers enough juice. If your cabinet was designed for an 18-inch driver with similar specs, you should be good. The 8-ohm impedance plays nice with most PA amps.

What do I need besides the driver to build a complete subwoofer?

Everything else — cabinet, binding posts or Speakon connectors, internal wiring, and probably a crossover depending on your setup. This is just the raw driver. Research proper cabinet volume and tuning for this specific driver or you won't get the bass response you're after.

How does this compare to 15-inch subs for my venue?

The 18 moves more air and digs deeper — you'll feel more physical impact on kick drums and synth bass. But 18s need bigger, heavier cabinets and more amp power to shine. For venues up to 500 people, the extra low-end extension is usually worth the size penalty.
