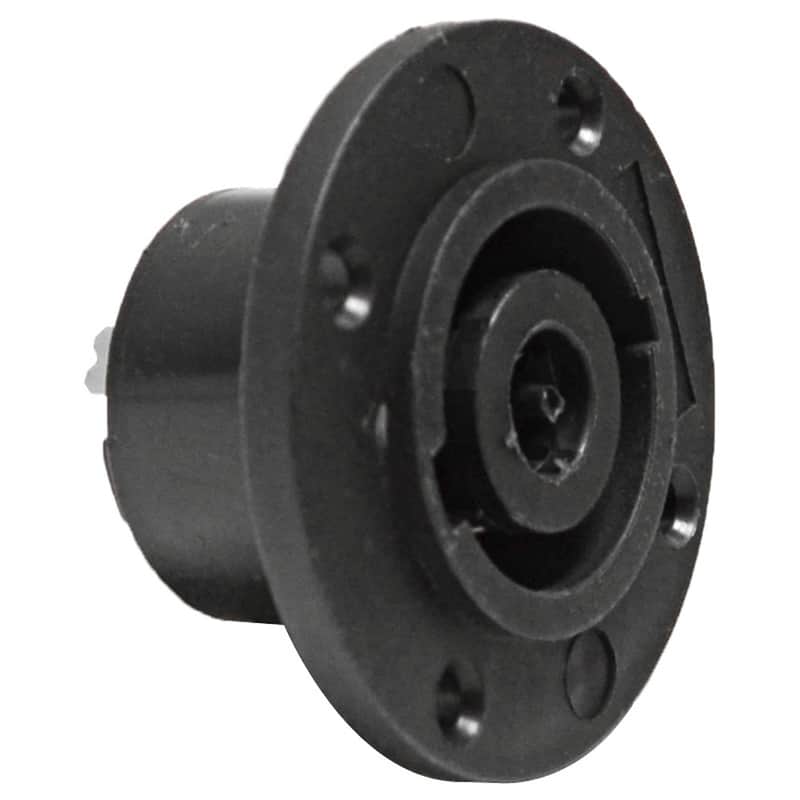

The SAPT10 8-pole Speakon panel connector is what you need when you're running bi-amped or tri-amped systems and you're tired of dealing with multiple cable runs. Instead of running separate cables for your lows, mids, and highs, this panel mount lets you carry up to four amplifier channels through a single 8-conductor cable connection. It's the kind of connector you'll find on the back panels of serious PA systems and custom rack builds.

This isn't just a plastic housing with some terminals — the all-metal construction means it'll survive the load-ins, the road cases bouncing around in your van, and that inevitable moment when someone trips over a cable. The locking mechanism actually works, so you won't have that heart-stopping moment mid-set when a connection comes loose. The G-size mounting hole is the industry standard, so if you're retrofitting an existing cabinet or rack, it'll drop right into the same hole as whatever failed connector you're replacing.

Where this connector really shines is in permanent installations and complex mobile rigs. Church sound systems, venue installs, and those custom speaker arrays where you need clean signal paths for multiple amplifier channels. You can still plug regular 4-pole Speakon cables into it when you're running simpler systems, but having those extra four poles available means you're ready when your setup gets more sophisticated.

Bottom line: If you're running multi-amped systems or building custom installations where cable management and reliability matter, this panel connector handles the technical demands without the premium price tag.

Pro Tip: When wiring multi-conductor cable to 8-pole connectors, use the standard pin assignment (1+/1- for amp 1, 2+/2- for amp 2, etc.) and document it — you'll thank yourself six months later when you need to troubleshoot or add components to the system.

Technical Specifications

• Model: SAPT10
• Connector Type: 8-Pole Speakon Panel Mount
• Panel Hole Size: G Size
• Construction: Metal
• Warranty: One Year
• Condition: New
• Recommended For: Multi-amp systems, venue installations, rack builds

Frequently Asked Questions

What's the difference between 4-pole and 8-pole Speakon connectors?

Each pair of poles carries one amplifier channel. A 4-pole connector handles two amp channels (perfect for bi-amping), while an 8-pole connector handles four amp channels (ideal for tri-amping with a spare channel or complex multi-driver systems). If you're only running single-amp or bi-amp systems now, you can still use regular 4-pole cables with this 8-pole panel connector.

Will this fit my existing rack or speaker cabinet?

The SAPT10 uses the standard G-size mounting hole that most professional audio equipment uses for Speakon connectors. If you're replacing an existing Speakon panel connector, this will likely fit the same hole. If you're drilling new, you need a 24mm hole.

Can I install this myself or do I need a tech?

If you're comfortable with basic wiring and have access to the back of the panel, you can handle this installation. You'll need to drill the mounting hole (if not already present), connect the multi-conductor cable to the appropriate terminals inside the connector, and secure it to the panel. The main requirement is having enough space behind the panel to work with the connector housing and cable connections.

Is this overkill for my setup?

If you're running single-amp systems or basic bi-amp setups, a 4-pole connector will handle your needs just fine and cost less. The 8-pole connector makes sense when you're running tri-amped systems, need spare channels for future expansion, or want the flexibility to handle complex routing without changing hardware later.
