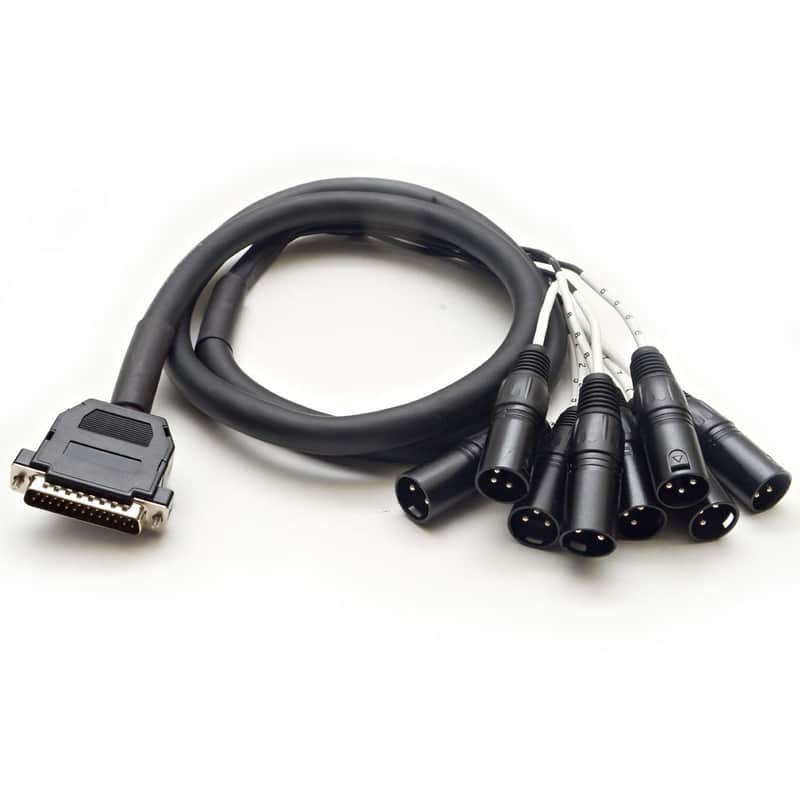

When you're tired of running eight separate XLR cables between your interface and patch bay, or from your stage box to the mixer, the SA-DB8XM5 gives you a cleaner solution. This 8-channel snake takes a single DB25 connection and breaks it out to eight XLR male connectors, handling all your multi-channel routing through one cable run.

At 5 feet total with an 18-inch fantail, this snake is sized for rack-to-rack connections and desktop studio setups where you need to keep things tight and organized. If you're connecting gear that's more than 3 feet apart, you'll need something longer, but for most studio and mobile rig applications, this length keeps your signal paths short and your rack area uncluttered.

The DB25 connector follows industry-standard pinouts, so it'll work with most professional mixers and interfaces without surprises. The XLR male ends handle balanced signals just like individual cables would, but you're dealing with one connection instead of eight separate plugs to keep track of during setup and teardown.

This isn't a cable for long stage-to-FOH runs — it's built for the engineer who needs reliable multi-channel connectivity in a compact package. Whether you're connecting a studio interface to a patch bay, running channels from a recorder to outboard processing, or need quick reconfiguration in a mobile setup, it does the job without the cable spaghetti.

Bottom line: If you need 8 channels of balanced audio connectivity over short distances and want to eliminate cable clutter, this snake handles the basics reliably at a reasonable price point.

Technical Specifications

• Model Number: SA-DB8XM5
• Cable Type: 8 Channel Snake
• Connector 1: DB25 Male
• Connector 2: 8x XLR Male
• Cable Length: 5 Feet
• Fantail Length: 18 Inches
• Maximum Gear Separation: 3 Feet
• Warranty: One Year
• Recommended For: Studio interfaces, patch bays, mobile rigs

Frequently Asked Questions

What gear does this snake connect to?

Any DB25-equipped mixer, audio interface, or patch bay to equipment with XLR inputs. Common uses include studio interface to patch bay connections, stage box to mixer runs, or multi-channel recorder to processing gear. The DB25 follows standard pinouts used by most professional audio manufacturers.

Will this work with my specific interface or mixer?

Most professional gear with DB25 connectors uses the same pinout standard, but check your manual to be sure. The XLR male connectors work with any equipment that accepts standard XLR inputs — preamps, processors, recording devices, whatever you're connecting to.

Can I run signals in reverse, from XLR outputs to DB25 input?

Yes, this snake works bidirectionally since it uses standard balanced connections. You can send from XLR outputs on your gear into a DB25 input just fine. The cable doesn't determine signal direction — that's up to your source and destination equipment.

How does this compare to longer snake cables?

This 5-foot length is designed for short rack connections and desktop setups. If your gear is spread across larger distances or you need stage-to-FOH runs, you'll want something longer. The shorter length keeps signal paths clean and reduces potential noise in studio environments.
